DTC P0182, P0183: FTT Sensor: Wiring Diagram

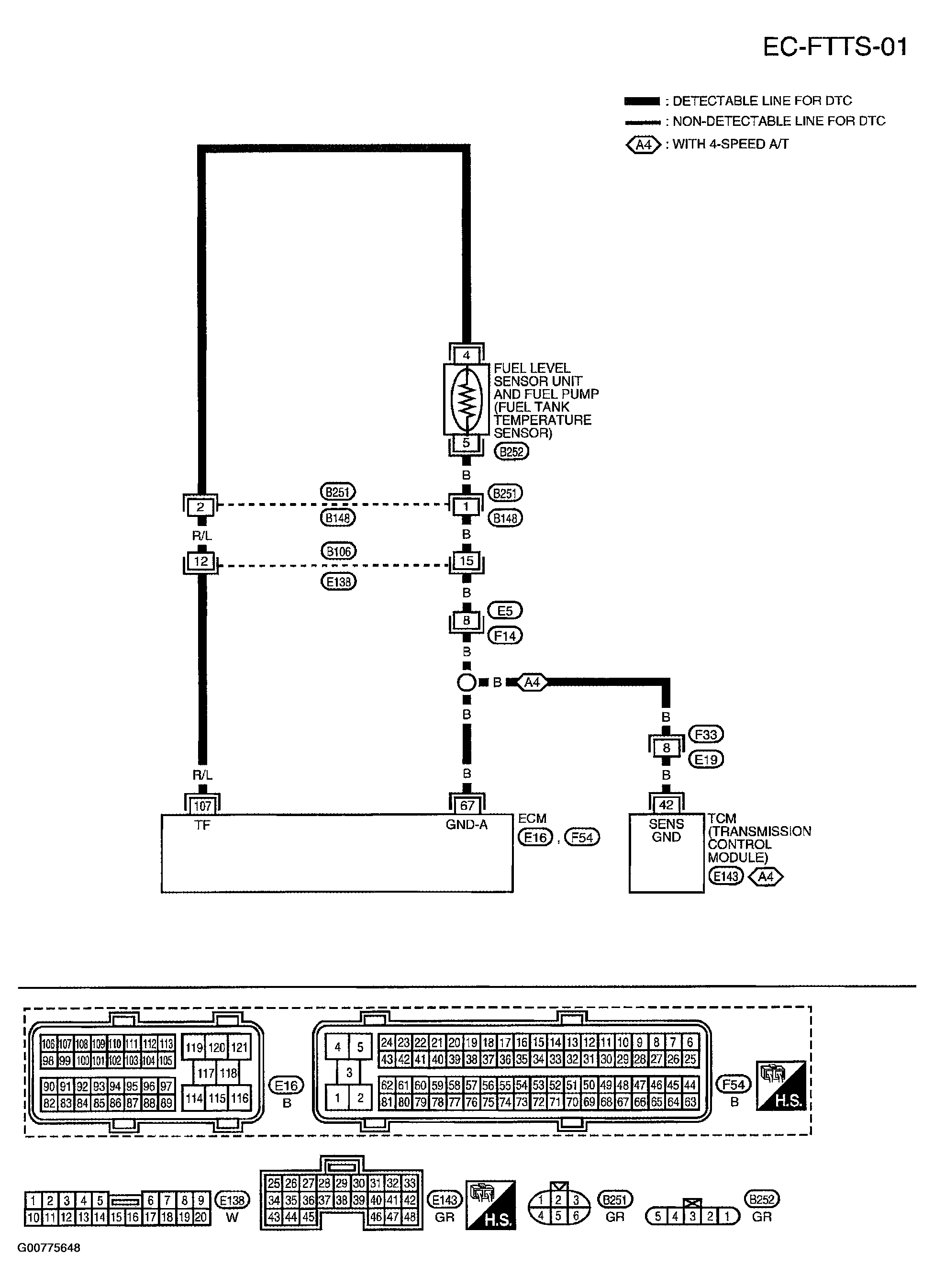

Fig 1: Displaying EC-FTTS-01 Wiring Diagram
G00775648Courtesy of NISSAN MOTOR CO., U.S.A.
