On Board Diagnosis Logic

The MIL will not light up for this self-diagnosis.

Freeze frame data is not stored in the ECM for this self-diagnosis.

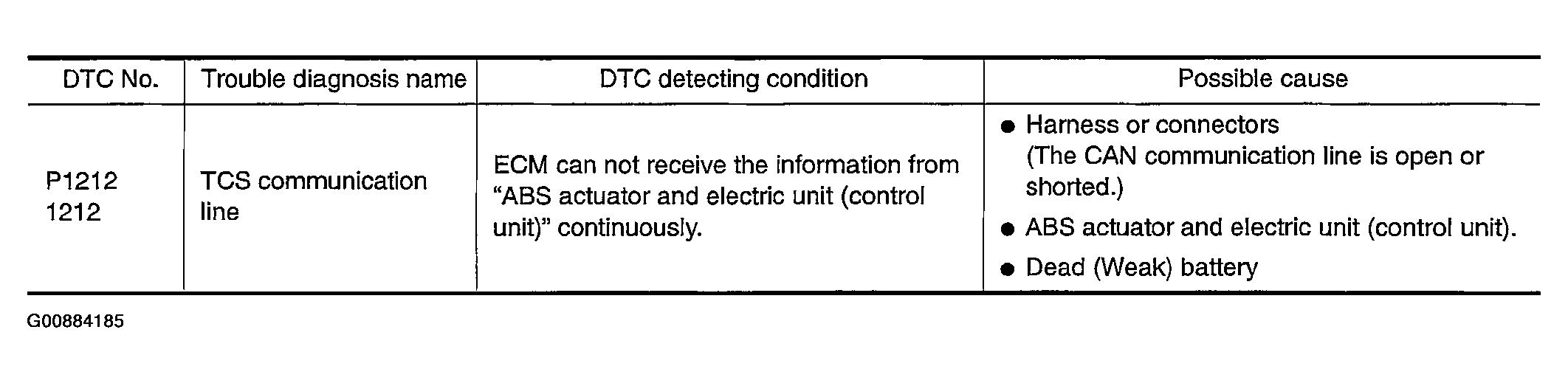

Fig 1: Diagnosis Trouble Code Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
