DTC P1217: Engine Over Temperature
›
Description
›
System Description
›
Cooling Fan Relay Operation
Cooling Fan Relay Operation
The ECM controls cooling fan relays in the IPDM E/R through CAN communication line.

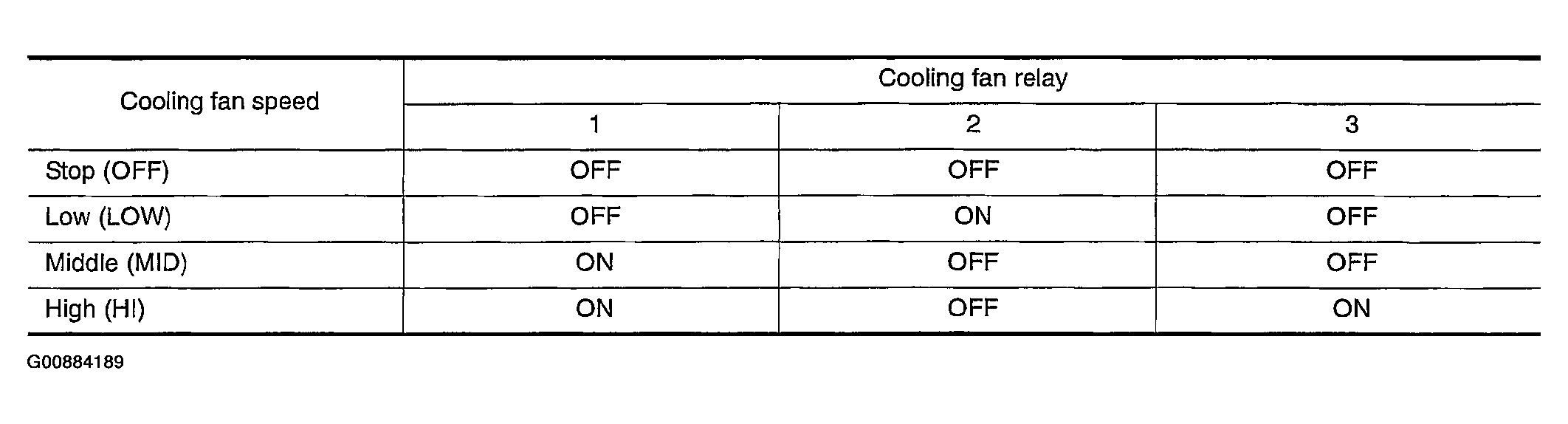

Fig 1: Cooling Fan Speed Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
