Diagnostic Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body. Refer to GROUND INSPECTION  .

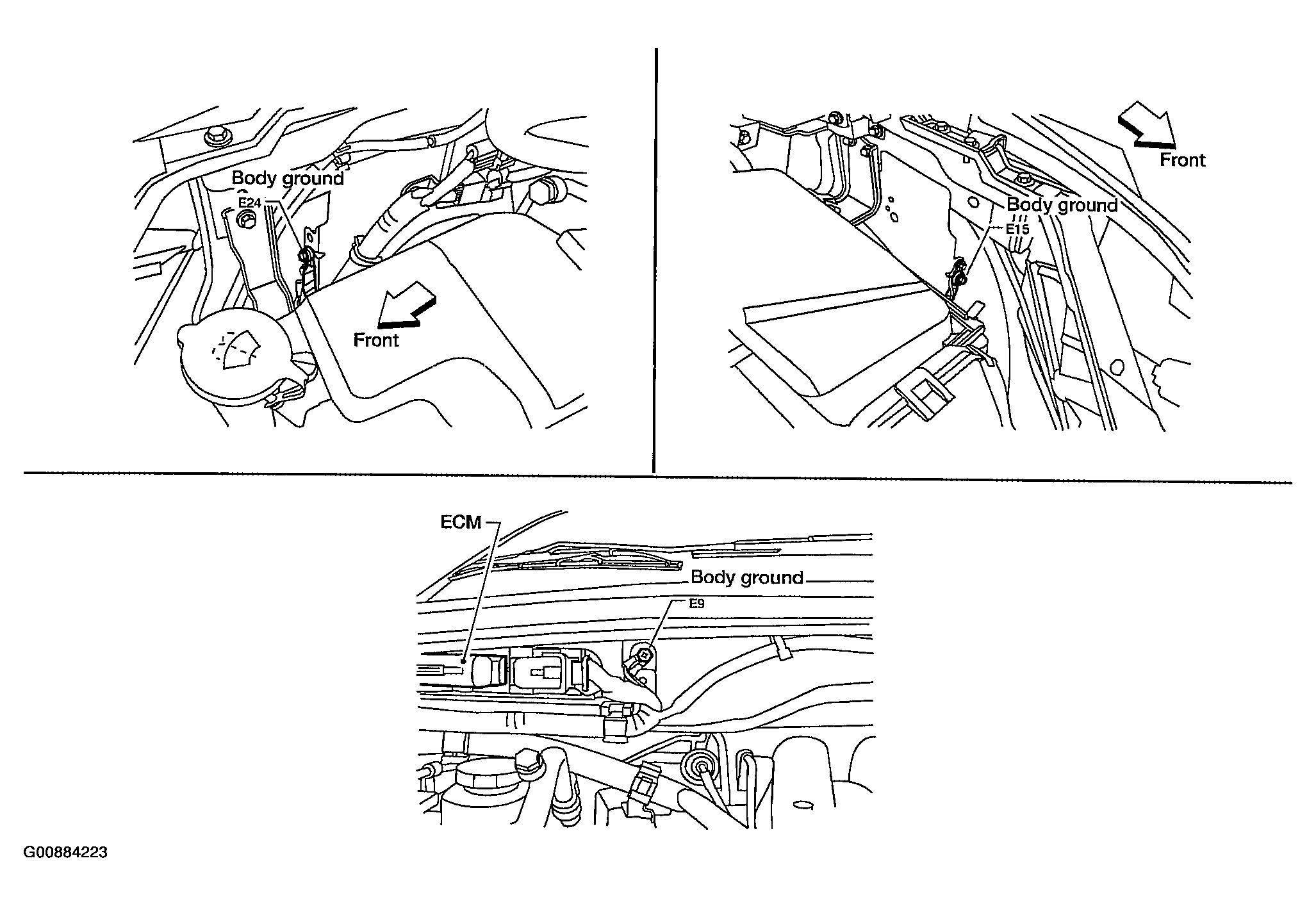

   Fig 1: Loosening And Retighten Ground Three Screws On Body

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 2.
2. NG: Repair or replace ground connections.

1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.

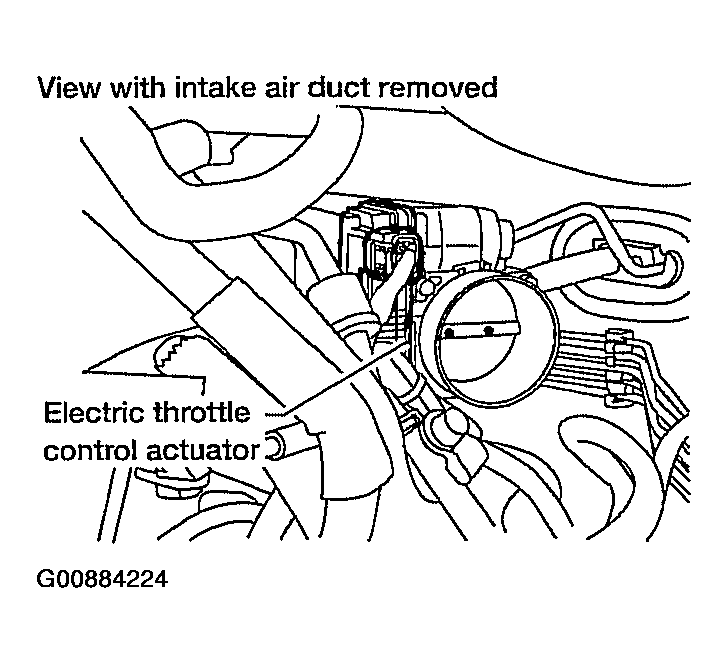

   Fig 2: Disconnecting Electric Throttle Control Actuator Harness Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between electric throttle control actuator terminal 1 and ground with CONSULT-II or tester.
   Fig 3: Check Voltage Between Electric Throttle Control Actuator Terminal 1 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Voltage: Approximately 5V

OK or NG

1. OK: GO TO  4 .
2. NG: GO TO 3.

Check the following.

• Harness for short to power and short to ground between ECM terminal 47 and electric throttle control actuator terminal 1.
• ECM pin terminal.

OK or NG

1. OK: GO TO 4.
2. NG: Repair short to ground or short to power in harness or connectors.

Refer to COMPONENT INSPECTION  .

OK or NG

1. OK: GO TO  6 .
2. NG: GO TO 5.

1. Replace electric throttle control actuator.
2. Perform THROTTLE VALVE CLOSED POSITION LEARNING  .
3. Perform IDLE AIR VOLUME LEARNING  .
   1. INSPECTION END

Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT  ".

1. INSPECTION END
