ASCD Steering Switch

  1. Disconnect combination switch (spiral cable).
  2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.
    Fig 1: Check Continuity Between Terminals 14 And 15
    G00775888Courtesy of NISSAN MOTOR CO., U.S.A.

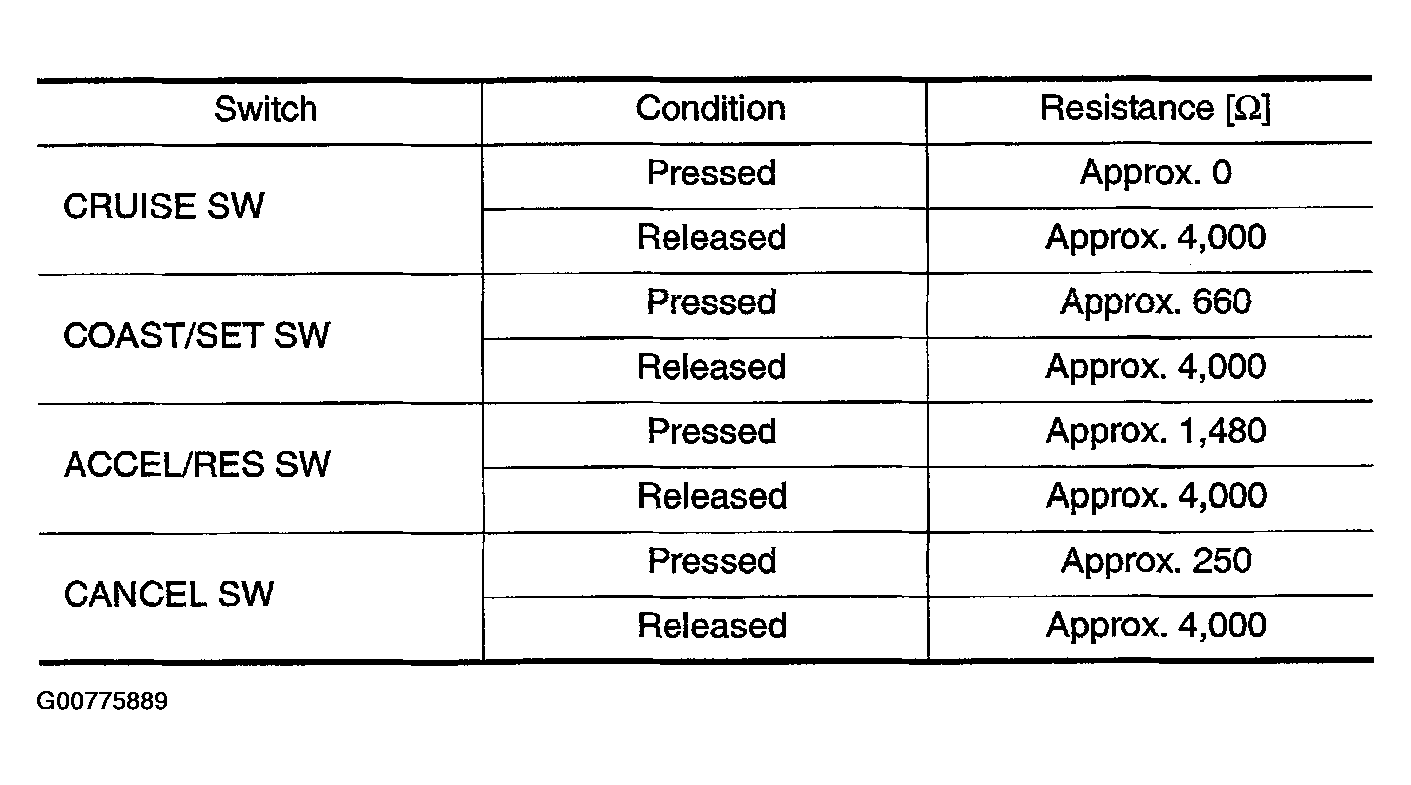

    Fig 2: Displaying Switch Specifications Based On Conditions
    G00775889Courtesy of NISSAN MOTOR CO., U.S.A.
