Mil And Data Link Connector: Wiring Diagram

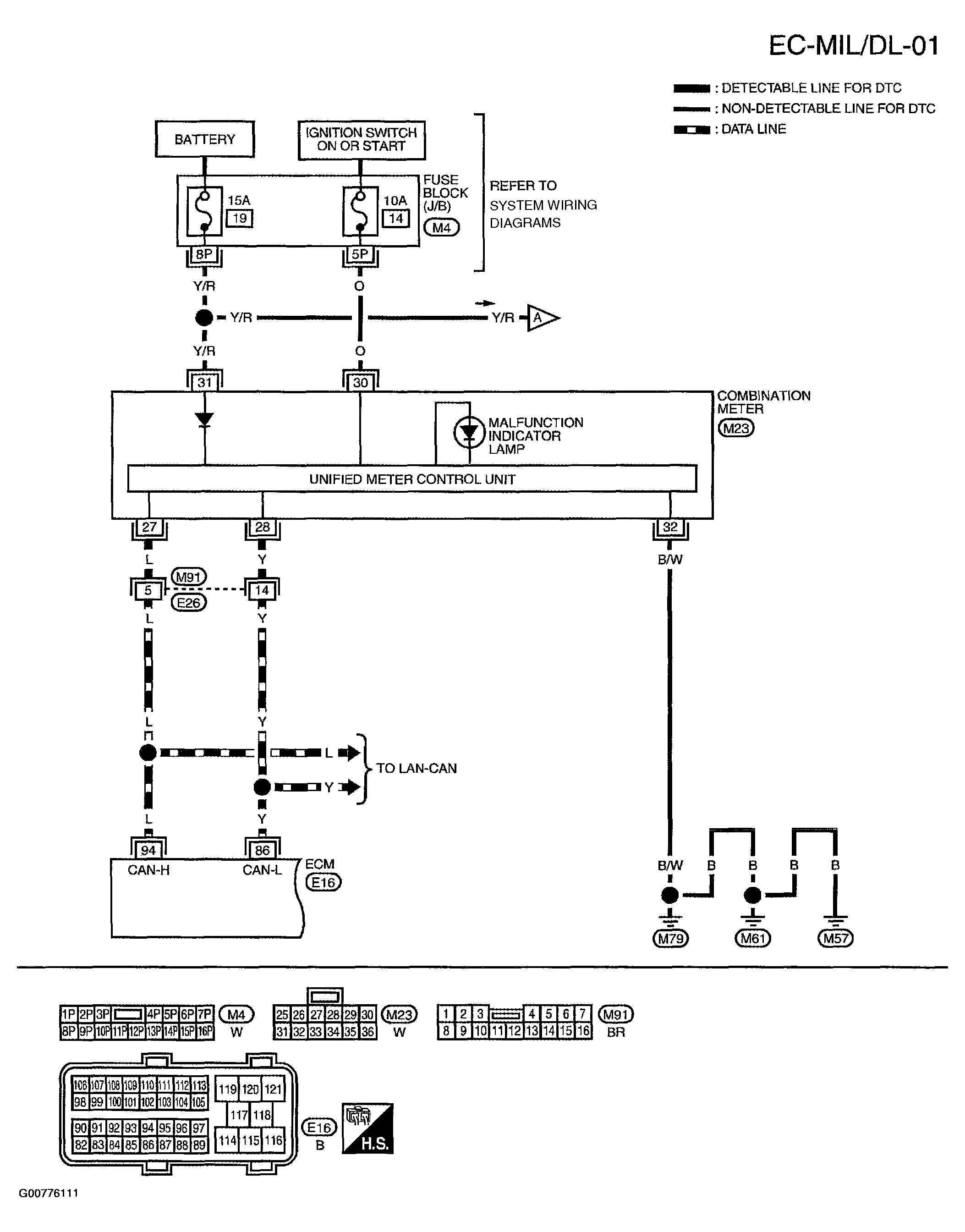

Fig 1: Displaying EC-MIL/DL-01 Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

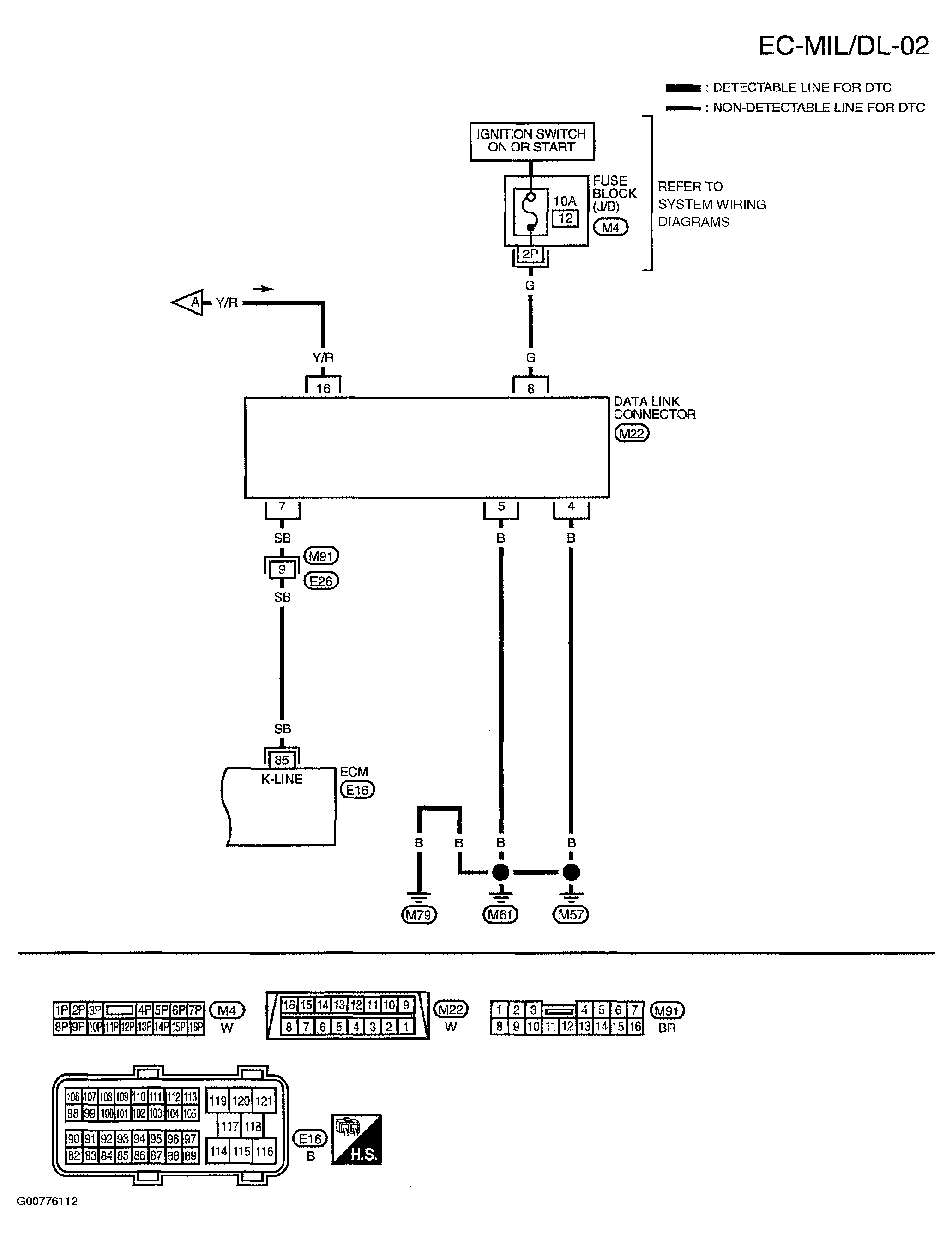

Fig 2: Displaying EC-MIL/DL-02 Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
