Monitored Item

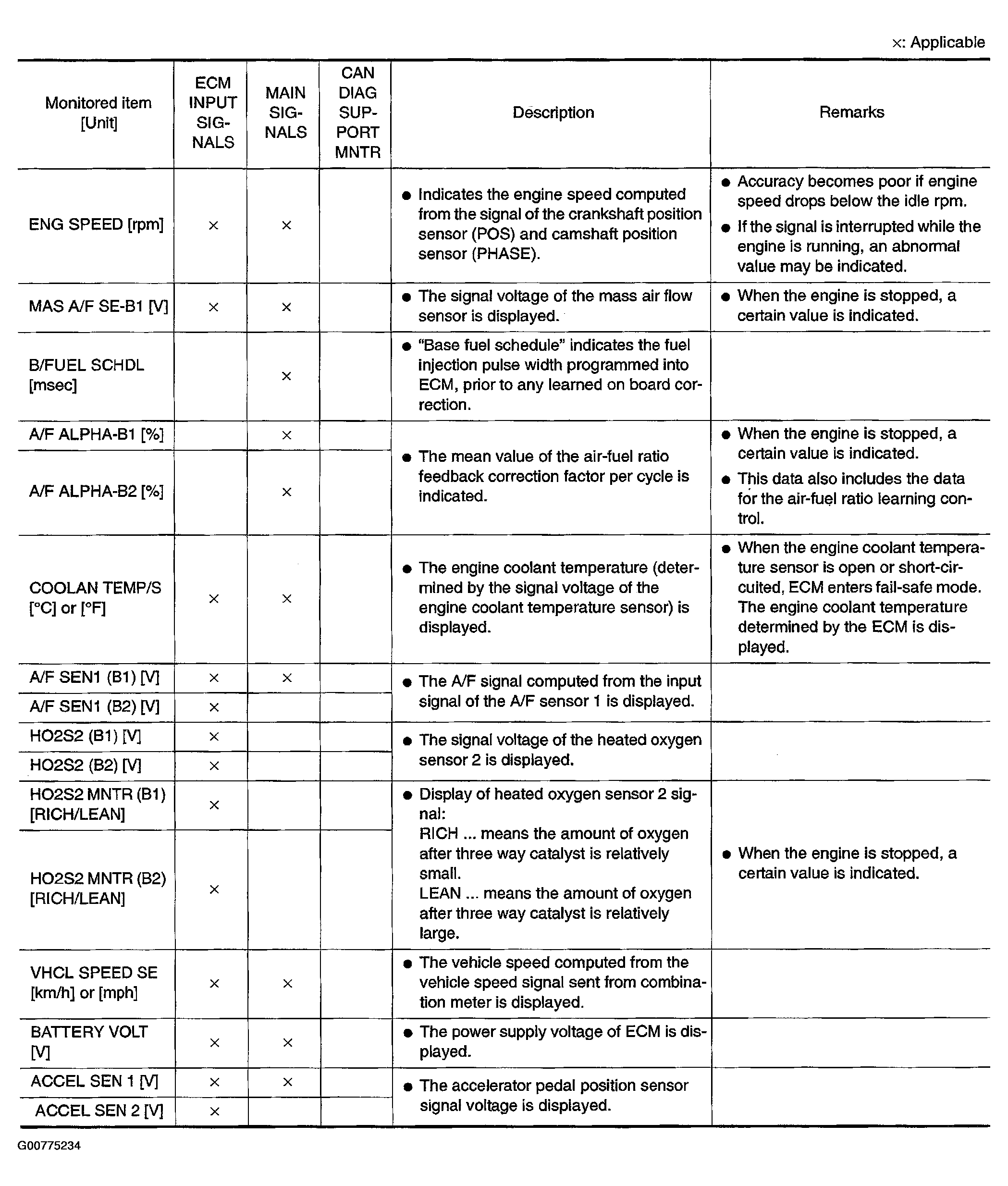

Fig 1: Identifying DATA Monitored Item (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

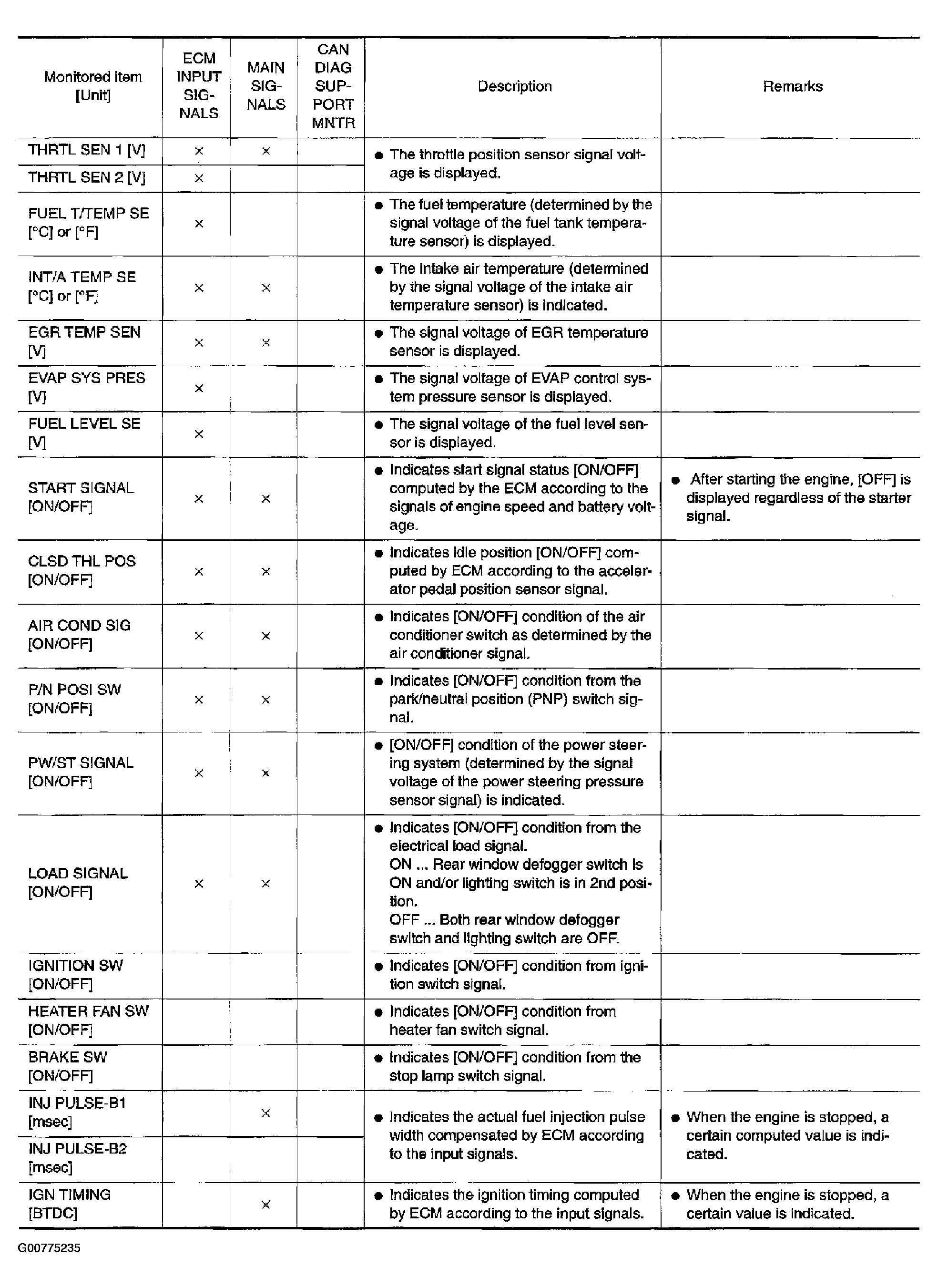

Fig 2: Identifying DATA Monitored Item (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying DATA Monitored Item (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying DATA Monitored Item (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying DATA Monitored Item (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying DATA Monitored Item (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
