System - Engine Mechanical & Other

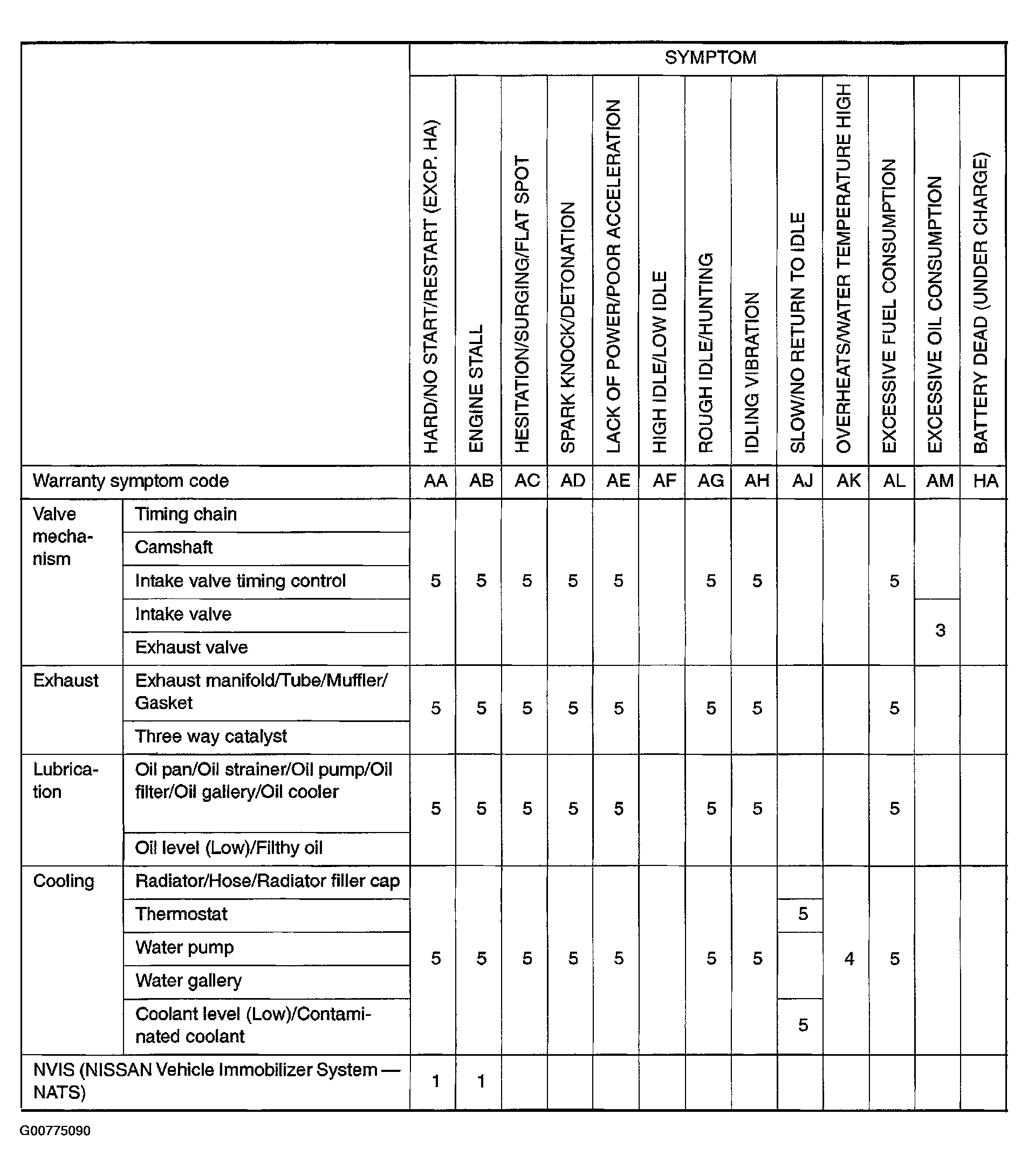

Fig 1: Symptom Matrix Chart (System - Engine Mechanical & Other) (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Symptom Matrix Chart (System - Engine Mechanical & Other) (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
