Terminals and Reference Value for BCM

WARNING: This page is about a different car, the 2004 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

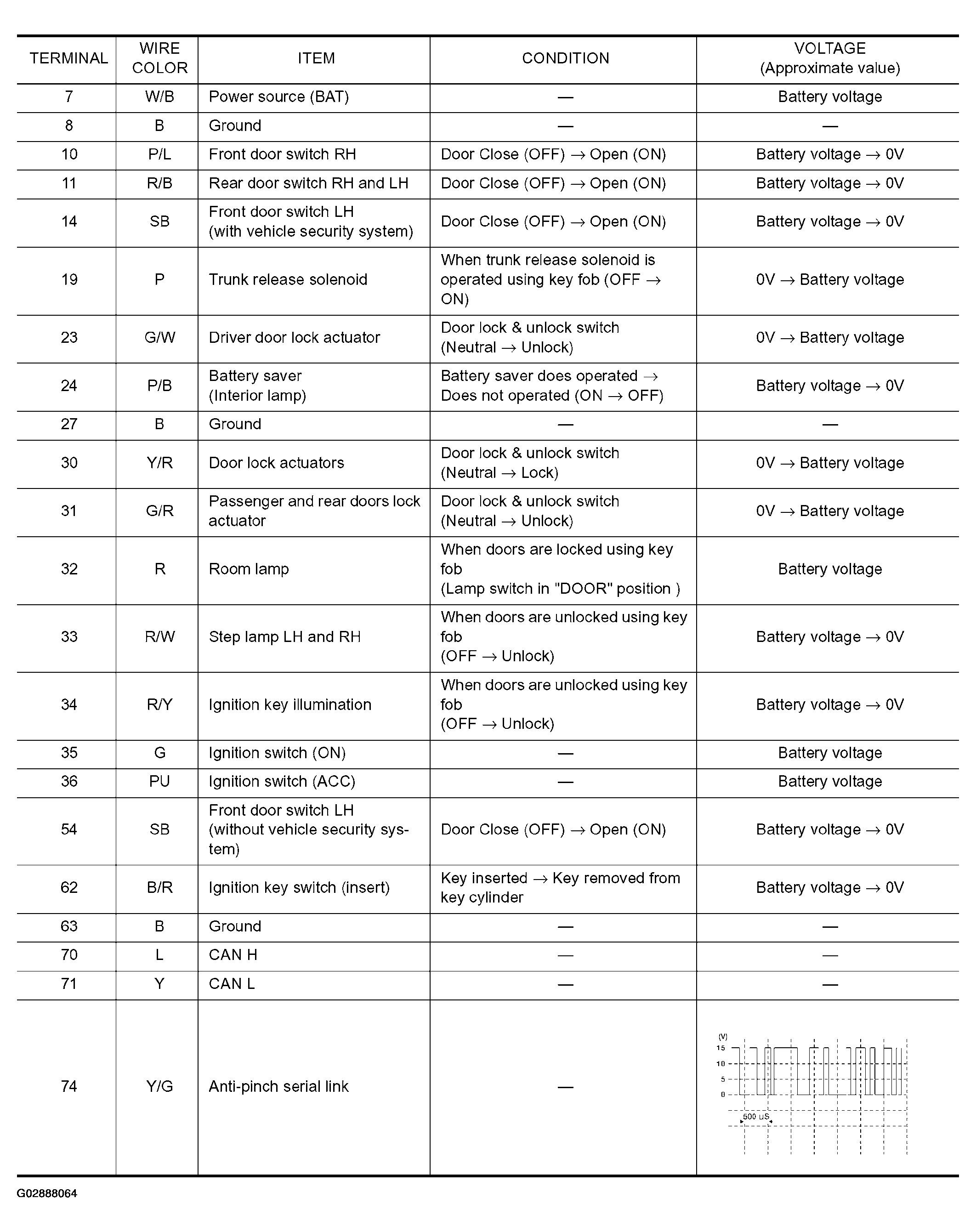

Fig 1: Terminals & Reference Value For BCM Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
