Ignition Timing
›
Method B
Method B
Remove No. 1 ignition coil.
Fig 1: Removing No. 1 Ignition Coil
Courtesy of NISSAN MOTOR CO., U.S.A.

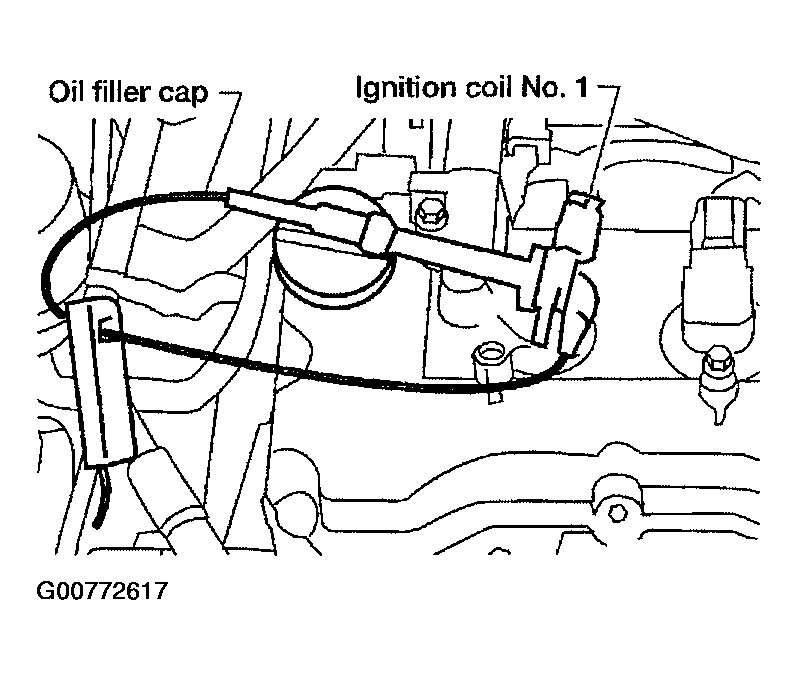

Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

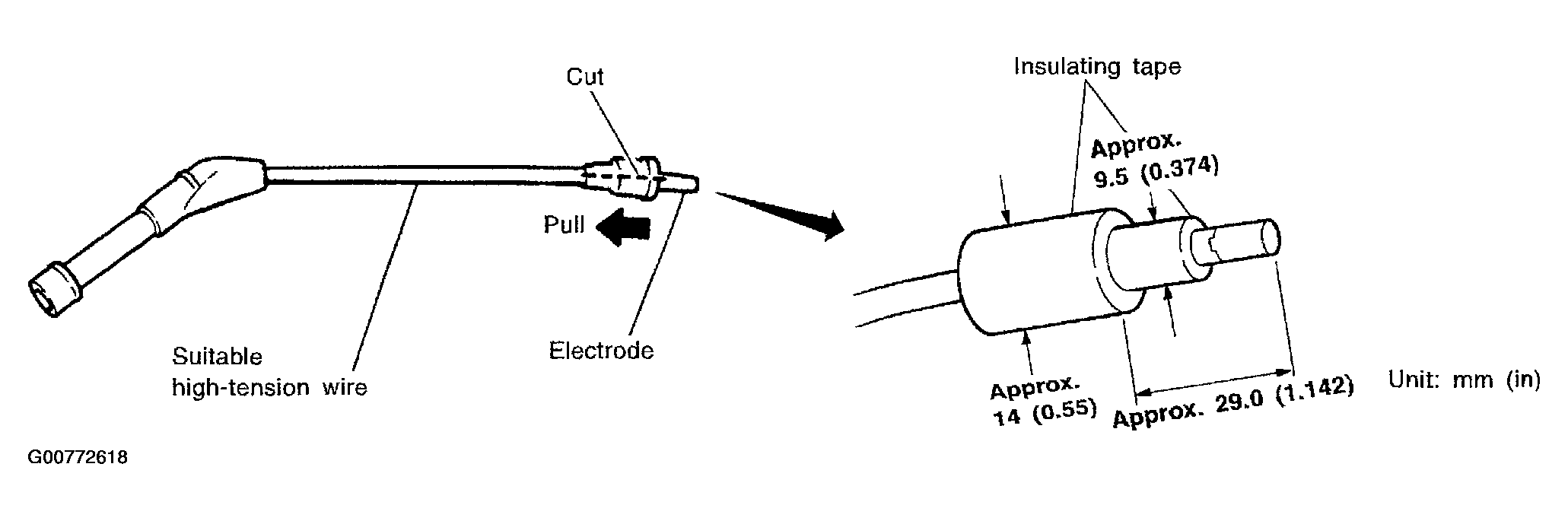

Fig 2: Connecting No. 1 Ignition Coil And No. 1 Spark Plug With Suitable High-Tension
Courtesy of NISSAN MOTOR CO., U.S.A.

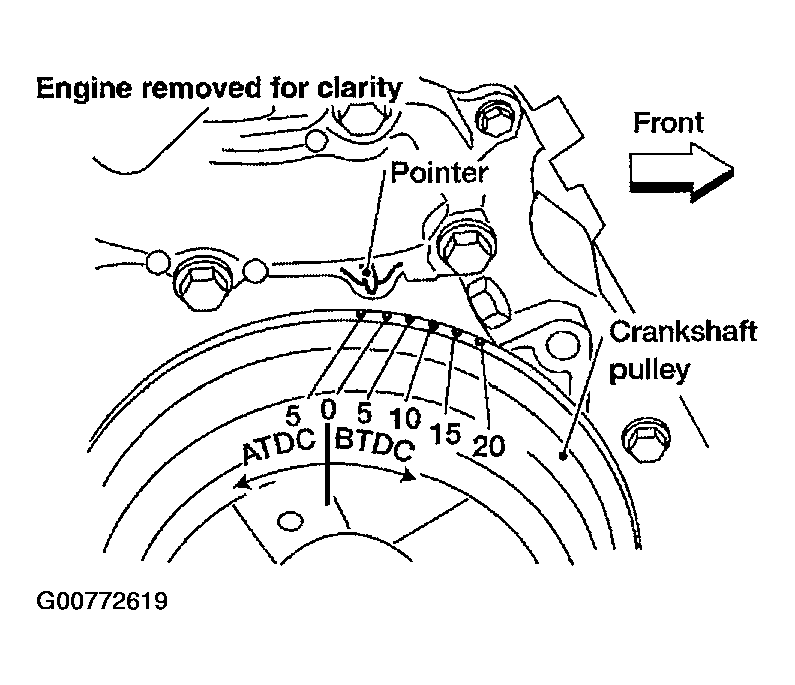

Check ignition timing.
Fig 3: Checking Ignition Timing
Courtesy of NISSAN MOTOR CO., U.S.A.
