Intake Air Temperature Sensor

Check resistance between intake air temperature sensor terminals 3 and 5 under the following conditions.

Fig 1: Terminal Resistance Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

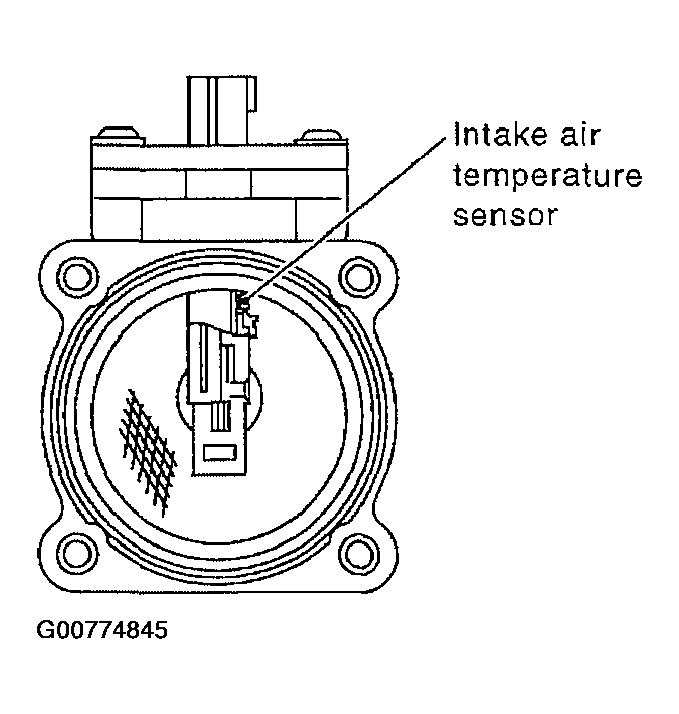

Fig 2: Checking Resistance Between Intake Air Temperature Sensor Terminals 3 And 5 Under
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace mass air flow sensor (with intake air temperature sensor).

Fig 3: Temperature Graph
Courtesy of NISSAN MOTOR CO., U.S.A.
