DTC P0171: Fuel Injection System Function: Wiring Diagram

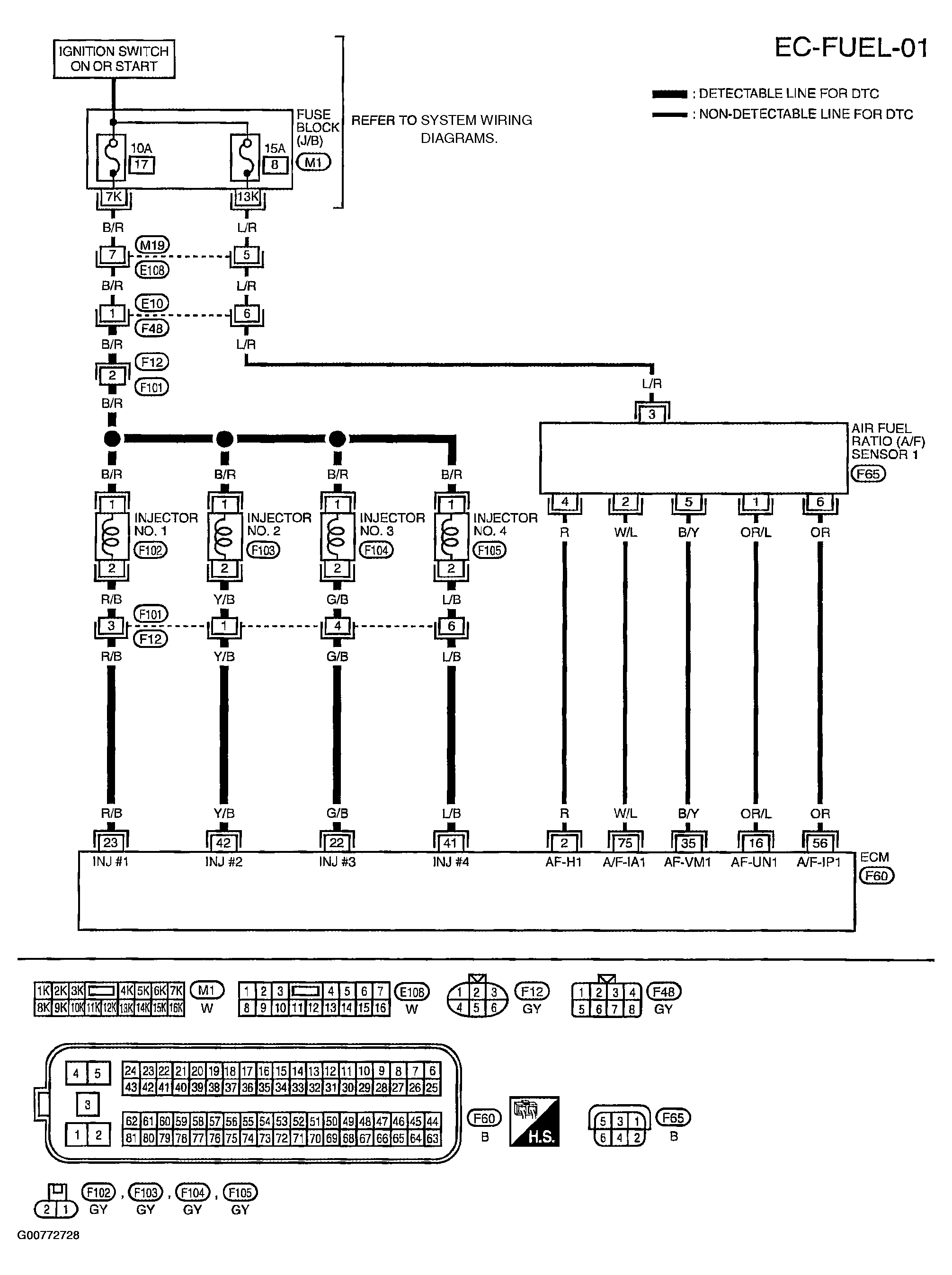

Fig 1: Wiring Diagram (EC-FUEL-01)
G00772728Courtesy of NISSAN MOTOR CO., U.S.A.
