DTC P0181: FTT Sensor: Wiring Diagram

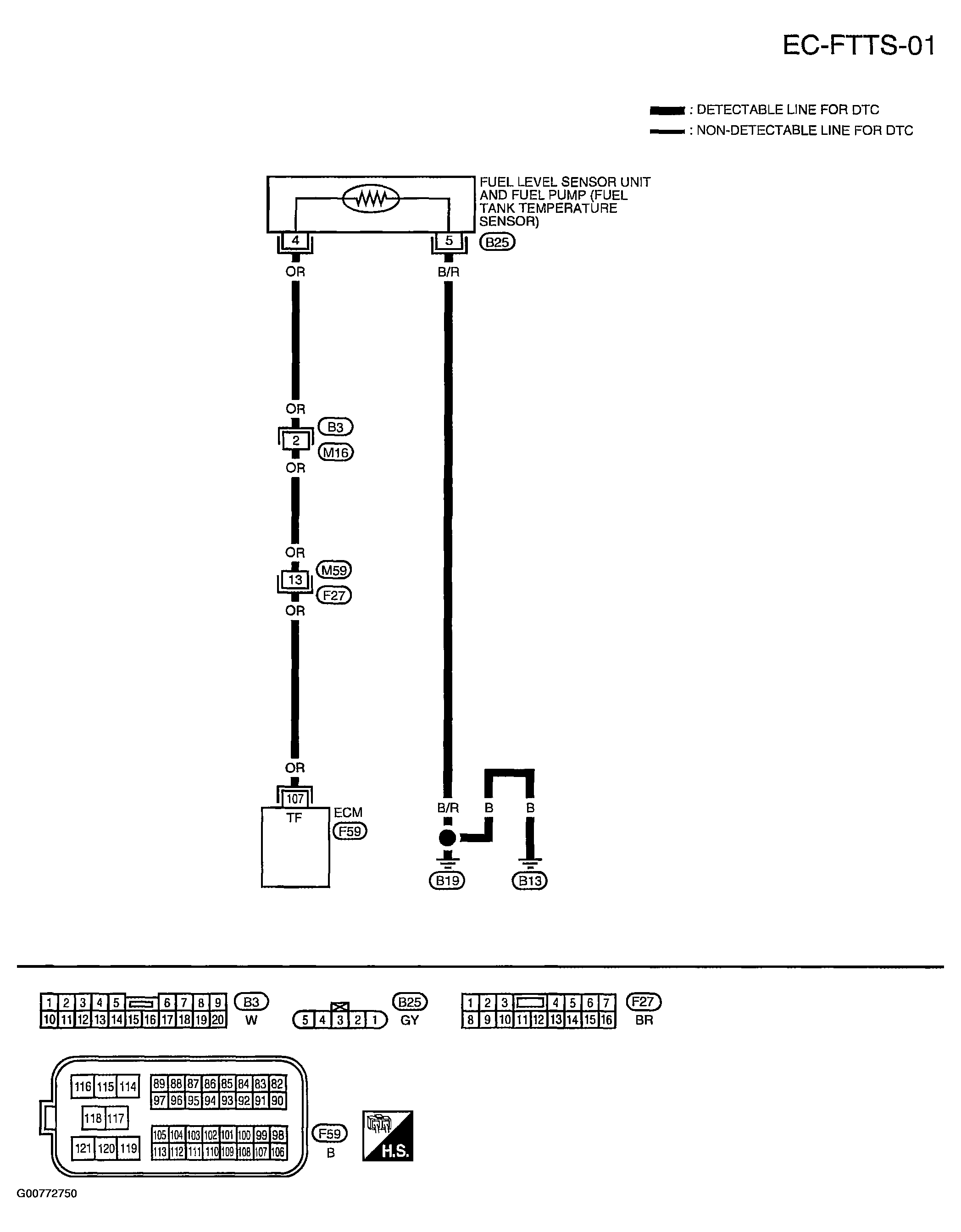

Fig 1: Wiring Diagram (EC-FTTS-01)
G00772750Courtesy of NISSAN MOTOR CO., U.S.A.
