Main 12 Causes of Overheating

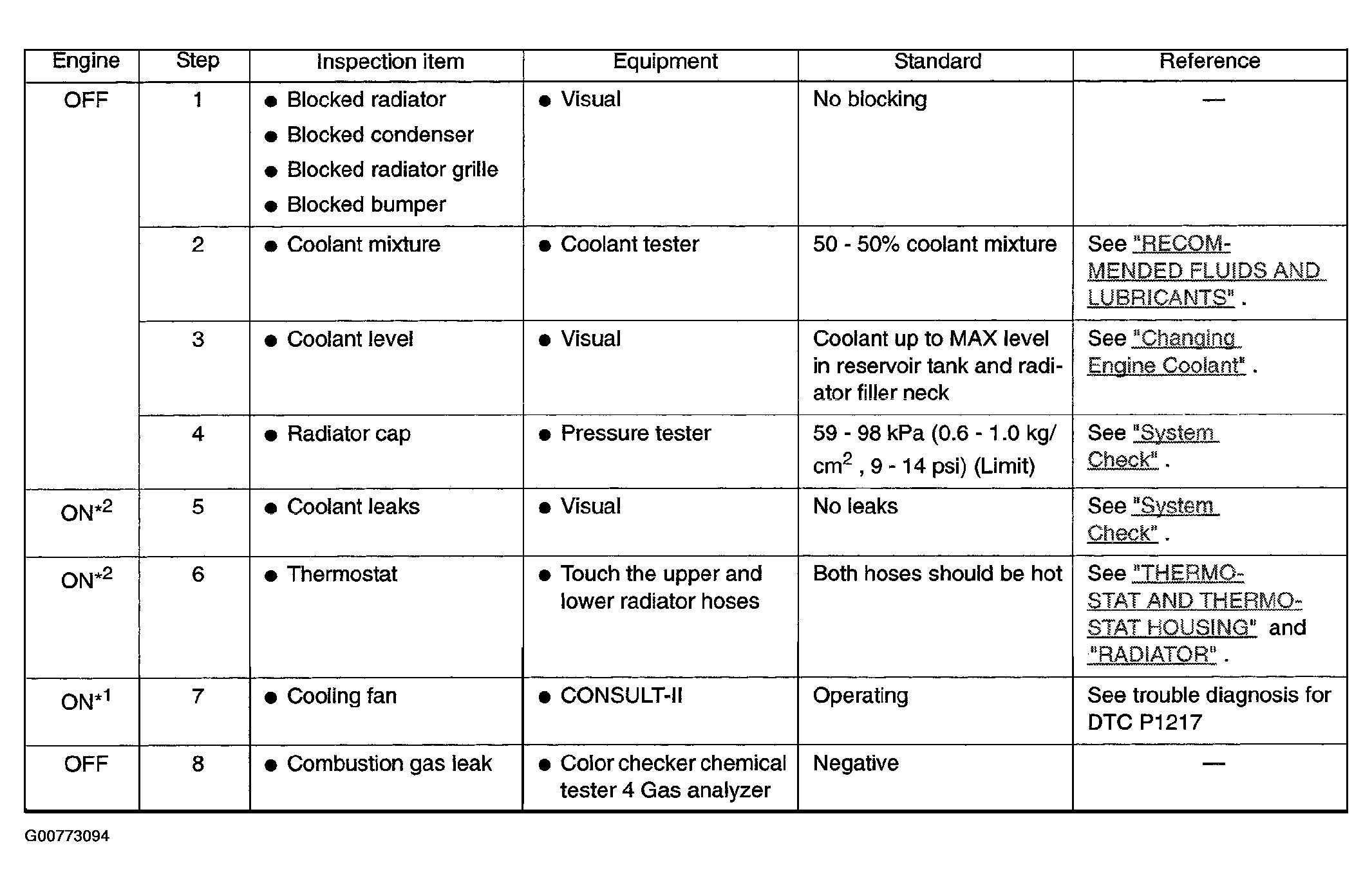

Fig 1: Overheating Causes Reference Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

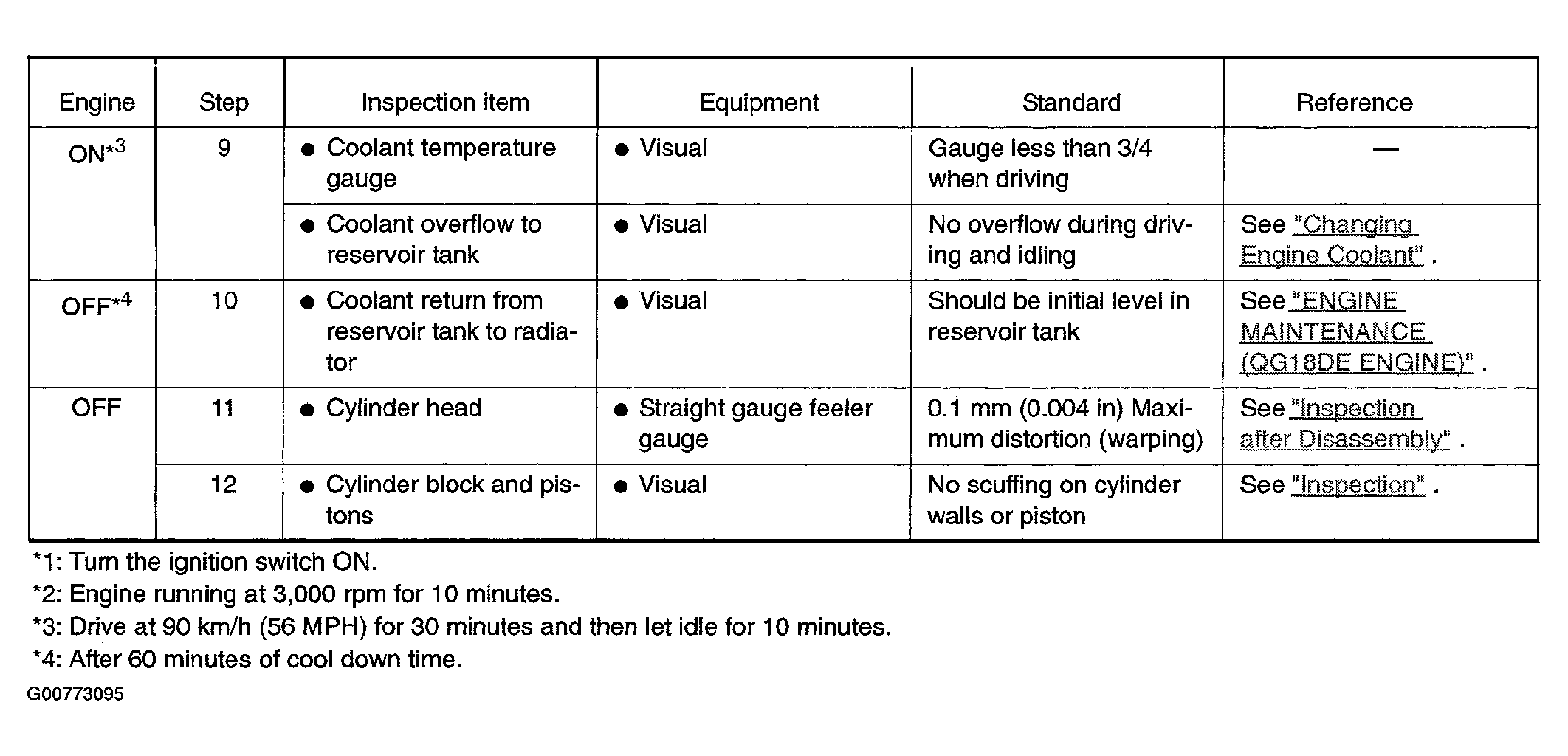

Fig 2: Overheating Causes Reference Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
