Engine Control System - QG18DE
›
Service Data And Specifications (SDS)
›
Mass Air Flow Sensor
Mass Air Flow Sensor

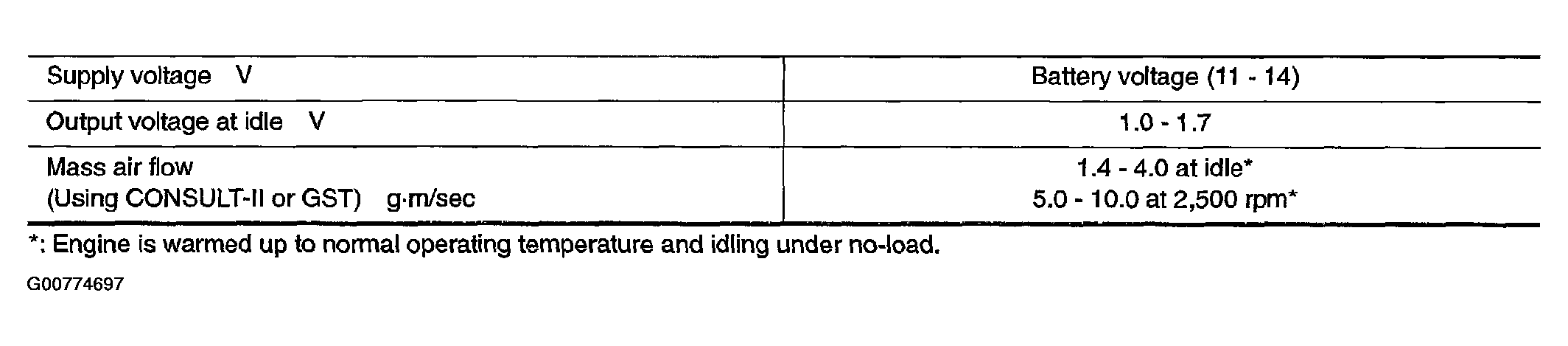

Fig 1: Mass Air Flow Sensor Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
