Engine Control System - QG18DE
›
Trouble Diagnosis
›
CONSULT-II Function
›
Data Monitor Mode
›
Monitored Item
Monitored Item

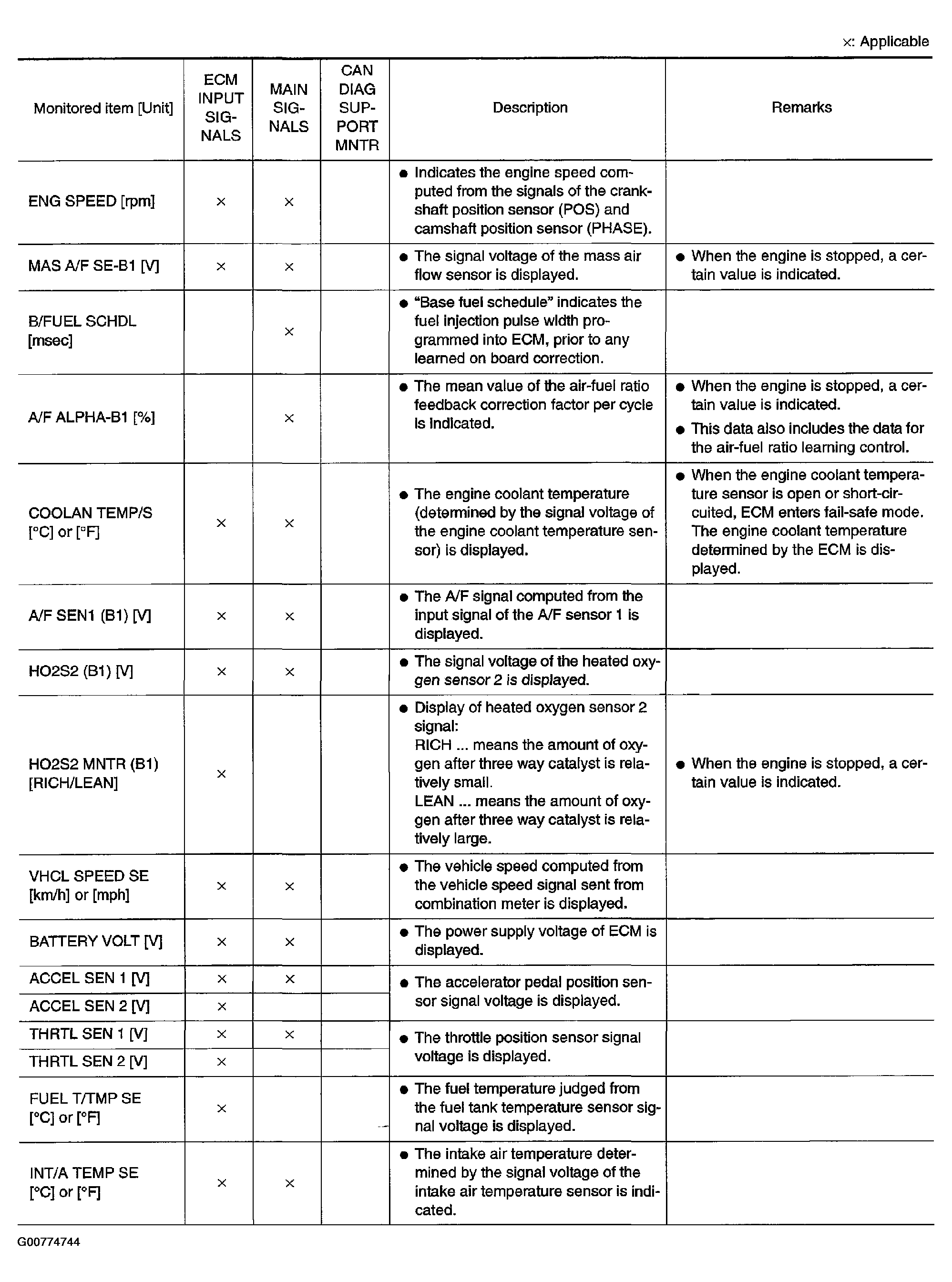

Fig 1: Data Monitor Mode Monitored Item (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

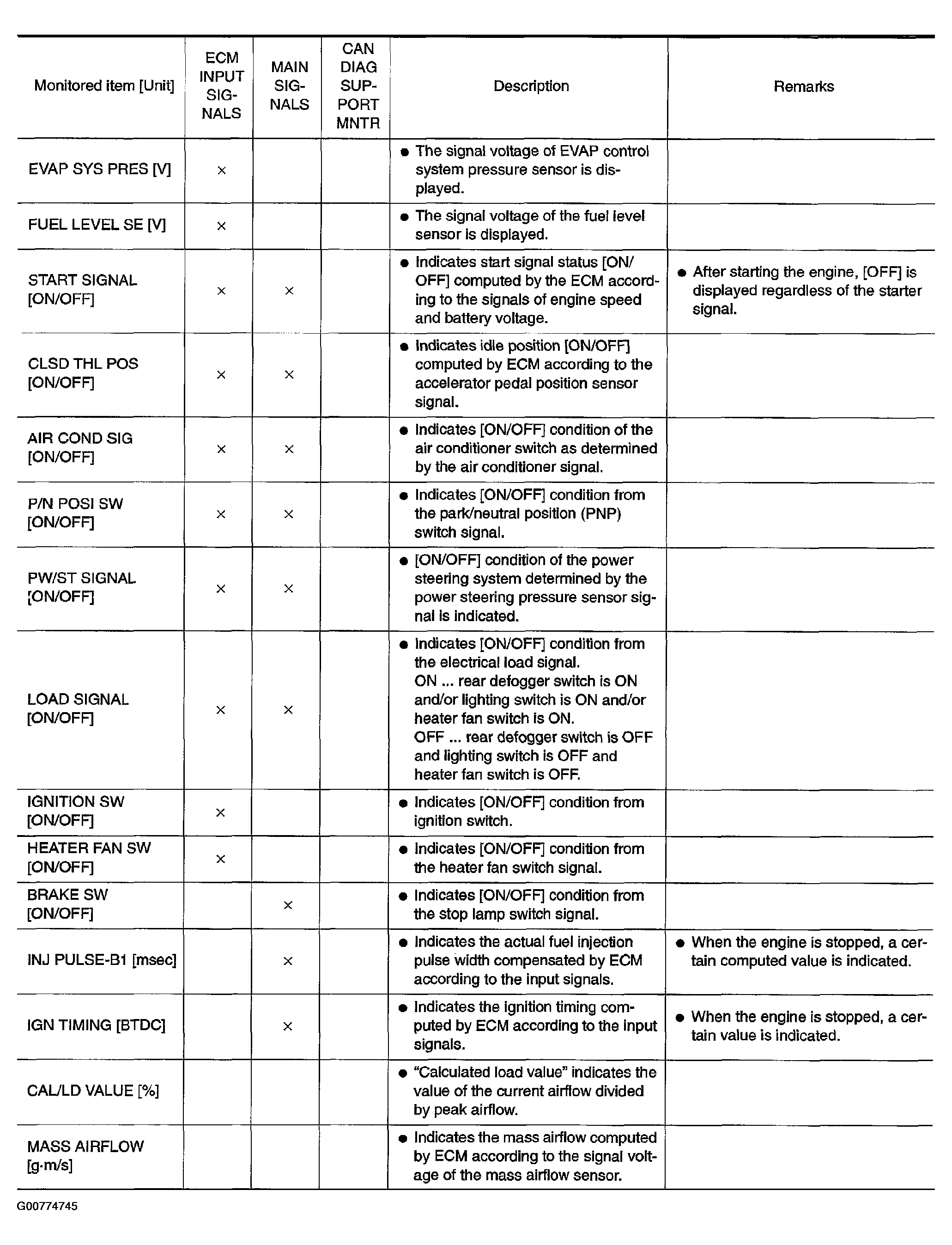

Fig 2: Data Monitor Mode Monitored Item (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

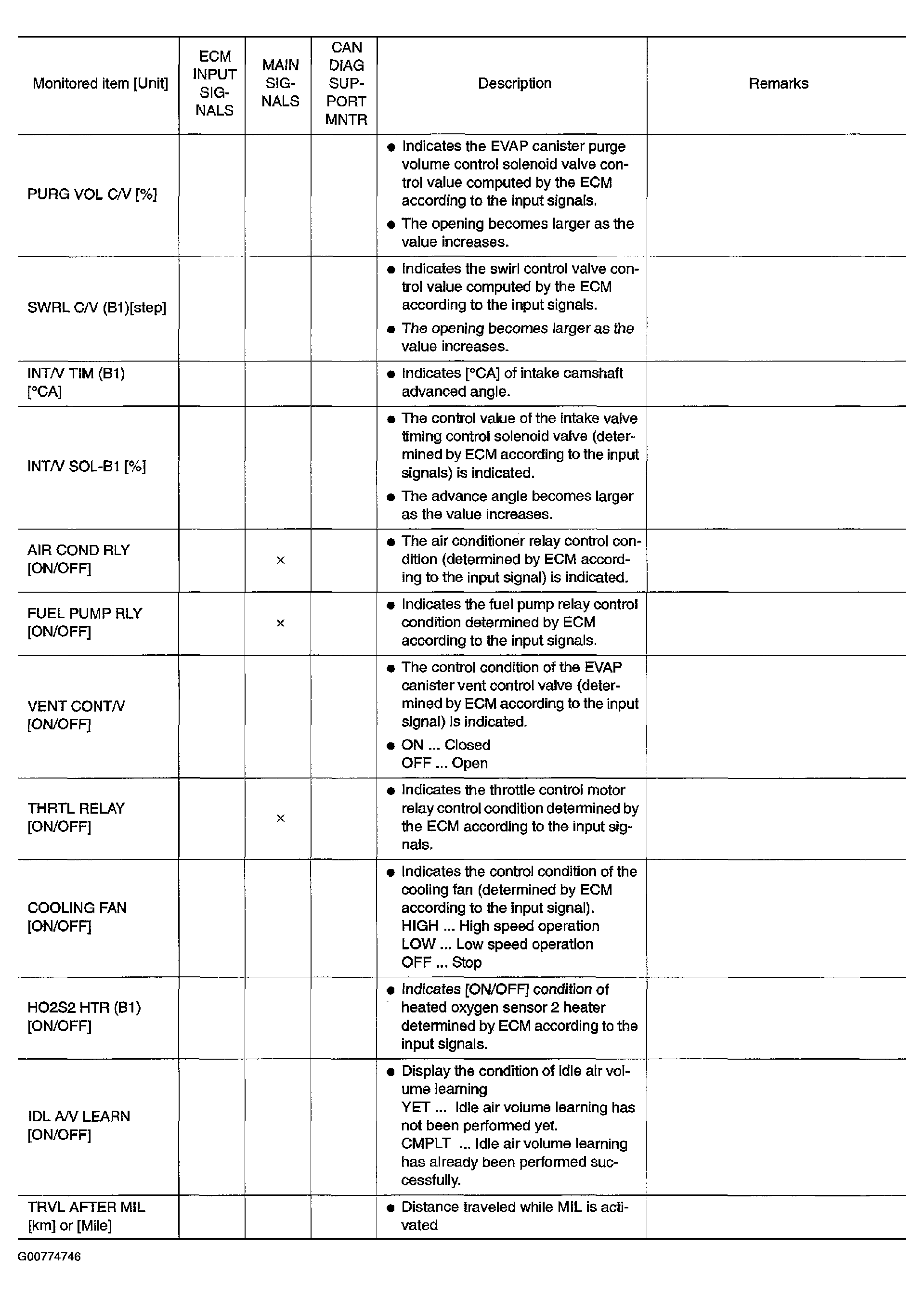

Fig 3: Data Monitor Mode Monitored Item (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

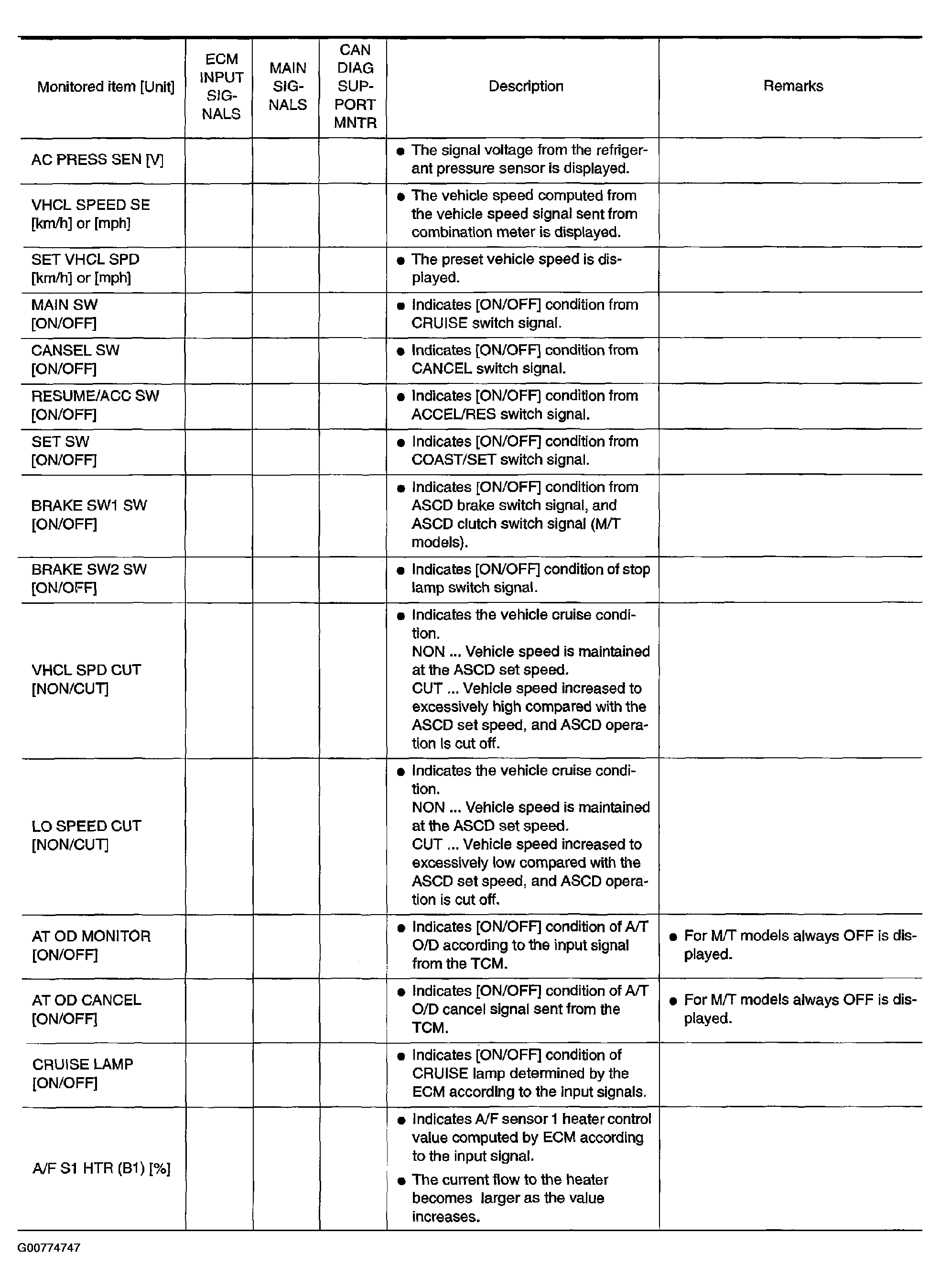

Fig 4: Data Monitor Mode Monitored Item (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

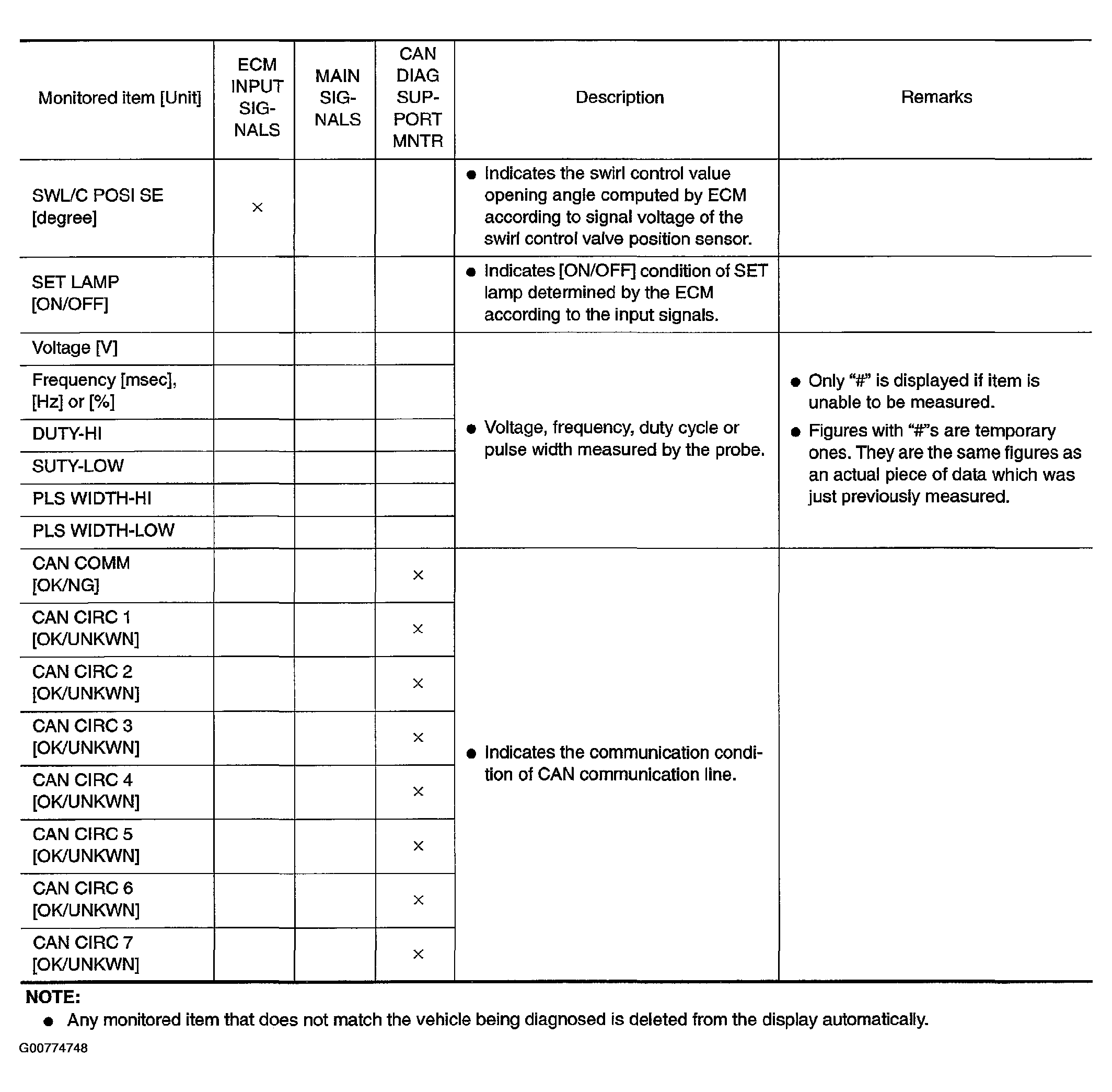

Fig 5: Data Monitor Mode Monitored Item (5 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
