Nissan-Datsun
›
2004
›
Sentra Base, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System - QG18DE
›
Trouble Diagnosis
›
Symptom Matrix Chart
›
System - Engine Control System
System - Engine Control System

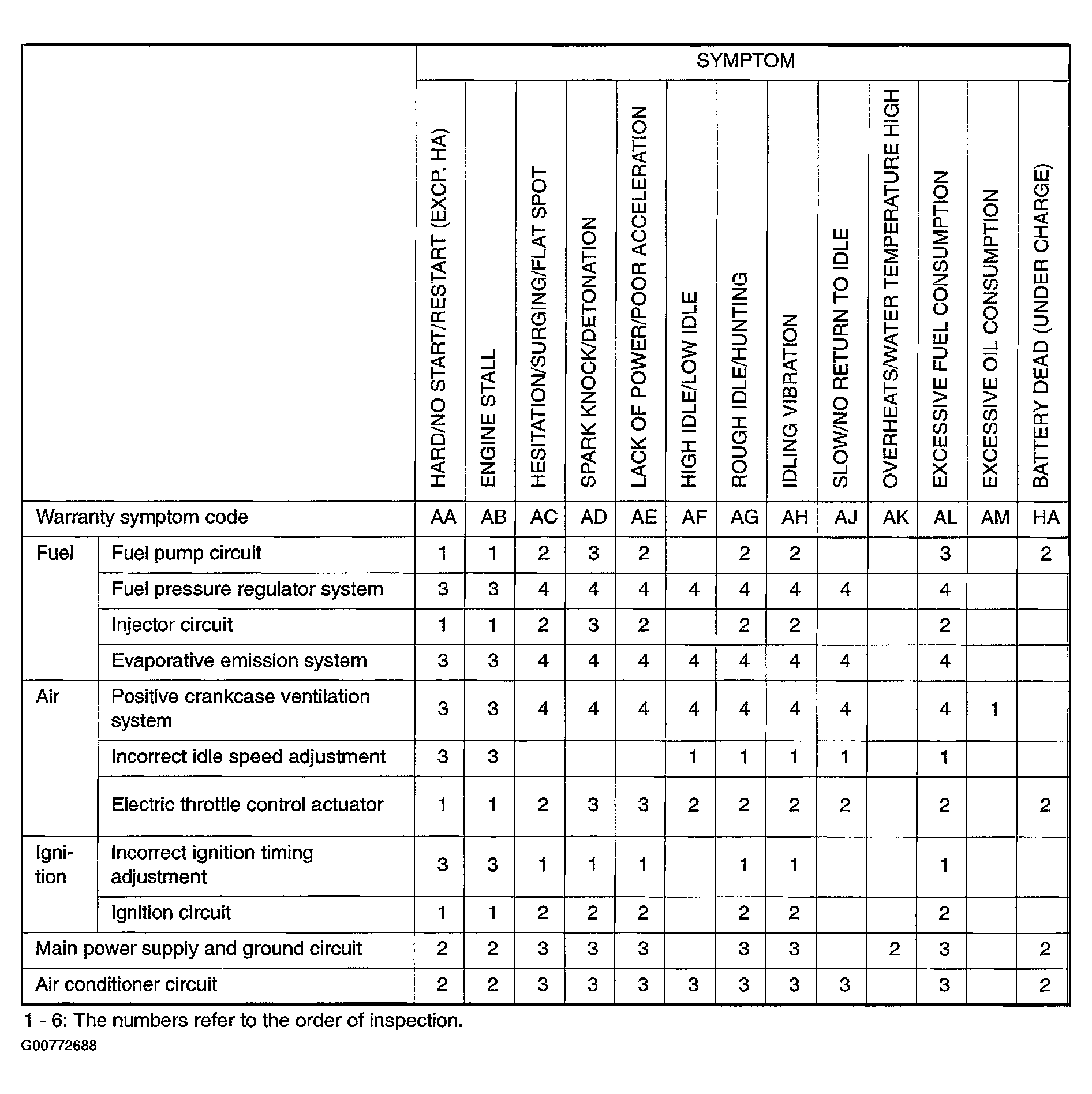

Fig 1: System - Engine Control System Problem Symptom Matrix Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

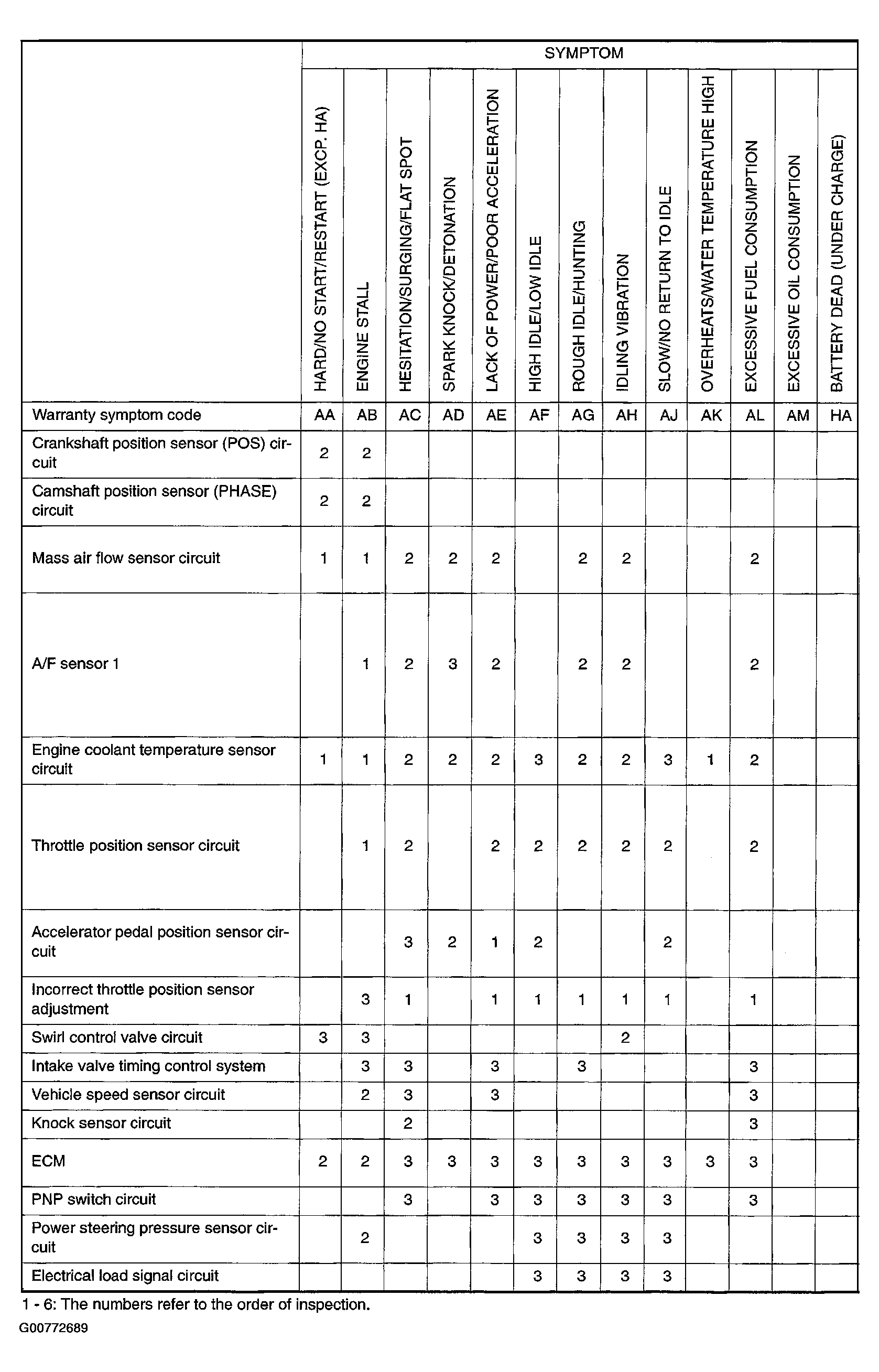

Fig 2: System - Engine Control System Problem Symptom Matrix Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
