Engine Control System - QG18DE
›
Trouble Diagnosis
›
Trouble Diagnosis Introduction
›
Description For Work Flow
Description For Work Flow

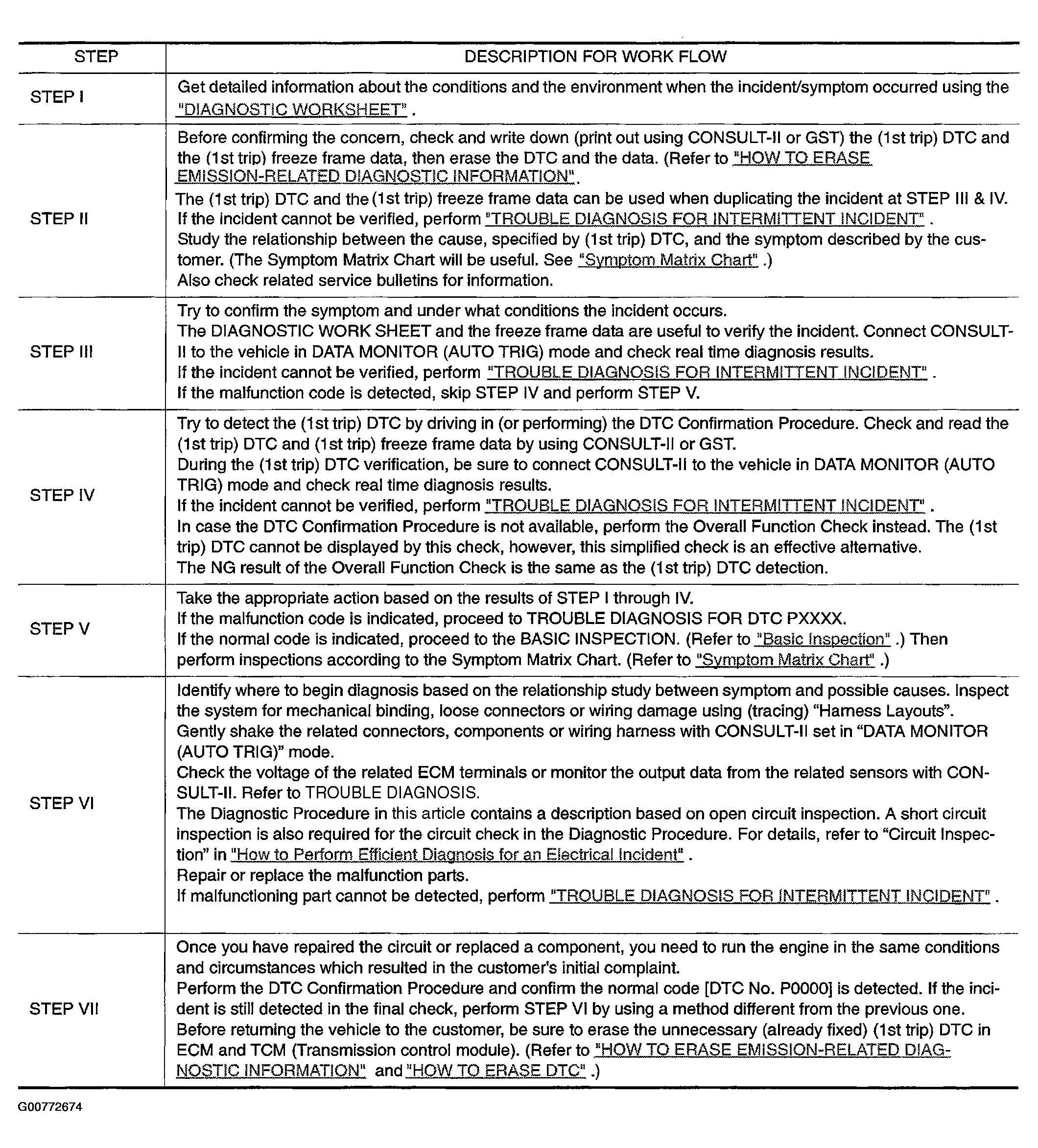

Fig 1: Description For Work Flow
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
