DTC P0182, P0183: FTT Sensor: Wiring Diagram

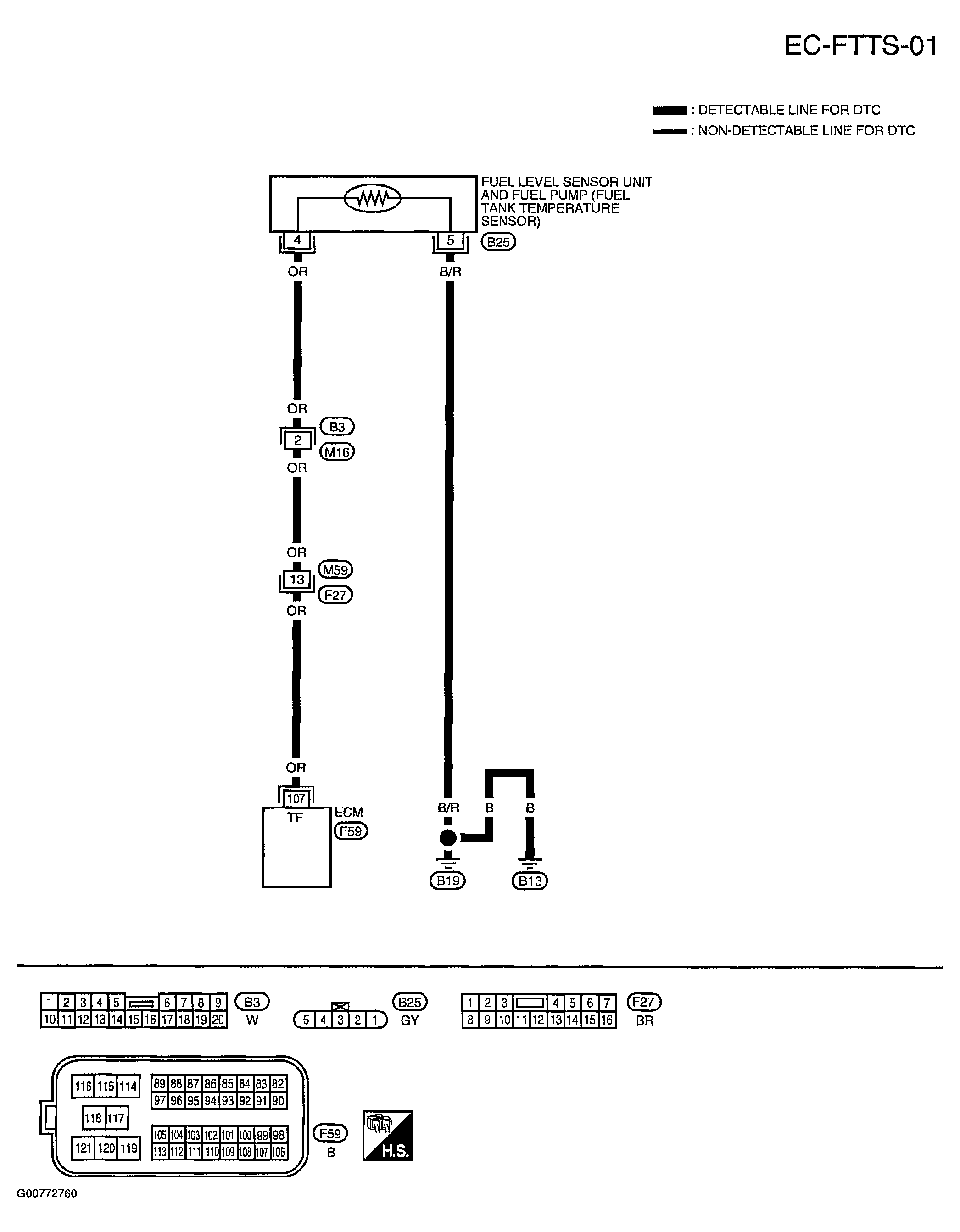

Fig 1: Wiring Diagram (EC-FTTS-01)
G00772760Courtesy of NISSAN MOTOR CO., U.S.A.
