On Board Diagnosis Logic

This self-diagnosis has the one trip detection logic.

The MIL will not light up for this diagnosis.

NOTE: If DTC P1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to PRECAUTIONS

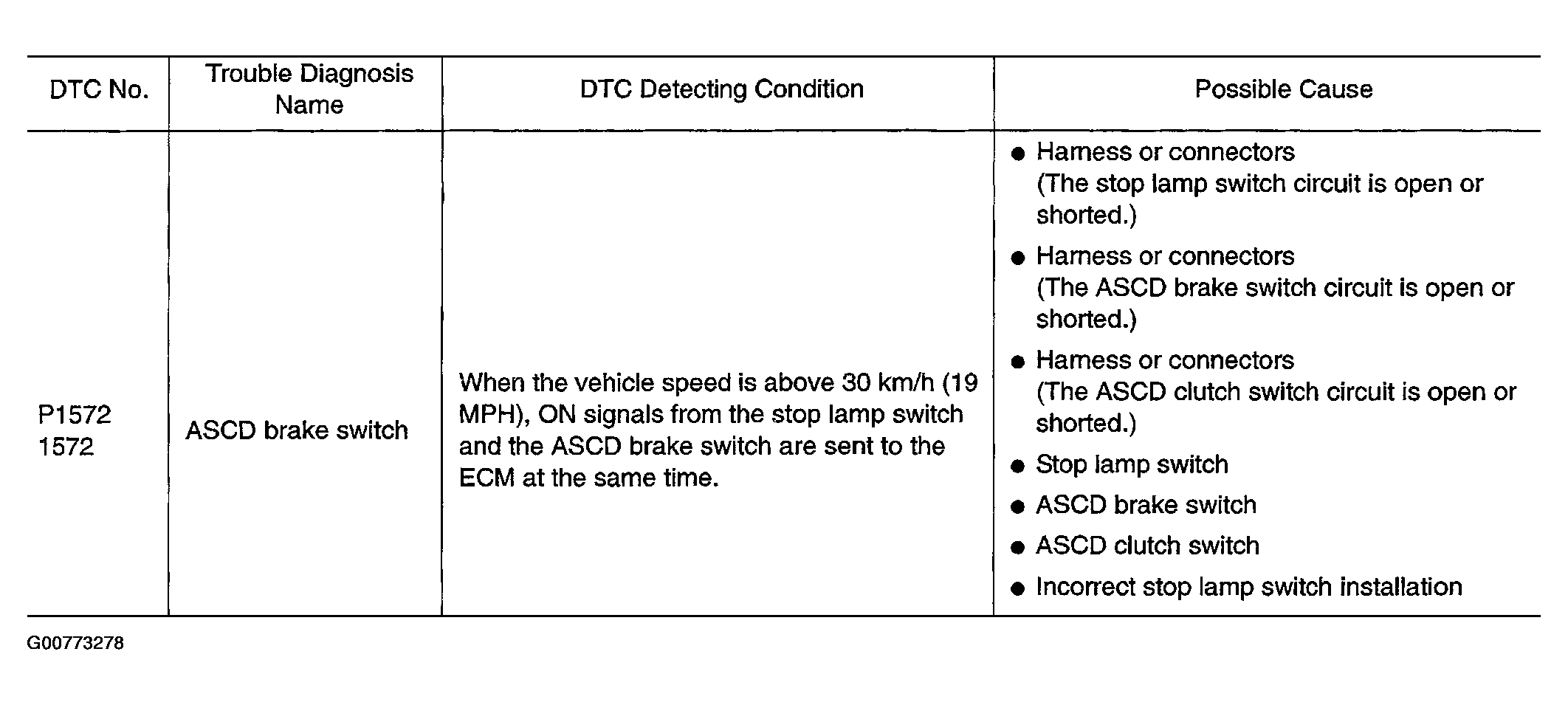

Fig 1: DTC Trouble Detection Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
