Engine Control System - QG18DE
›
Electrical Load Signal
›
Wiring Diagram
›
SULEV Models
SULEV Models

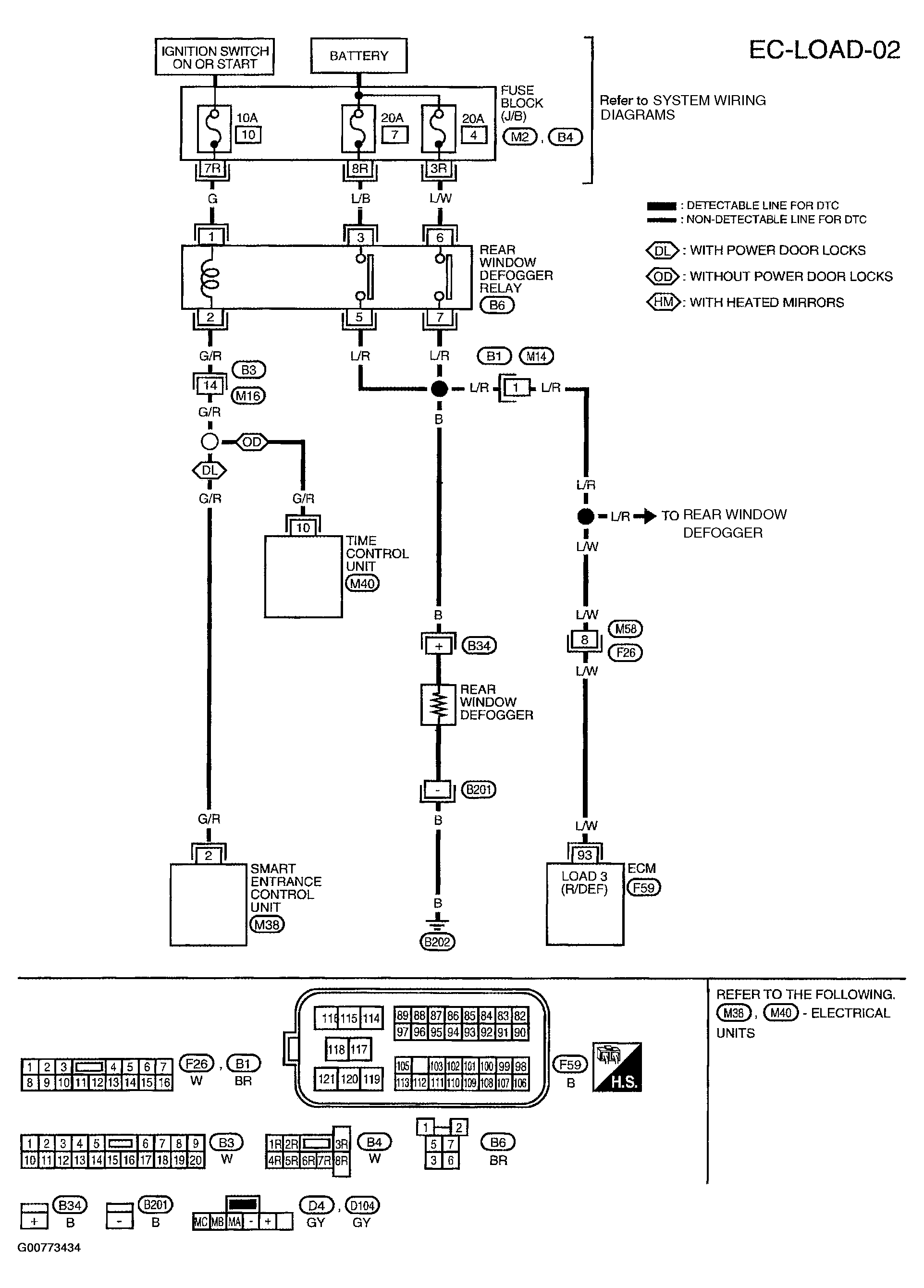

Fig 1: Wiring Diagram - Electrical Load Signal (SULEV Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 1: Wiring Diagram - Electrical Load Signal (SULEV Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
