GST Inspection Procedure

Turn ignition switch OFF.
Connect GST to data link connector for GST which is located under LH dash panel near the fuse box cover.

Fig 1: Connecting GST To Data Link Connector For GST Under LH Dash Panel Near Fuse Box Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Enter the program according to instruction on the screen or in the operation manual.
(*: Regarding GST screens in this article, sample screens are shown.)

Fig 2: Display GST Screens
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic mode according to each service procedure.
For further information, see the GST Operation Manual of the tool maker.

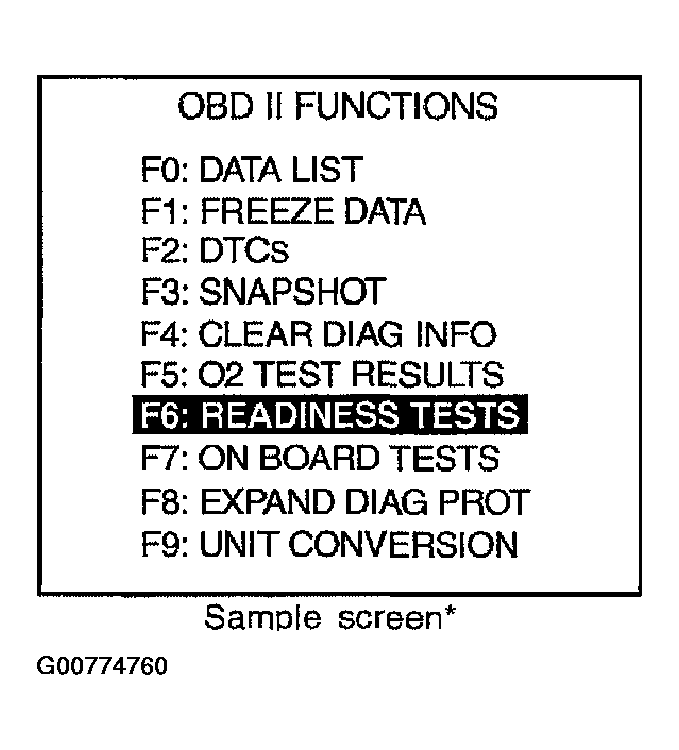

Fig 3: OBS II Functions Display
Courtesy of NISSAN MOTOR CO., U.S.A.
