Description
›
System Description
›
ABS Actuator Operation
ABS Actuator Operation

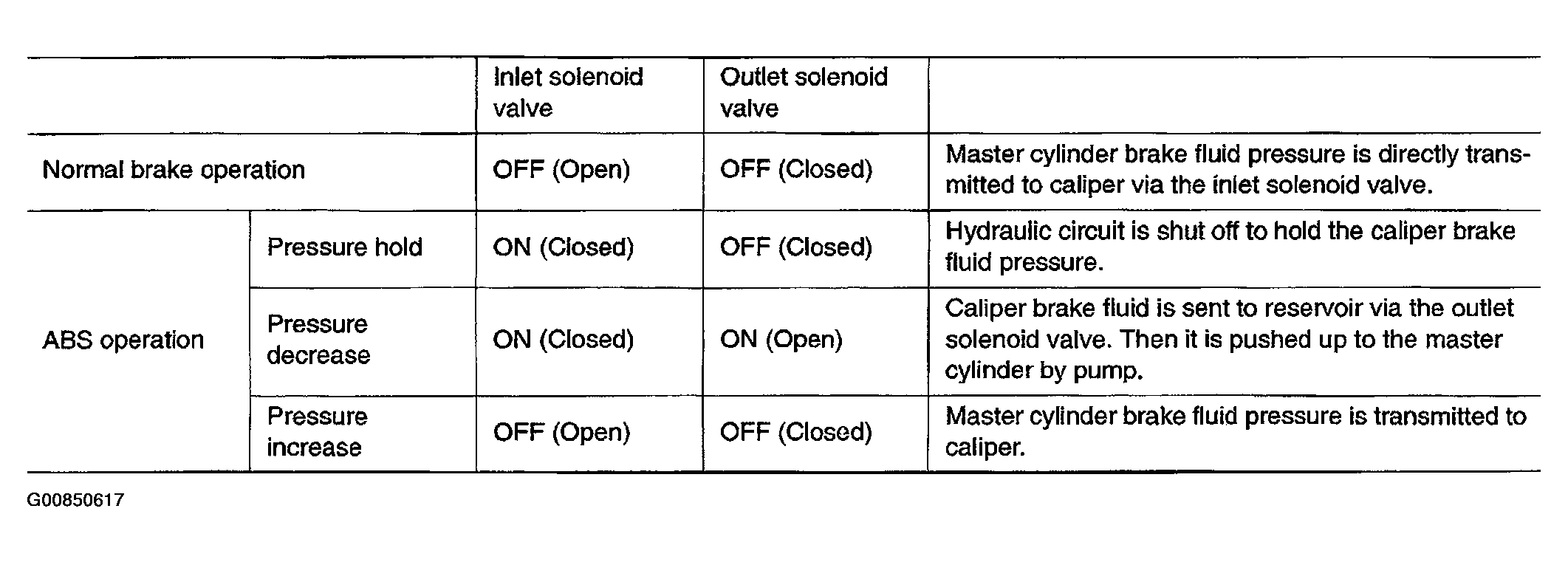

Fig 1: Identifying ABS Actuator Operation
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
