Active Test Mode

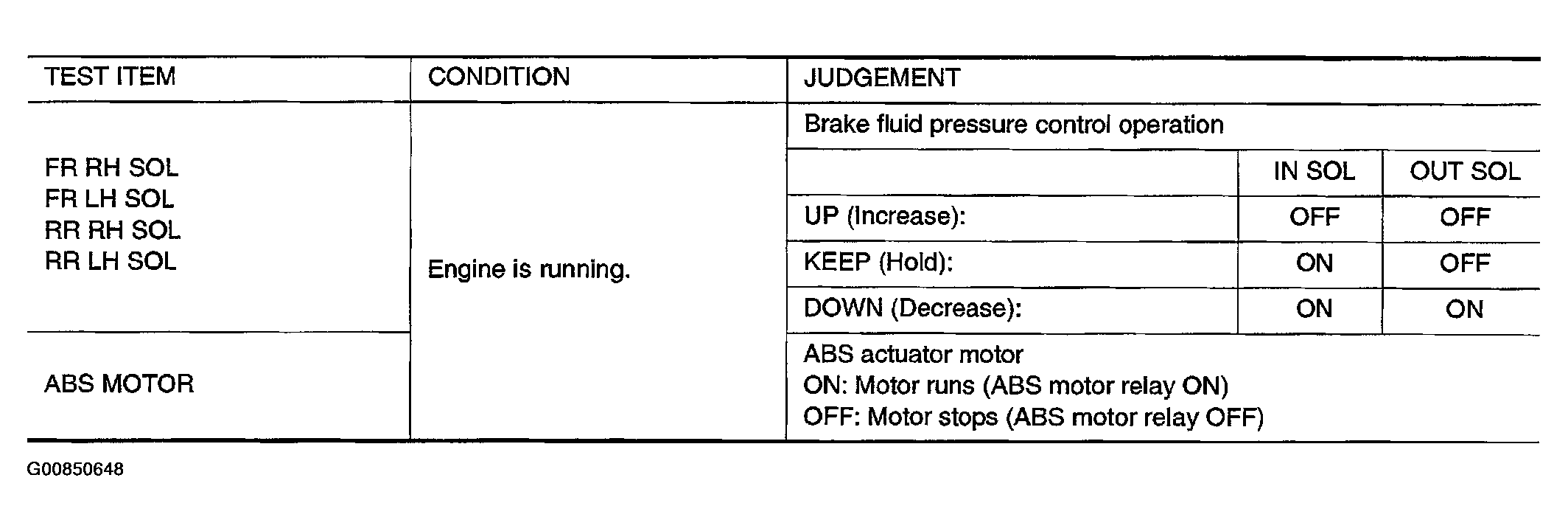

Fig 1: Identifying Active Test Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Active test will automatically stop ten seconds after the test starts. (TEST IS STOPPED monitor shows ON.)
Courtesy of NISSAN MOTOR CO., U.S.A.
