Engine Control System - Qr25DE
›
Basic Service Procedure
›
Idle Speed and Ignition Timing Check
›
Ignition Timing
›
Method B
Method B
Remove No. 1 ignition coil.

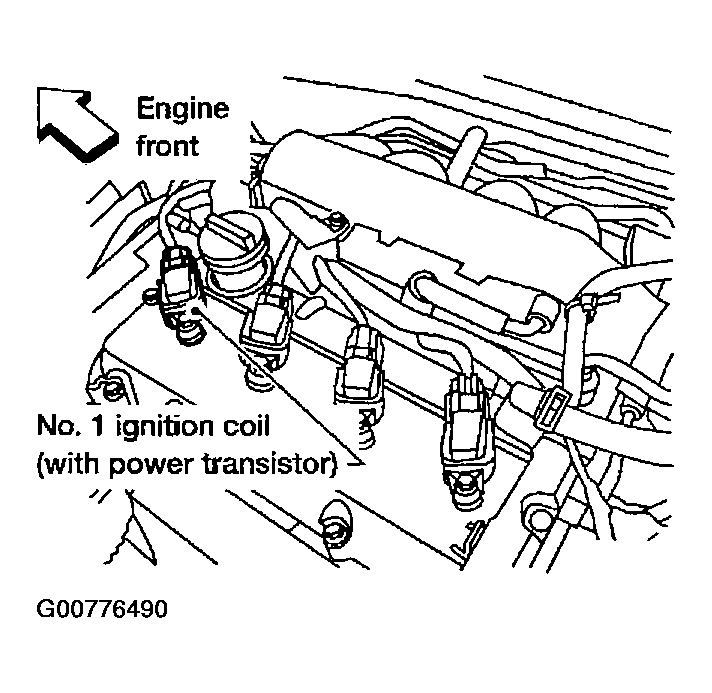

Fig 1: Removing No. 1 Ignition Coil
Courtesy of NISSAN MOTOR CO., U.S.A.

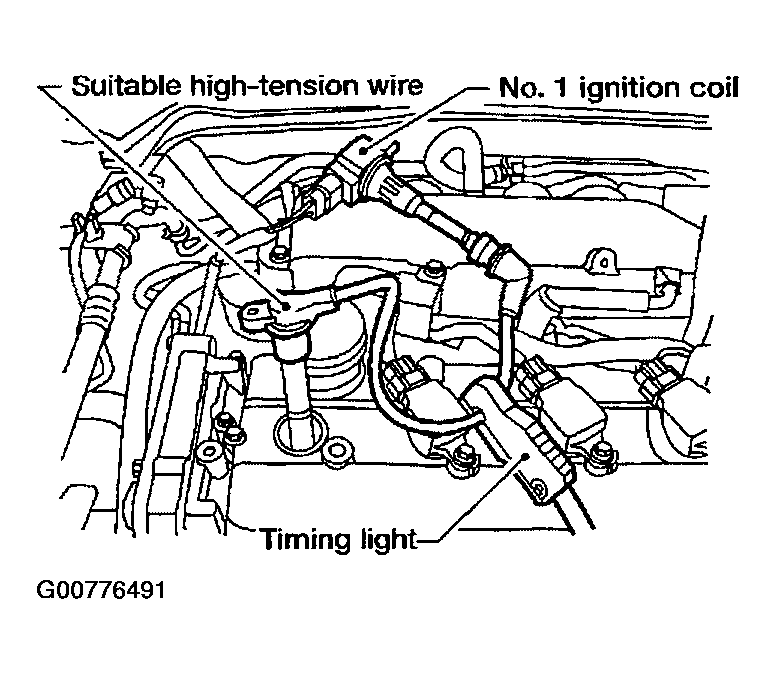

Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.
Fig 2: Connecting No. 1 Ignition Coil & No. 1 Spark Plug With High-Tension Wire
Courtesy of NISSAN MOTOR CO., U.S.A.

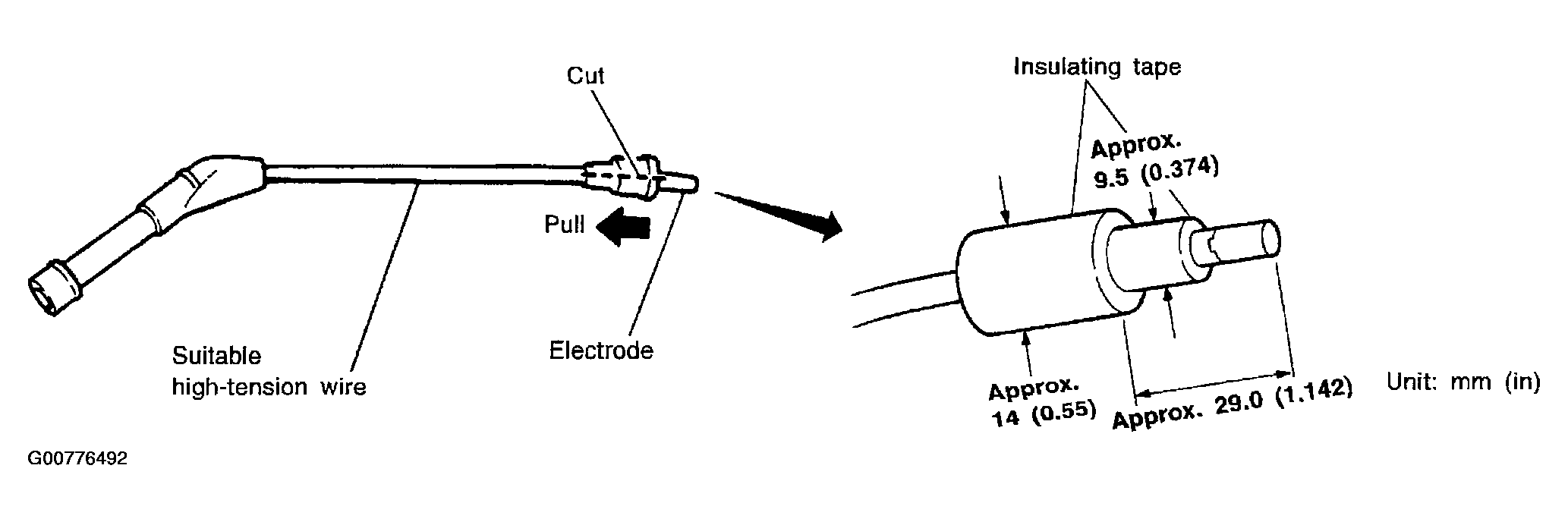

Fig 3: Identifying Suitable High-Tension Wire
Courtesy of NISSAN MOTOR CO., U.S.A.
Check ignition timing.

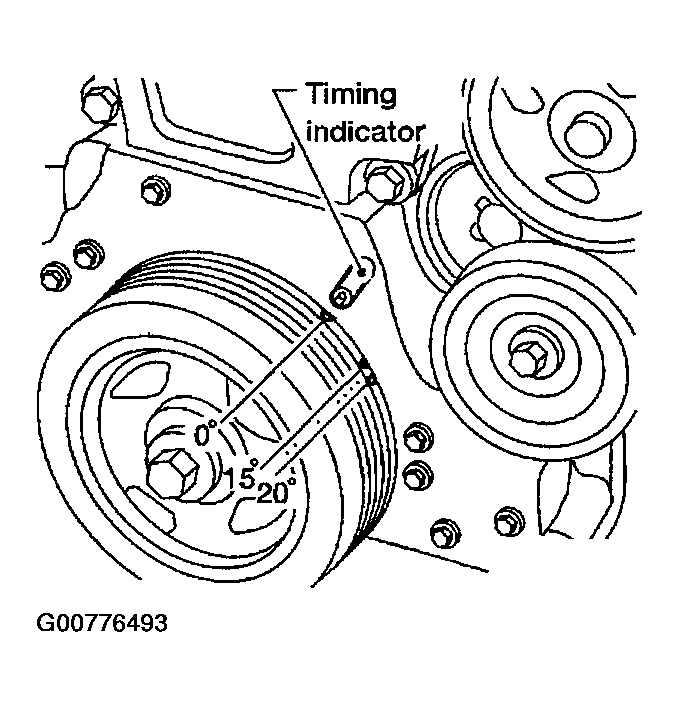

Fig 4: Identifying Timing Indicator
Courtesy of NISSAN MOTOR CO., U.S.A.
