DTC P0182, P0183: FTT Sensor: Wiring Diagram

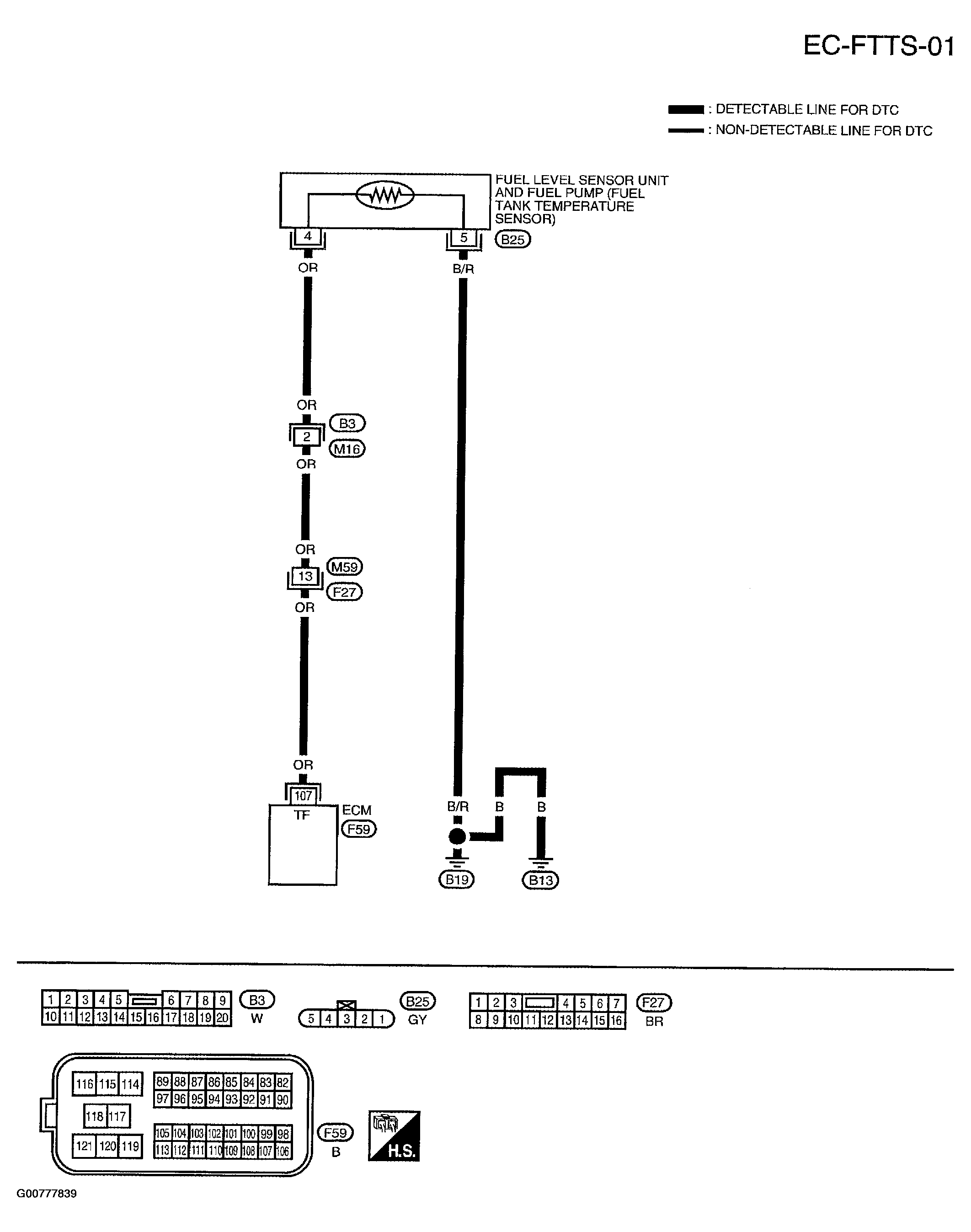

Fig 1: FTT Sensor Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
