Overall Inspection Sequence

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

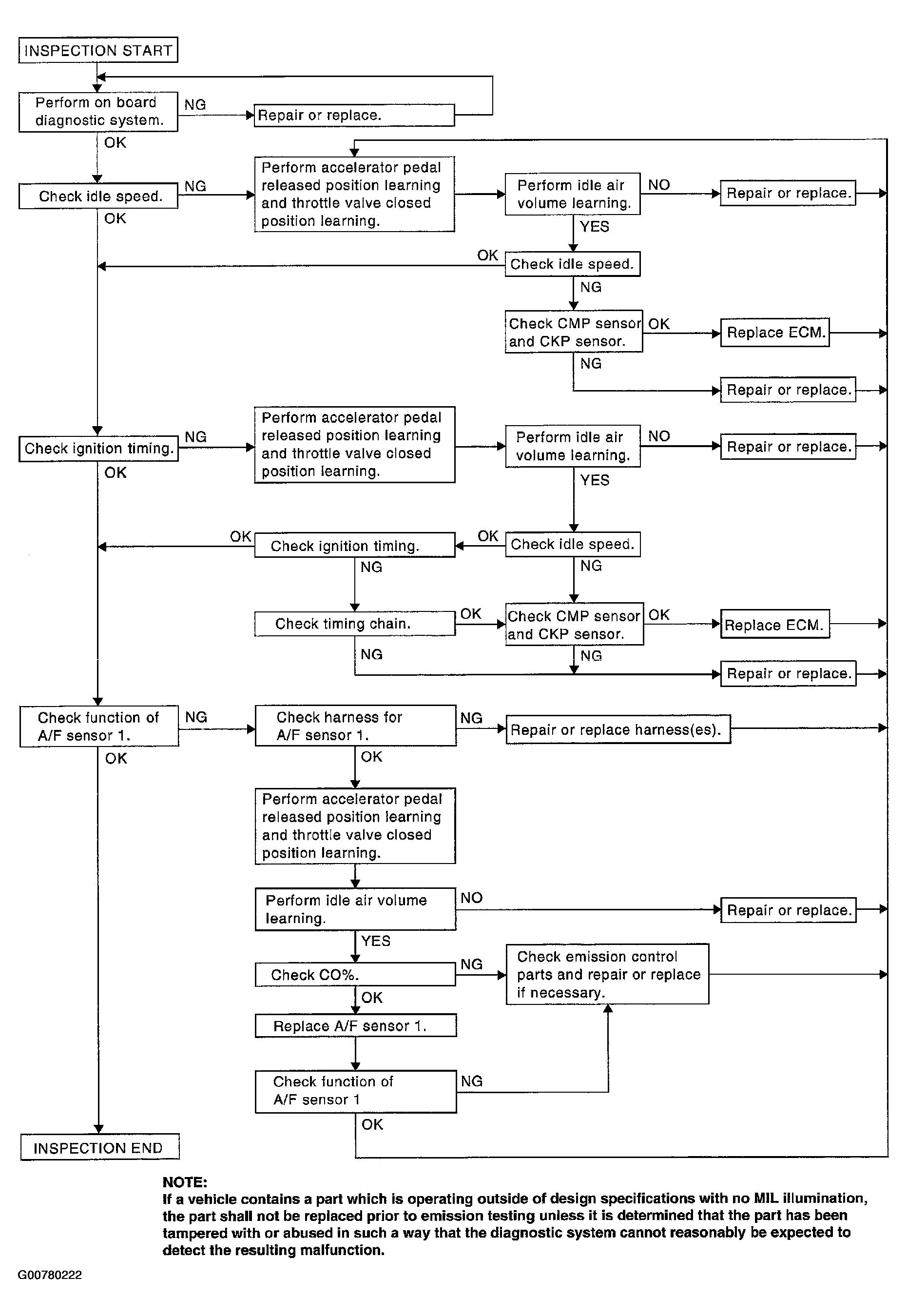

Fig 1: Overall Inspection Sequence Flow Chart
G00780222Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: If a vehicle contains a part which is operating outside of design specifications with no MIL illumination, the part shall not be replaced prior to emission testing unless it is determined that the part has been tampered with or abused in such a way that the diagnostic system cannot reasonably be expected to detect the resulting malfunction.
