Center Console: Notes

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

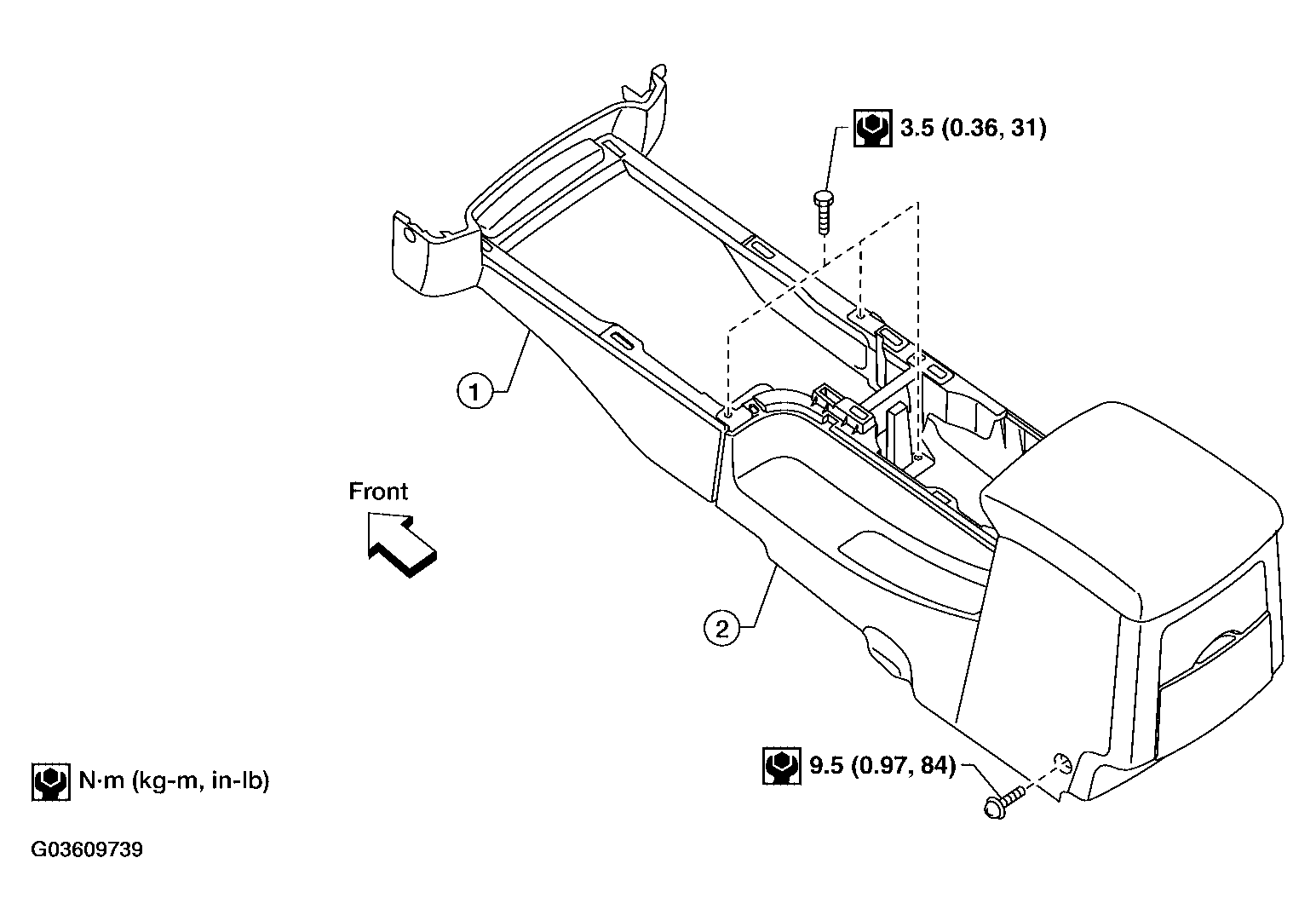

Fig 1: Center Console With Torque Specifications

G03609739

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove cup holder finisher.
Remove A/T or M/T finisher. Refer to "A/T FINISHER " or "M/T FINISHER ".
Remove center console screws.
Disconnect electrical connectors and remove center console.
