Fuel Warning Lamp Sensor Test

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For fuel warning lamp sensor test, see Fig 1.

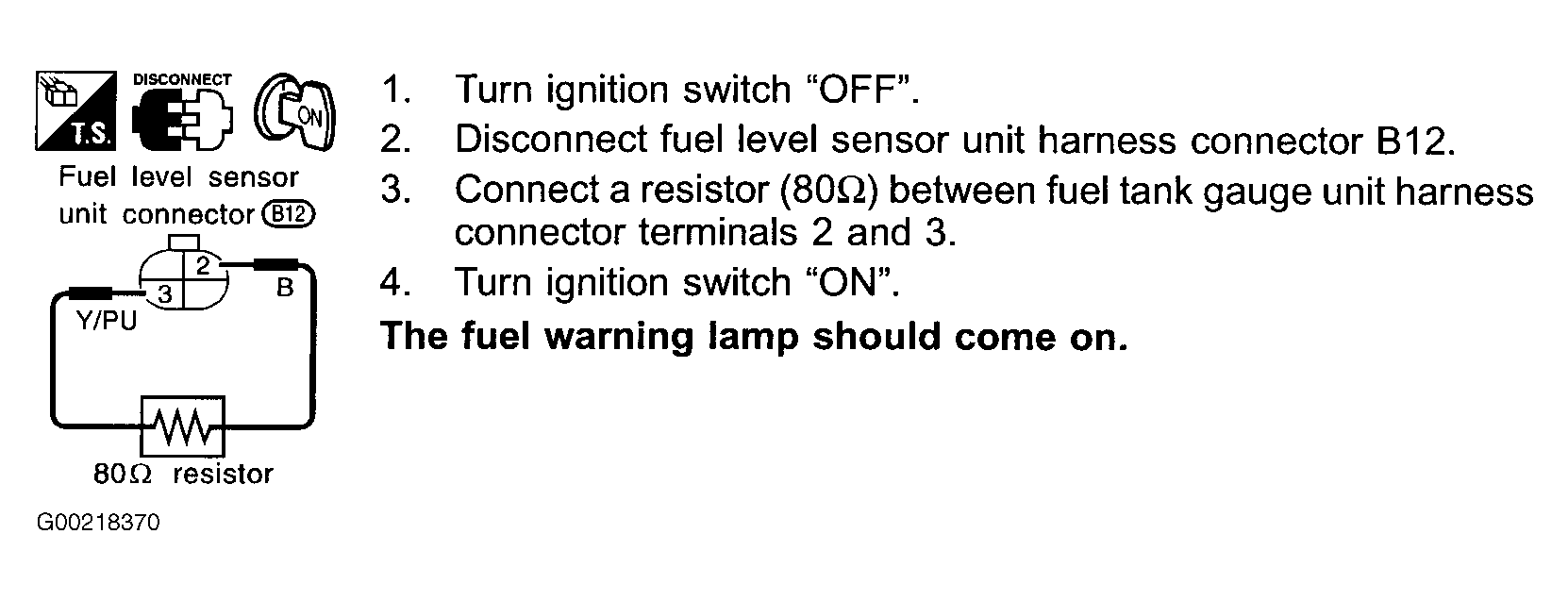

Fig 1: Identifying Fuel Warning Lamp Sensor Test

Courtesy of NISSAN MOTOR CO., U.S.A.
