Section 430 (Automatic Transaxle - Re4F04B): Disassembly: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Drain ATF through drain plug.

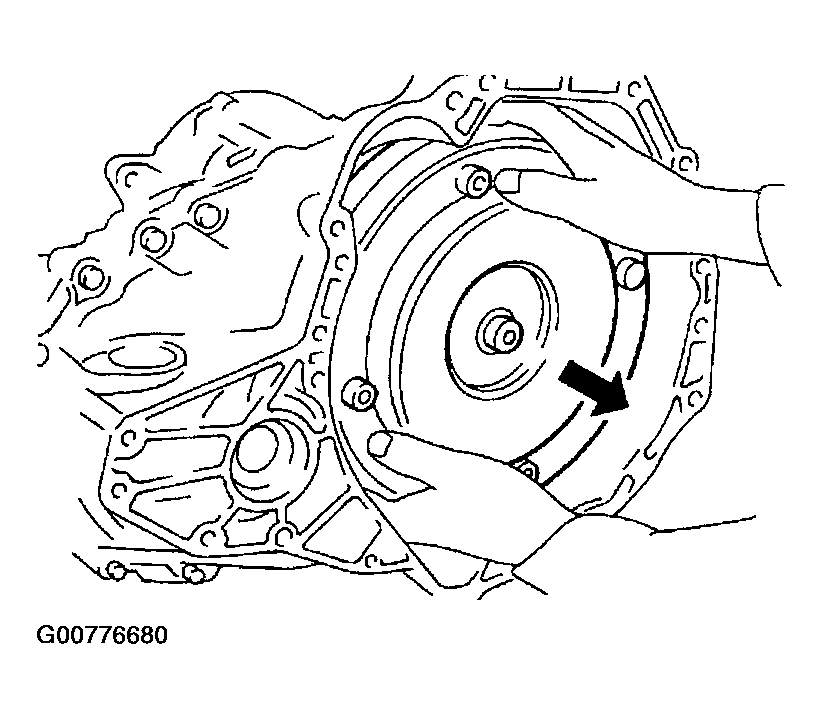

Remove torque converter.

Fig 1: Disassembly (1 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.

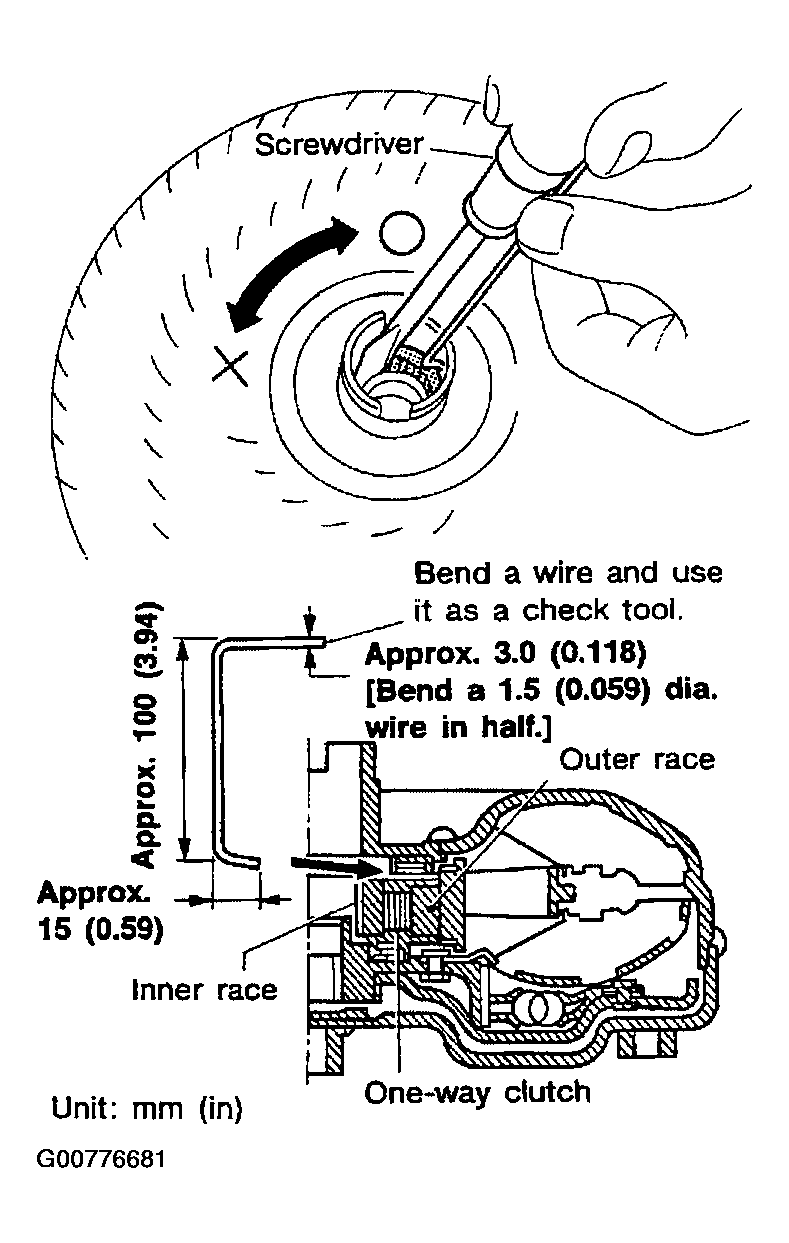

Check torque converter one-way clutch using check tool as shown at left.
1. Insert check tool into the groove of bearing support built into one-way clutch outer race.
2. When fixing bearing support with check tool, rotate one- way clutch spline using screwdriver.
3. Check that inner race rotates clockwise only. If not, replace torque converter assembly.

  Fig 2: Disassembly (2 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.

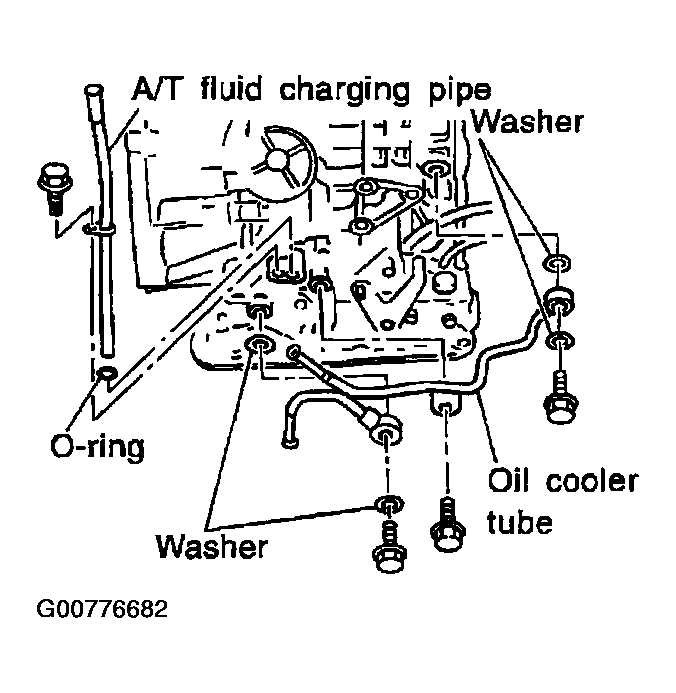

Remove A/T fluid charging pipe and fluid cooler tube.

Fig 3: Disassembly (3 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.

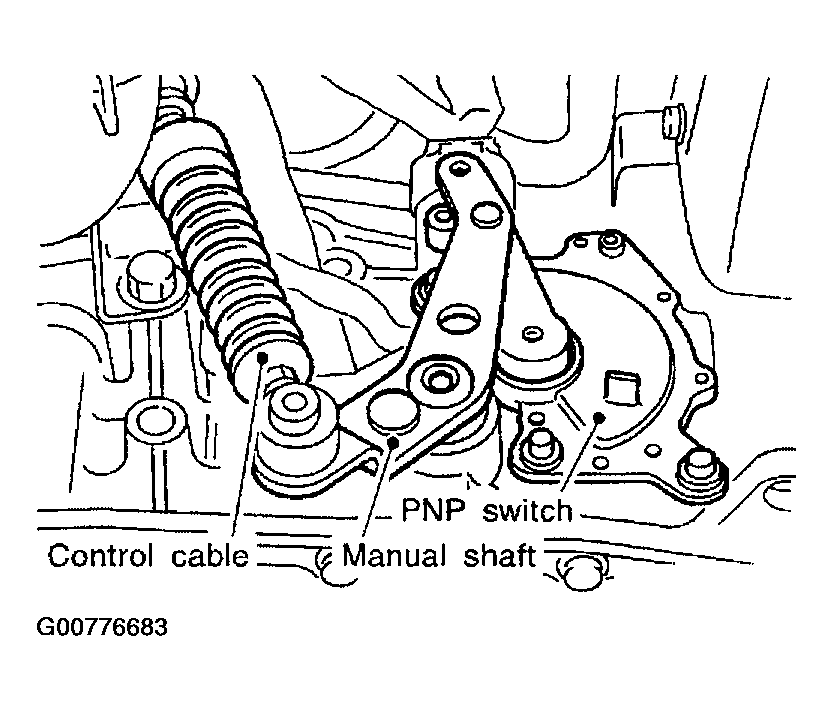

Set manual shaft to position P.
Remove park/neutral position (PNP) switch.

Fig 4: Disassembly (4 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil pan using power tools, and oil pan gasket.
- Do not reuse oil pan bolts.
Check foreign materials in oil pan to help determine causes of malfunction. If the fluid is very dark, smells burned, or contains foreign particles, the frictional material (clutches, band) may need replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves, servo, and clutches to stick and can inhibit pump pressure.
- If frictional material is detected, replace radiator after repair of A/T. Refer to "RADIATOR ".

  Fig 5: Disassembly (5 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove control valve assembly according to the following procedures.

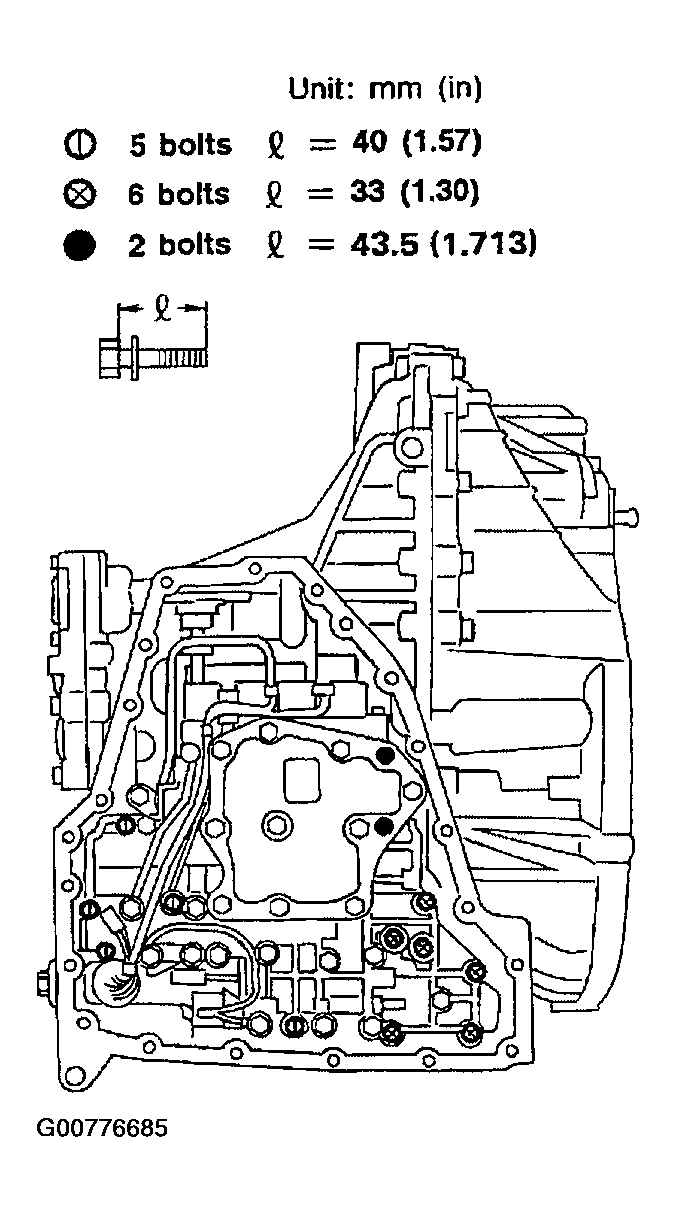

1. Remove control valve assembly mounting bolts I, X and 2 bolts marked with Black Dots. See Fig 6.

  Fig 6: Disassembly (6 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Remove snap ring from terminal body.
  - Do not expand snap ring excessively.

    Fig 7: Disassembly (7 Of 67)
    Courtesy of NISSAN MOTOR CO., U.S.A.
3. Push terminal body into transmission case and draw out terminal cord assembly.

  Fig 8: Disassembly (8 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove manual valve from control valve assembly.

Fig 9: Disassembly (9 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.

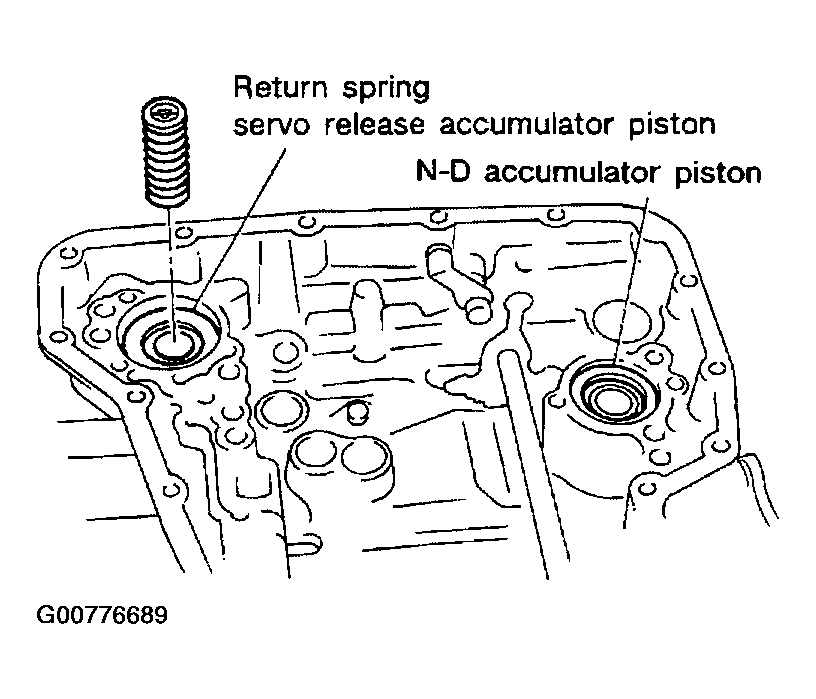

Remove return spring from servo release accumulator piston.

Fig 10: Disassembly (10 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.

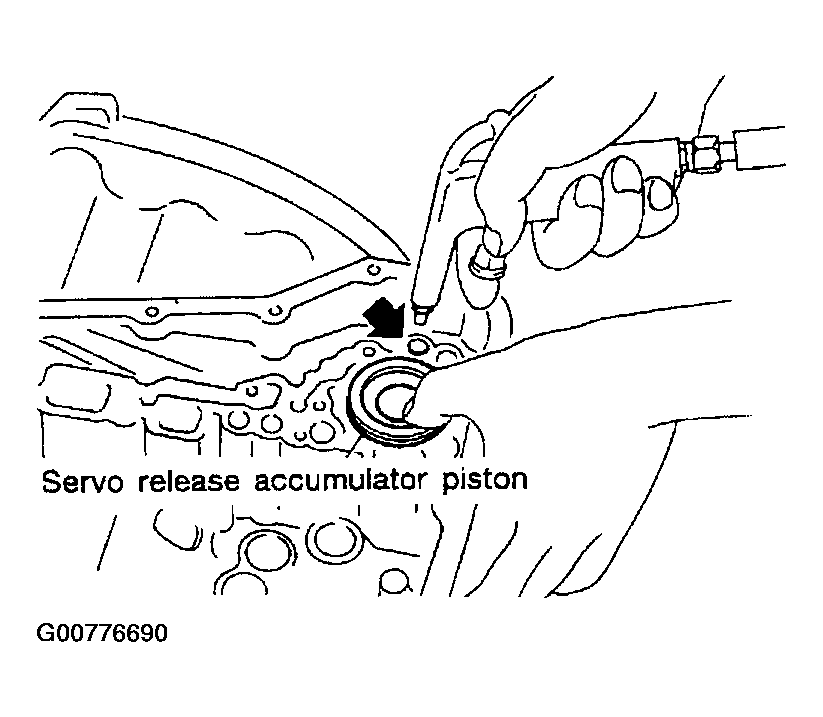

Remove servo release accumulator piston with compressed air.

Fig 11: Disassembly (11 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-rings from servo release accumulator piston.

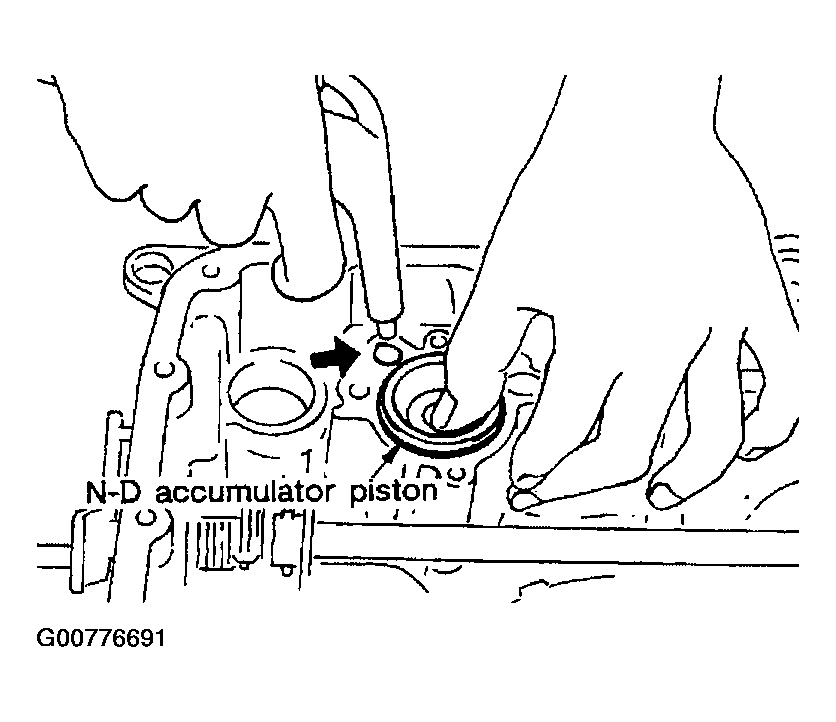

Remove N-D accumulator piston and return spring with compressed air.

Fig 12: Disassembly (12 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-rings from N-D accumulator piston.

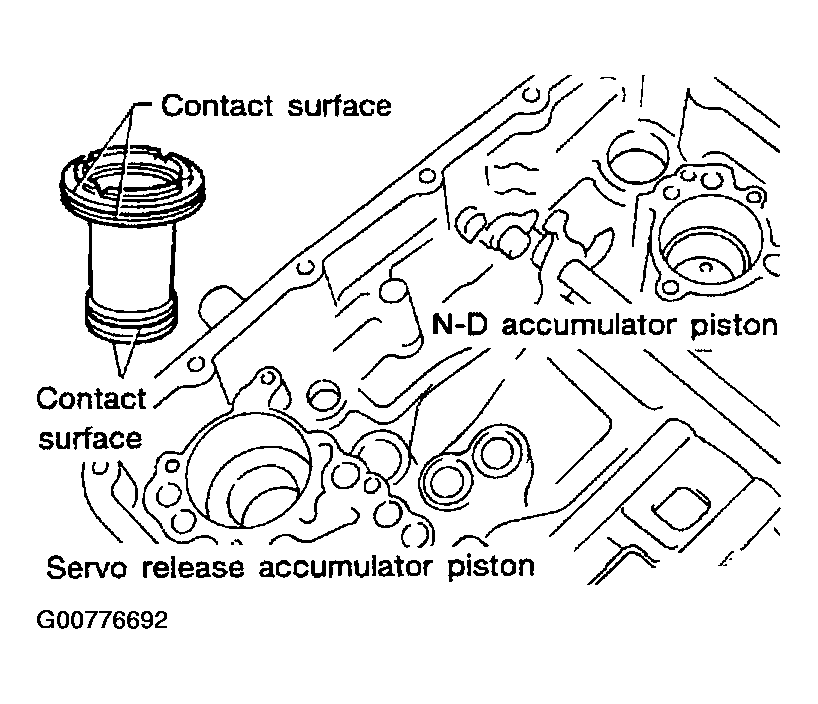

Check accumulator pistons and contact surface of transmission case for damage.

Fig 13: Disassembly (13 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.
Check accumulator return springs for damage and free length.

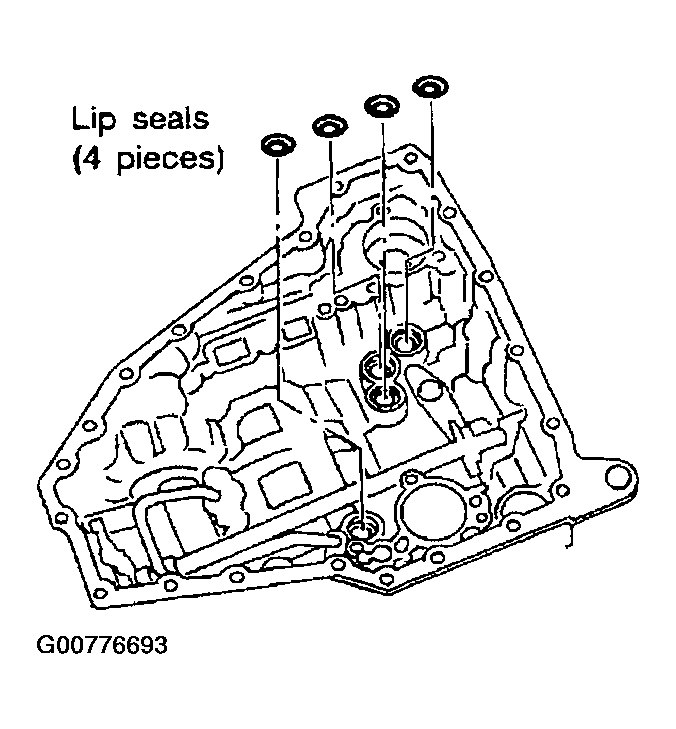

Remove lip seals.

Fig 14: Disassembly (14 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.

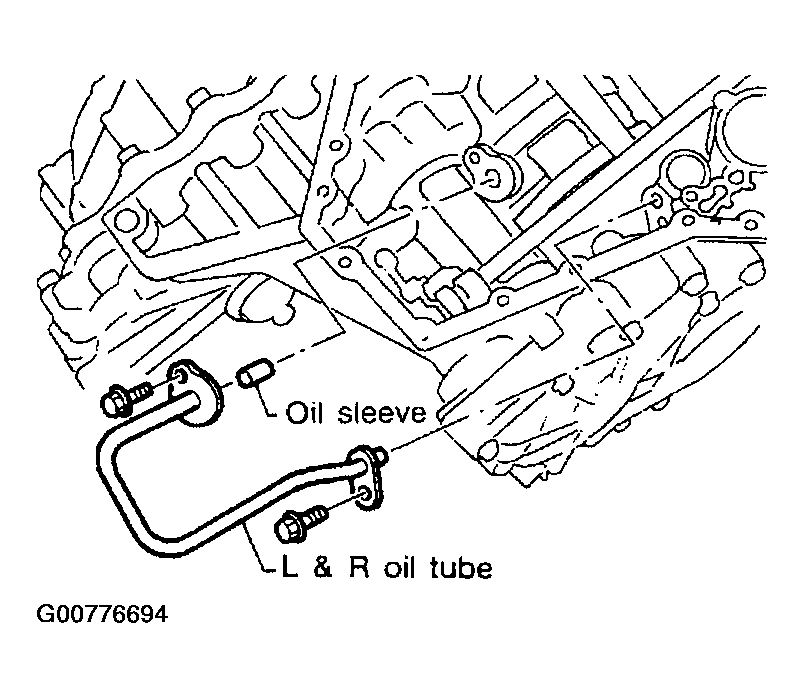

Remove L & R oil tube and oil sleeve.

Fig 15: Disassembly (15 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove converter housing according to the following procedures.

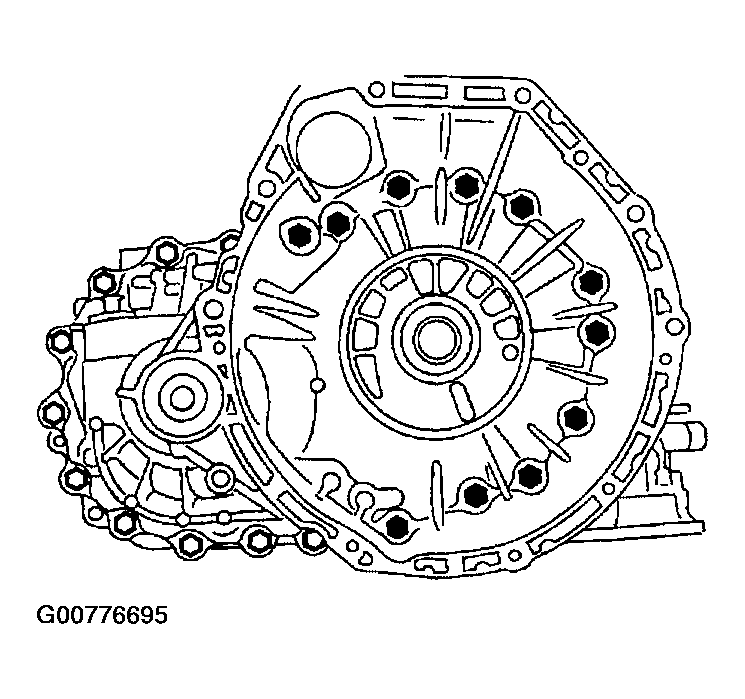

1. Remove converter housing mounting bolts using power tools.
2. Remove converter housing by tapping it lightly.

  Fig 16: Disassembly (16 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.

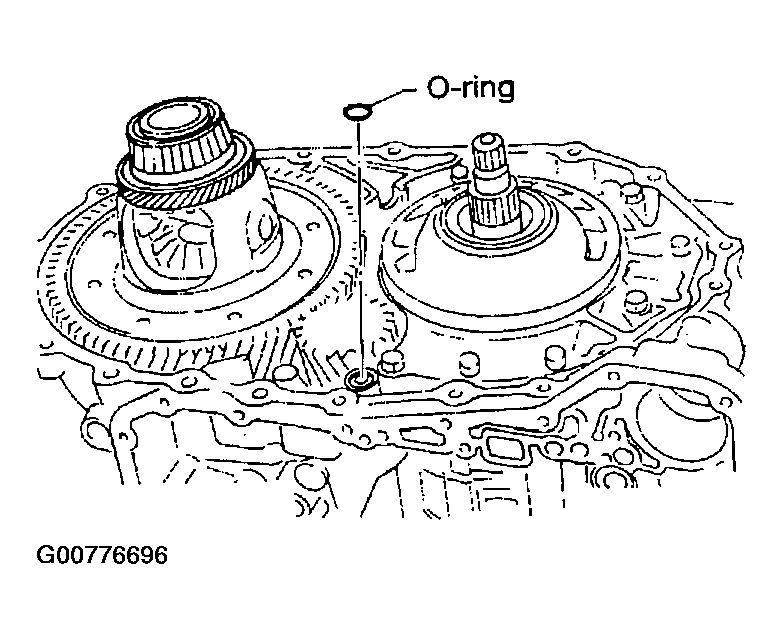

3. Remove O-ring from differential oil port.

  Fig 17: Disassembly (17 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.

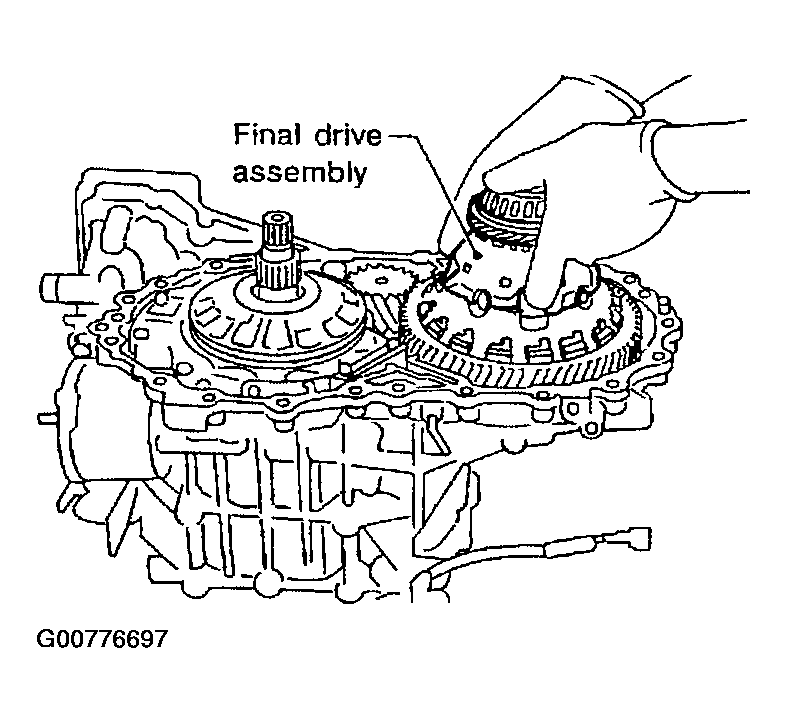

Remove final drive assembly from transmission case.

Fig 18: Disassembly (18 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove differential side bearing outer race and side bearing adjusting shim from transmission case.

Fig 19: Disassembly (19 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove differential side bearing adjusting shim from transmission case.

Fig 20: Disassembly (20 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove differential side bearing outer race from converter housing.

Fig 21: Disassembly (21 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.

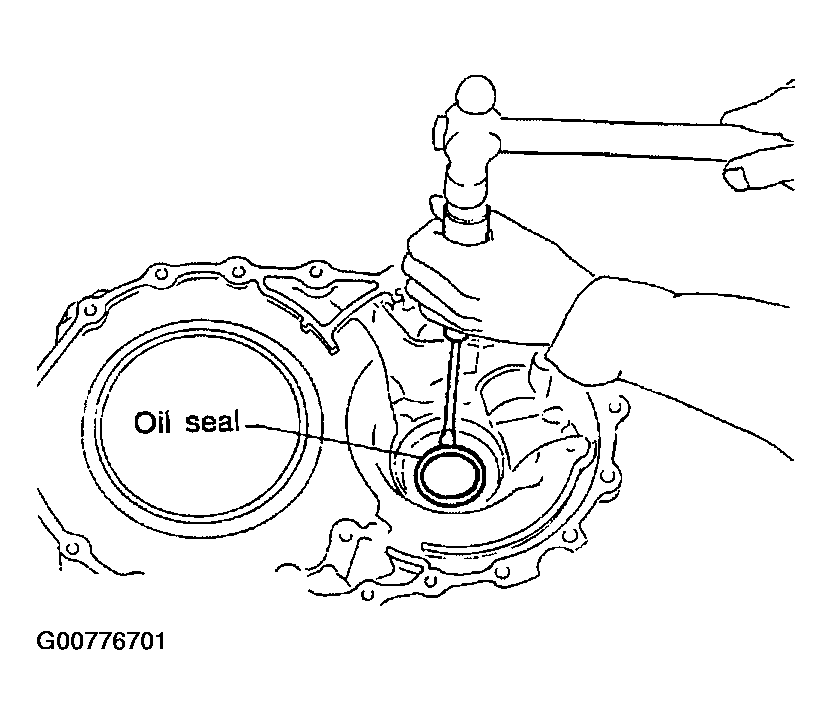

Remove oil seal with screwdriver from converter housing.
- Be careful not to damage case.

  Fig 22: Disassembly (22 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.

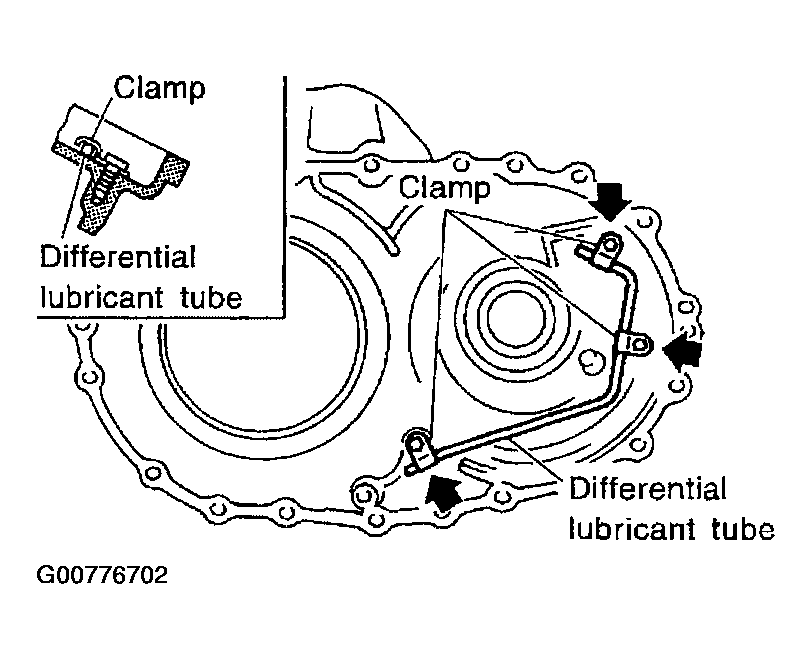

Remove differential lubricant tube from converter housing.

Fig 23: Disassembly (23 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil pump according to the following procedures.

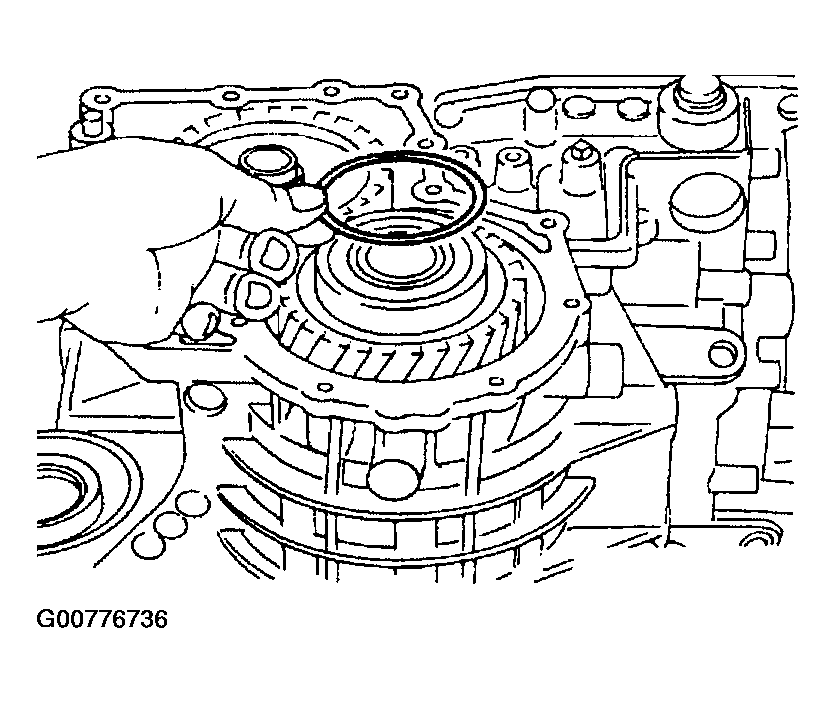

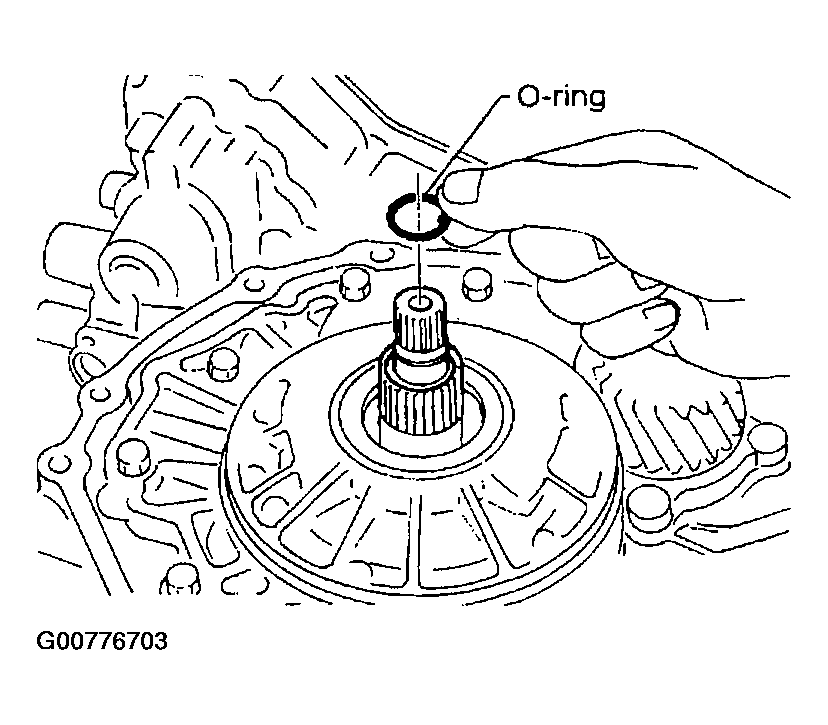

1. Remove O-ring from input shaft.

  Fig 24: Disassembly (24 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.

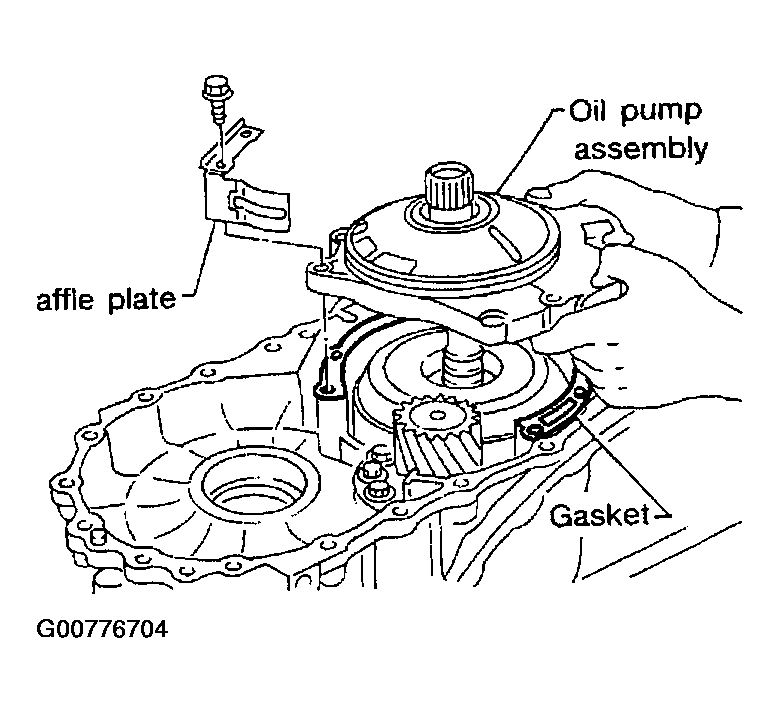

2. Remove oil pump assembly, baffle plate and gasket from transmission case.

  Fig 25: Disassembly (25 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Remove thrust washer and bearing race from oil pump assembly.

  Fig 26: Disassembly (26 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove brake band according to the following procedures.

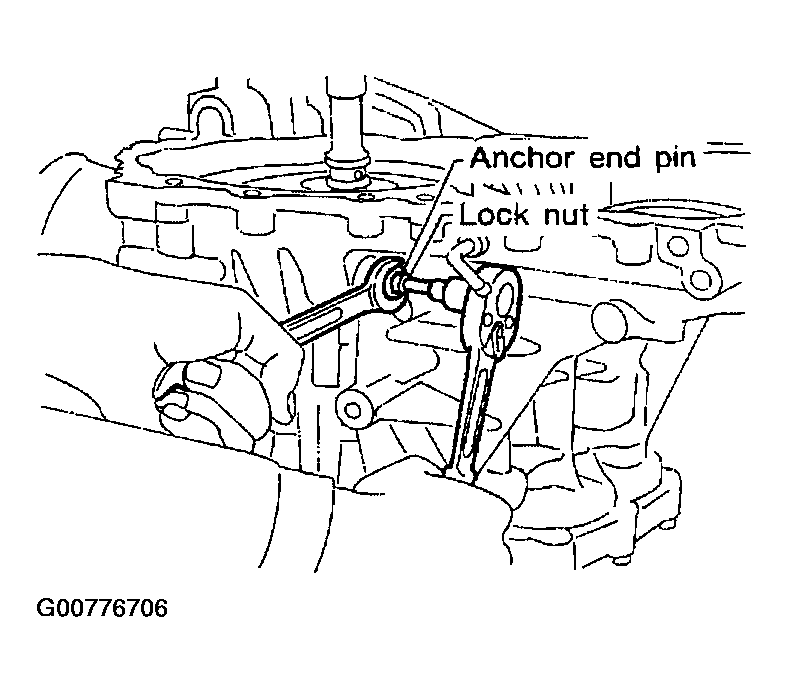

1. Loosen lock nut, then back off anchor end pin.
  - Do not reuse anchor end pin.

    Fig 27: Disassembly (27 Of 67)
    Courtesy of NISSAN MOTOR CO., U.S.A.

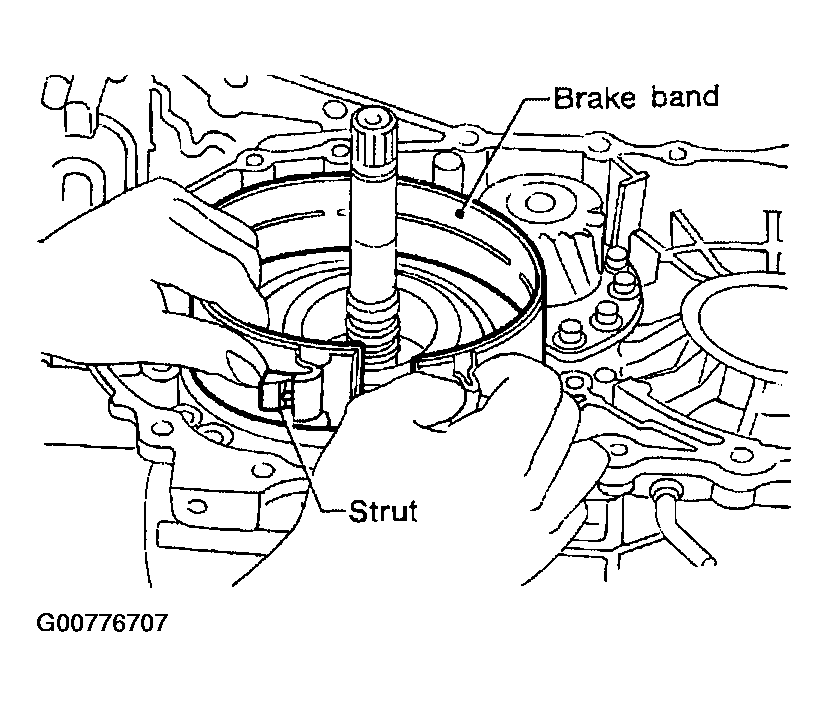

2. Remove brake band and strut from transmission case.

  Fig 28: Disassembly (28 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
  - To prevent brake linings from cracking or peeling, do not stretch the flexible band unnecessarily. When removing the brake band, always secure it with a clip as shown in the figure at left.
    Leave the clip in position after removing the brake band.

    Fig 29: Disassembly (29 Of 67)
    Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check brake band facing for damage, cracks, wear or burns.

  Fig 30: Disassembly (30 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.

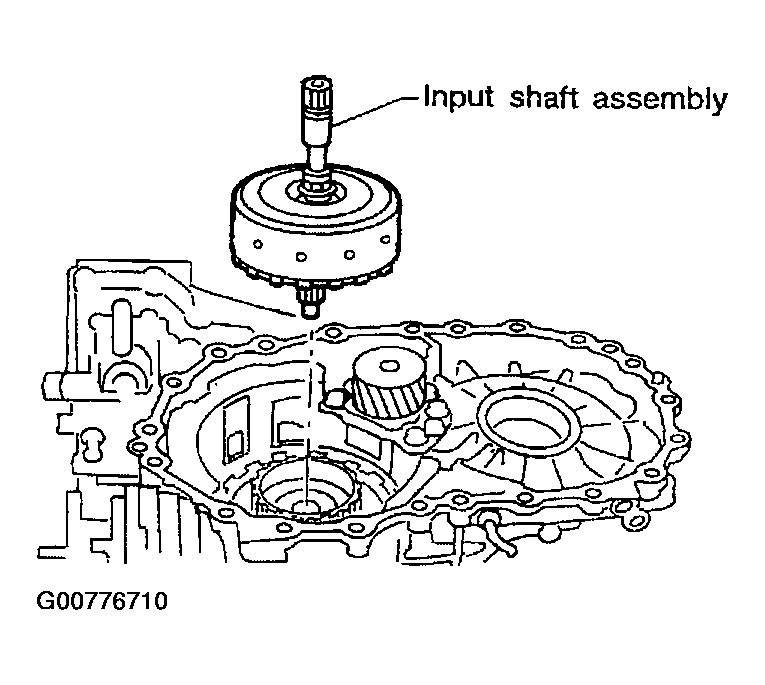

Remove input shaft assembly (high clutch) and reverse clutch according to the following procedures.
1. Remove input shaft assembly (high clutch) with reverse clutch.

  Fig 31: Disassembly (31 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Remove input shaft assembly (high clutch) from reverse clutch.

  Fig 32: Disassembly (32 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Remove needle bearings from high clutch drum and check for damage or wear.

  Fig 33: Disassembly (33 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.

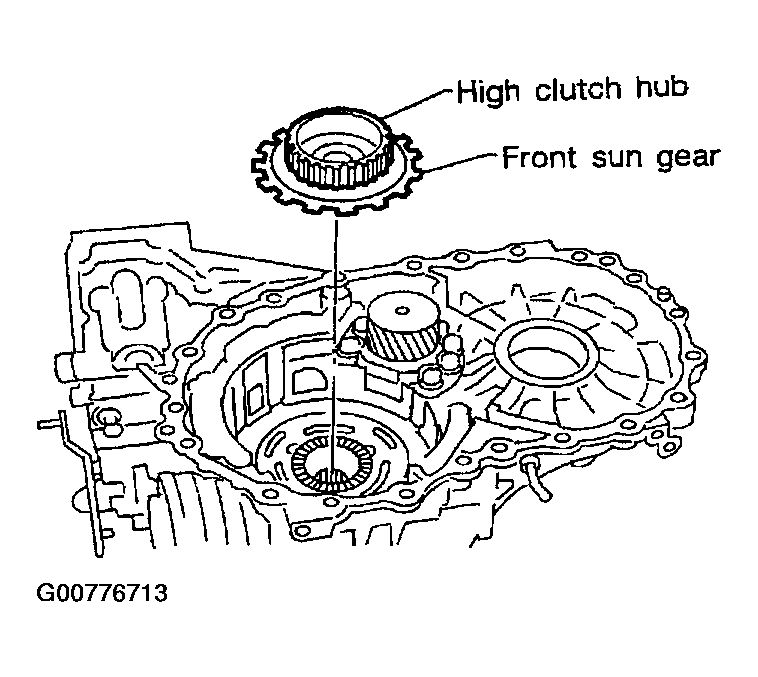

4. Remove high clutch hub and front sun gear from transmission case.

  Fig 34: Disassembly (34 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
5. Remove front sun gear and needle bearing from high clutch hub and check for damage or wear.
6. Remove bearing race from front sun gear and check for damage or wear.

  Fig 35: Disassembly (35 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.

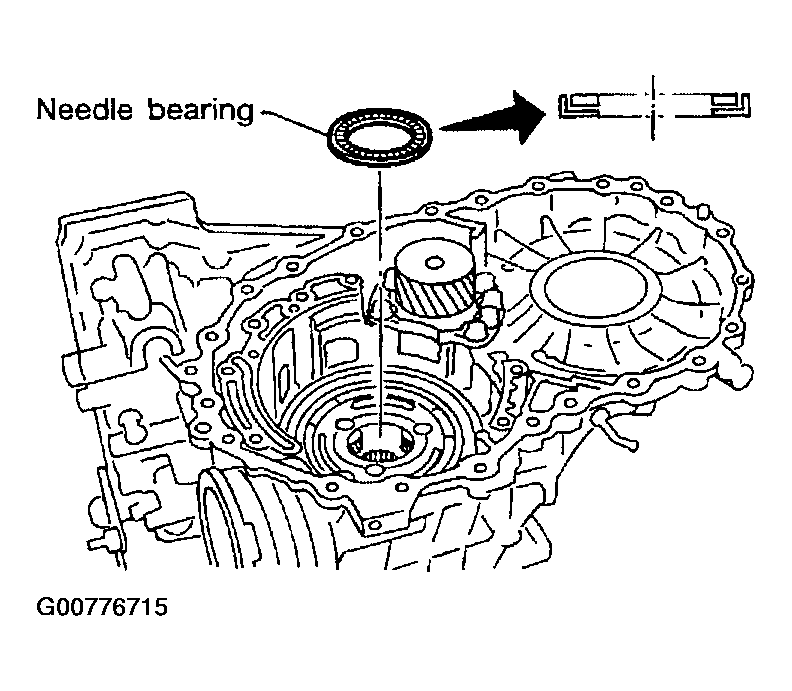

Remove needle bearing from transmission case and check for damage or wear.

Fig 36: Disassembly (36 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.

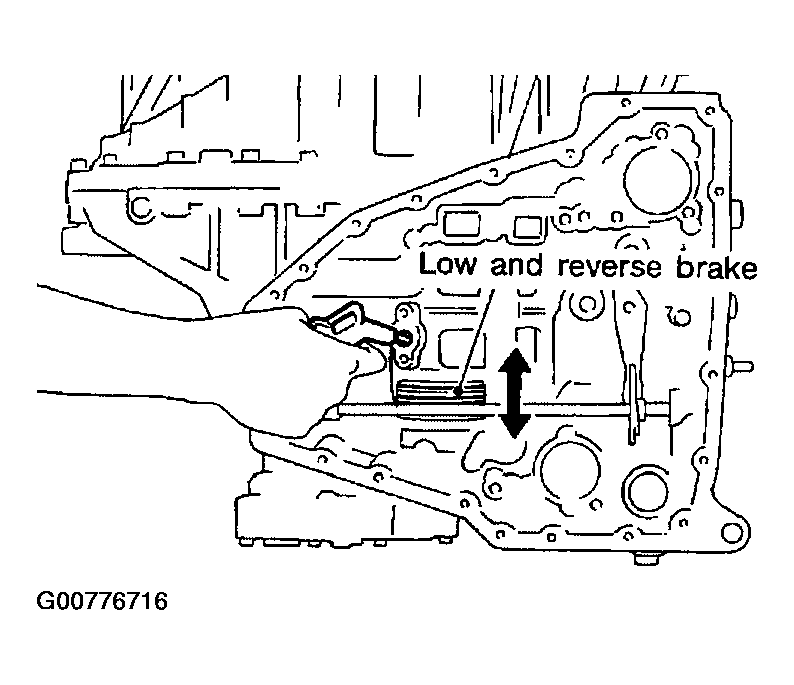

Apply compressed air and check to see that low and reverse brake operates.

Fig 37: Disassembly (37 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove low one-way clutch and front planetary carrier assembly according to the following procedures.

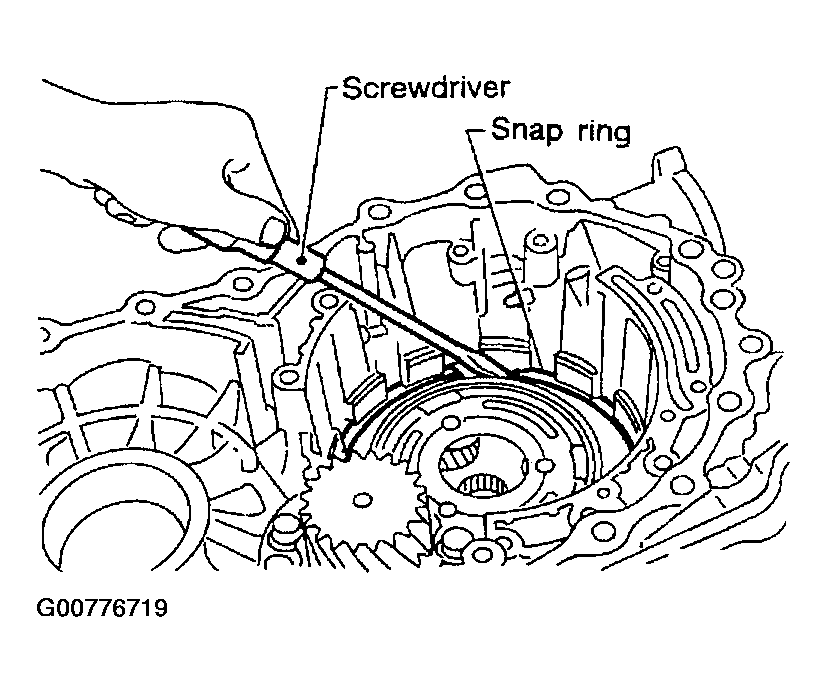

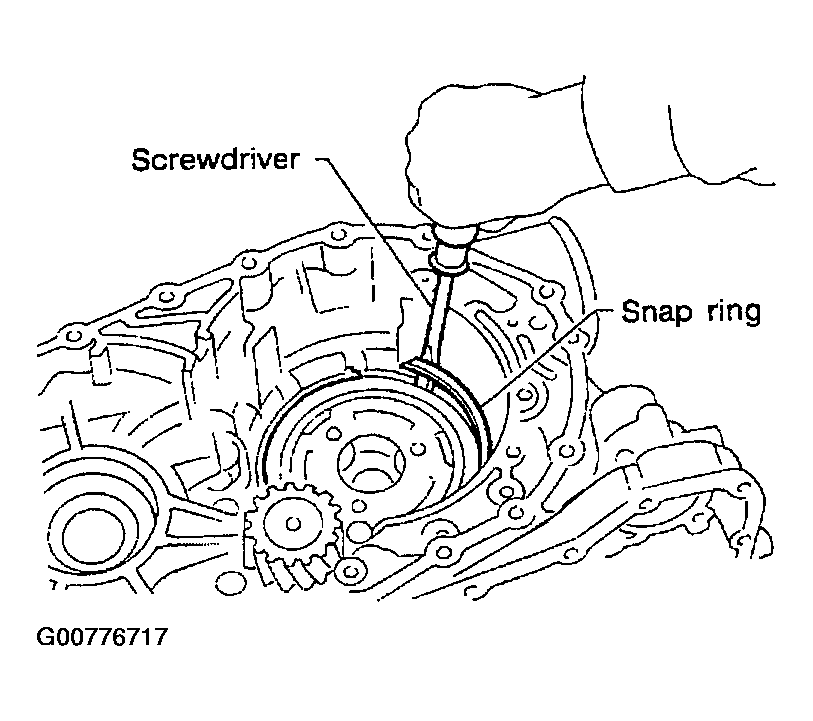

1. Remove snap ring with flat-bladed screwdriver.
  - Do not expand snap ring excessively.

    Fig 38: Disassembly (38 Of 67)
    Courtesy of NISSAN MOTOR CO., U.S.A.

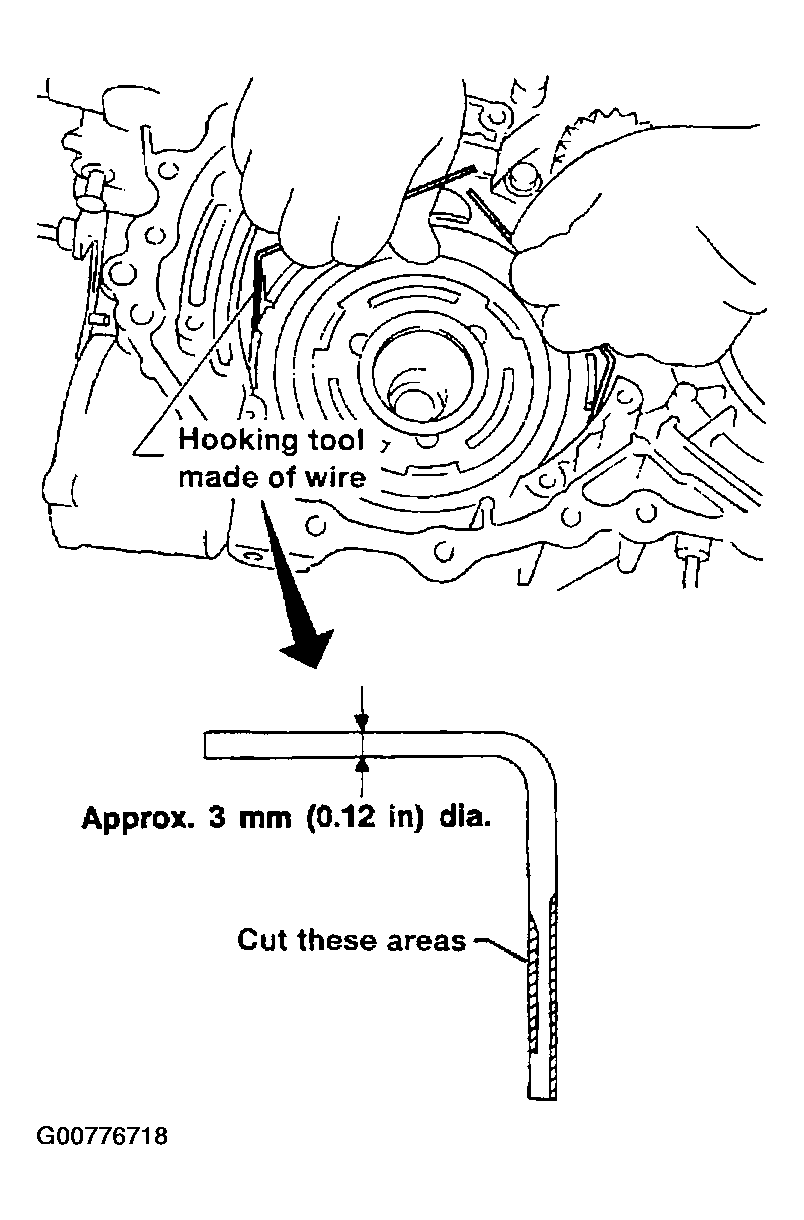

2. Remove low one-way clutch with a hook made of wire.

  Fig 39: Disassembly (39 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Remove snap ring with flat-bladed screwdriver.
  - Do not expand snap ring excessively.

    Fig 40: Disassembly (40 Of 67)
    Courtesy of NISSAN MOTOR CO., U.S.A.

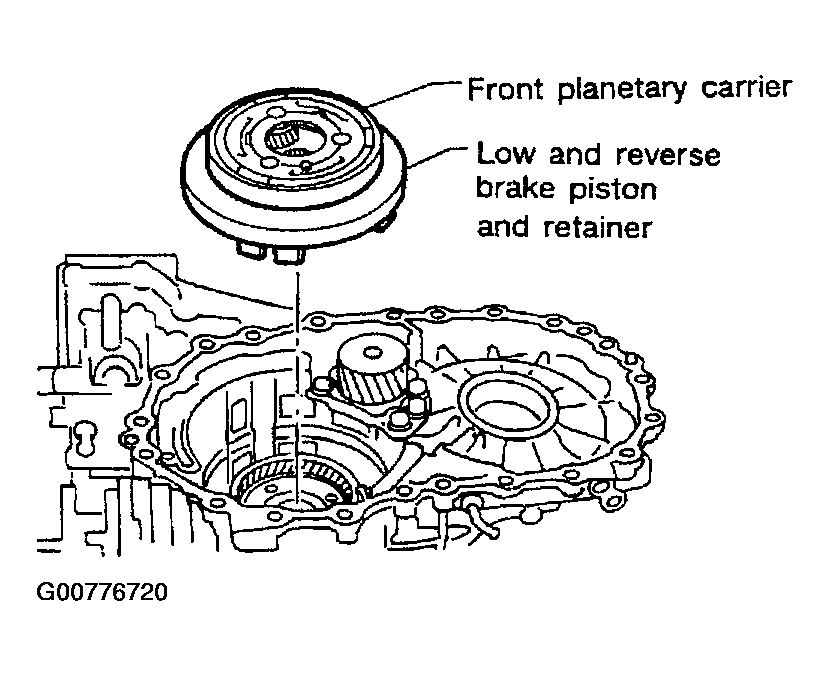

4. Remove front planetary carrier with low and reverse brake piston and retainer.

  Fig 41: Disassembly (41 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.

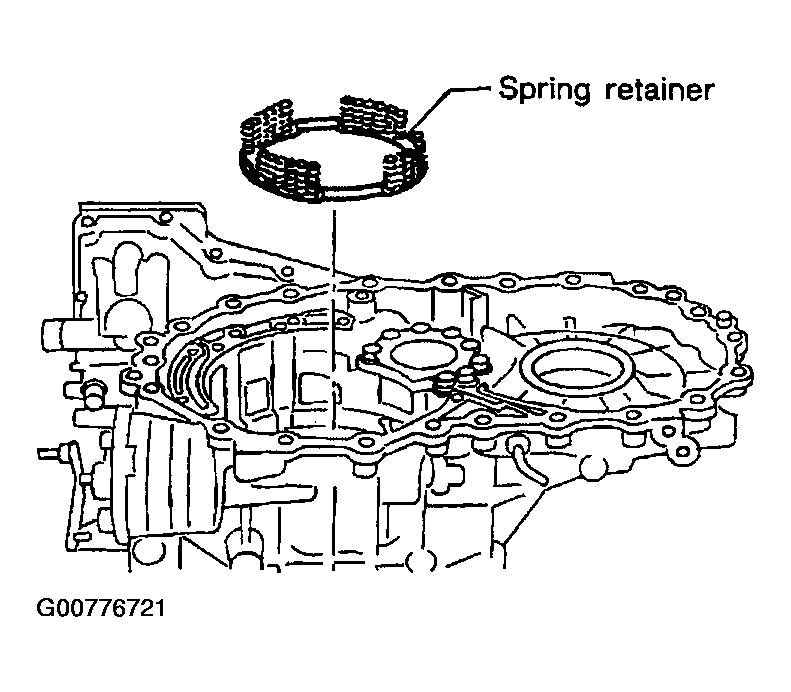

5. Remove low and reverse brake spring retainer.
  - Do not remove return springs from spring retainer.

    Fig 42: Disassembly (42 Of 67)
    Courtesy of NISSAN MOTOR CO., U.S.A.
6. Check that low one-way clutch rotates in the direction of the clockwise arrow and locks in the opposite direction.

  Fig 43: Disassembly (43 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
7. Remove needle bearing, low and reverse brake piston and retainer from front planetary carrier.
8. Check front planetary carrier, low one-way clutch and needle bearing for damage or wear.

  Fig 44: Disassembly (44 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
9. Check clearance between planetary gears and planetary carrier with feeler gauge.
  Standard clearance : 0.20 - 0.70 mm (0.0079 - 0.0276 in)

  Allowable limit : 0.80 mm (0.0315 in)

  Replace front planetary carrier if the clearance exceeds allowable limit.

  Fig 45: Disassembly (45 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear planetary carrier assembly and rear sun gear according to the following procedures.
1. Remove rear planetary carrier assembly from transmission case.

  Fig 46: Disassembly (46 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.

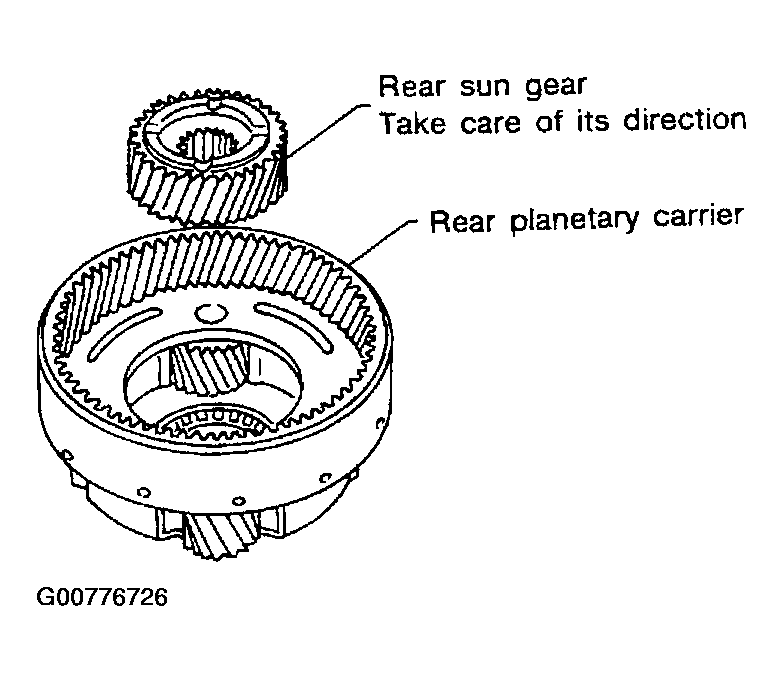

2. Remove rear sun gear from rear planetary carrier.

  Fig 47: Disassembly (47 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Remove needle bearings from rear planetary carrier assembly.
4. Check rear planetary carrier, rear sun gear and needle bearings for damage or wear.

  Fig 48: Disassembly (48 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
5. Check clearance between pinion washer and rear planetary carrier with feeler gauge.
  Standard clearance : 0.20 - 0.70 mm (0.0079 - 0.0276 in)

  Allowable limit : 0.80 mm (0.0315 in)

  Replace rear planetary carrier if the clearance exceeds allowable limit.

  Fig 49: Disassembly (49 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.

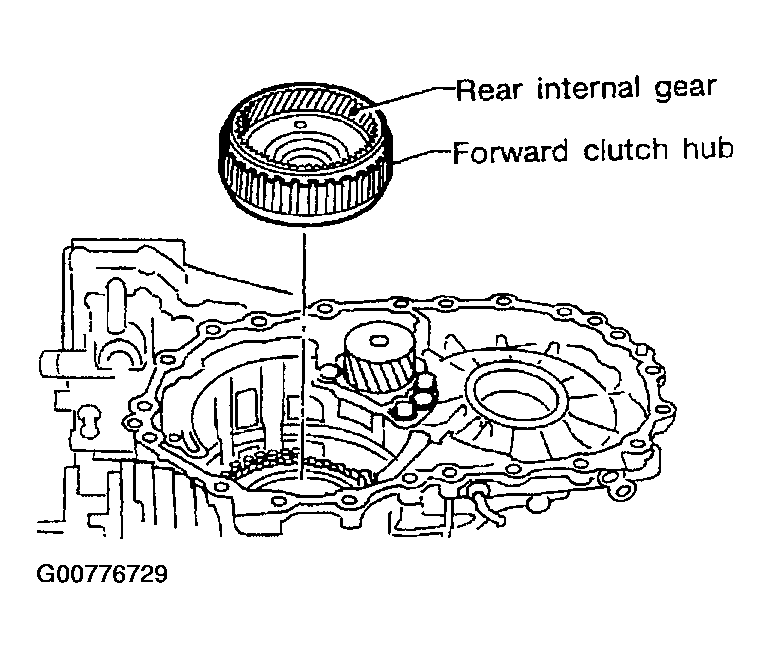

Remove rear internal gear and forward clutch hub from transmission case.

Fig 50: Disassembly (50 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.

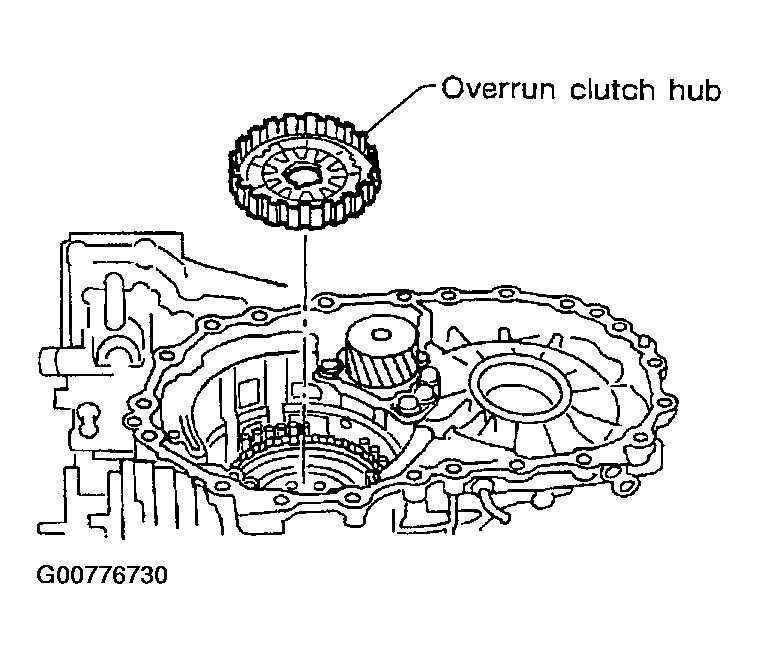

Remove overrun clutch hub from transmission case.

Fig 51: Disassembly (51 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing from overrun clutch hub and check for damage or wear.

Fig 52: Disassembly (52 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.

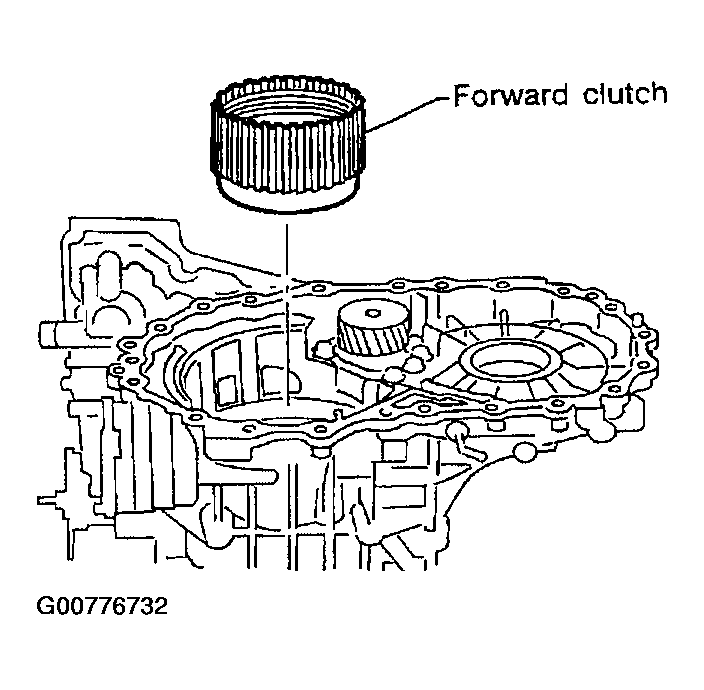

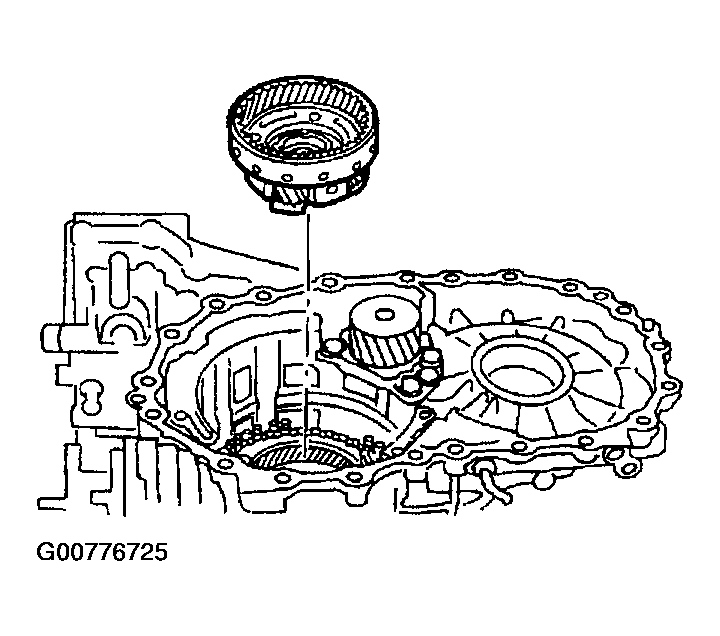

Remove forward clutch assembly from transmission case.

Fig 53: Disassembly (53 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.

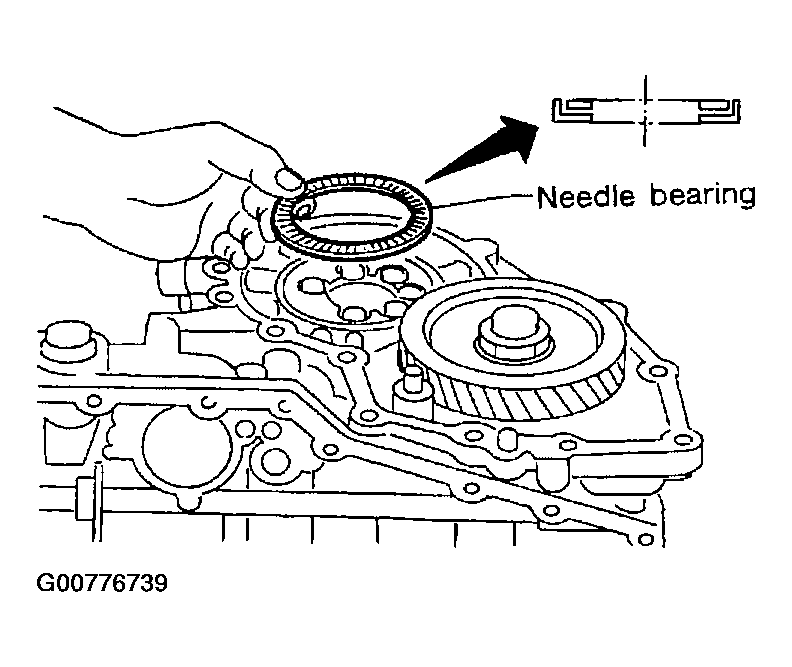

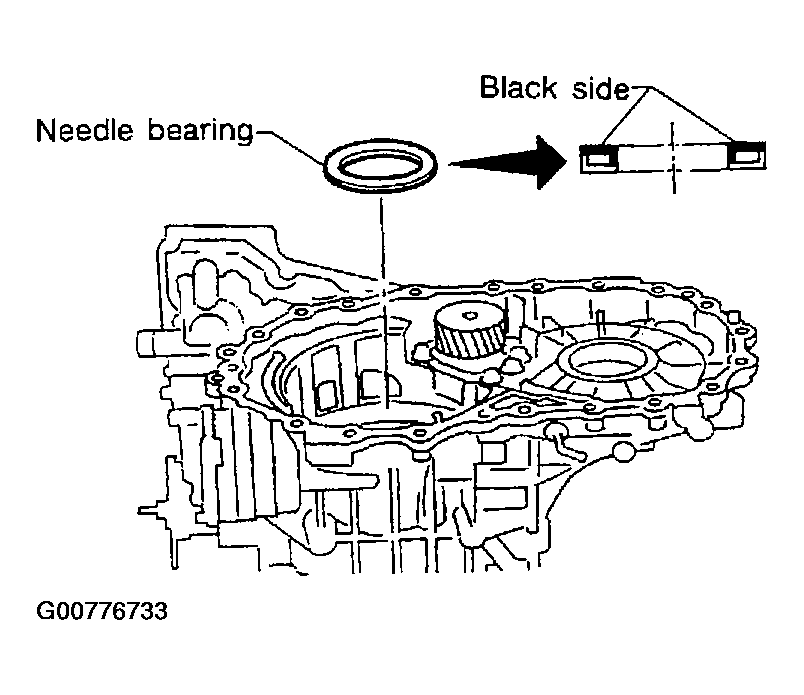

Remove needle bearing from transmission case.

Fig 54: Disassembly (54 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove output shaft assembly according to the following procedures.

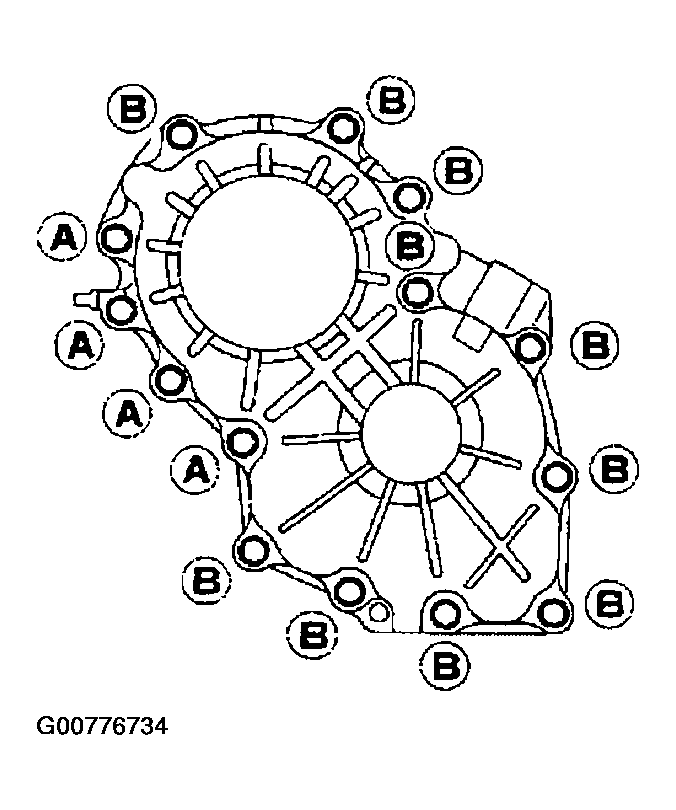

1. Remove side cover bolts.
  - Do not mix bolts A and B.
  - Always replace bolts A as they are self-sealing bolts.

    Fig 55: Disassembly (55 Of 67)
    Courtesy of NISSAN MOTOR CO., U.S.A.

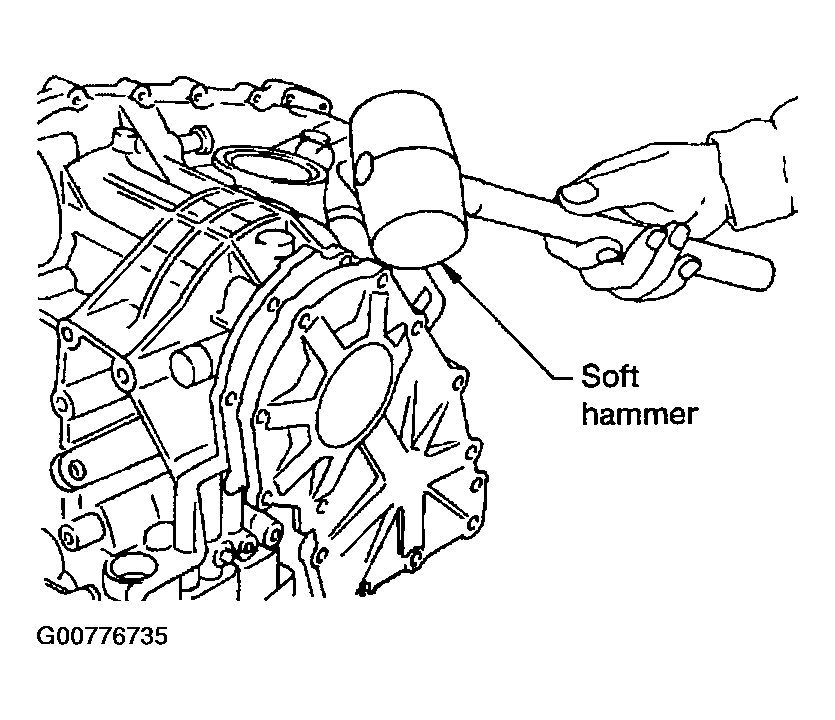

2. Remove side cover by lightly tapping it with a soft hammer.
  - Be careful not to drop output shaft assembly. It might come out when removing side cover.

    Fig 56: Disassembly (56 Of 67)
    Courtesy of NISSAN MOTOR CO., U.S.A.

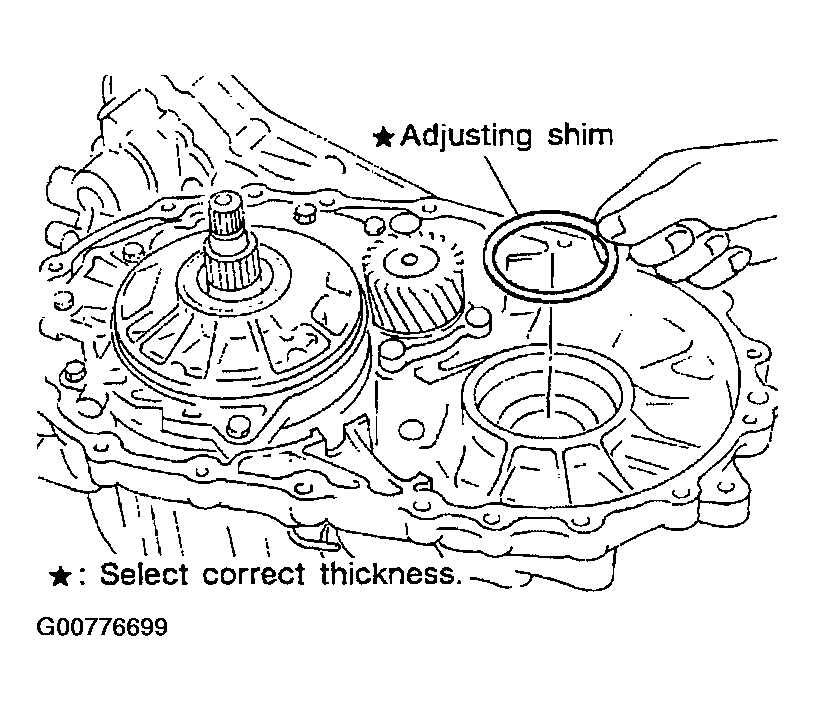

3. Remove adjusting shim.

  Fig 57: Disassembly (57 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Remove output shaft assembly.

  Fig 58: Disassembly (58 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
  - If output shaft assembly came off with side cover, tap cover with a soft hammer to separate.

    Fig 59: Disassembly (59 Of 67)
    Courtesy of NISSAN MOTOR CO., U.S.A.
5. Remove needle bearing.

  Fig 60: Disassembly (60 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Disassemble reduction pinion gear according to the following procedures.
1. Set manual shaft to position P to fix idler gear.
2. Unlock idler gear lock nut using a pin punch.

  Fig 61: Disassembly (61 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Remove idler gear lock nut.
  - Do not reuse idler gear lock nut.

    Fig 62: Disassembly (62 Of 67)
    Courtesy of NISSAN MOTOR CO., U.S.A.

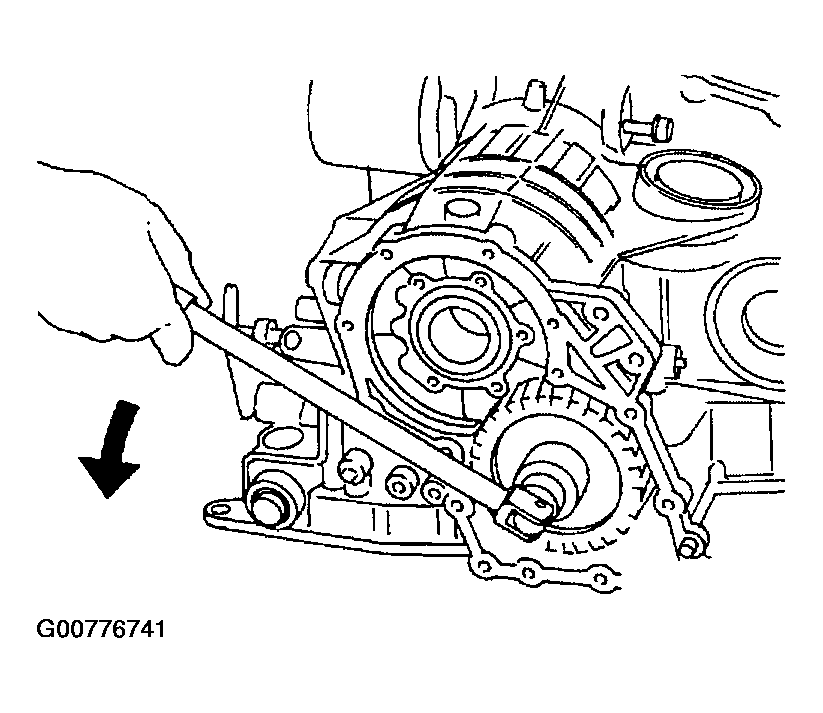

4. Remove idler gear with puller.

  Fig 63: Disassembly (63 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.

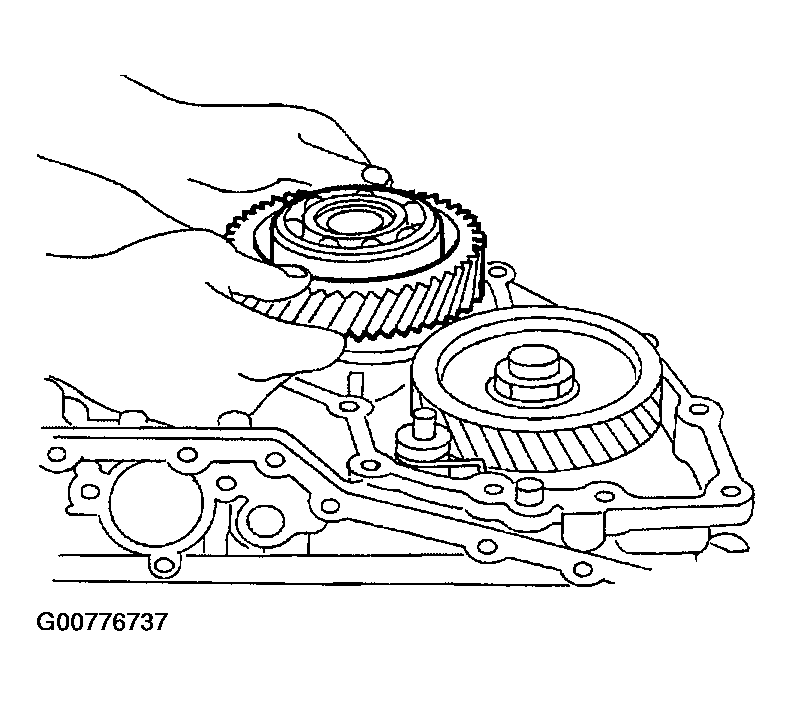

5. Remove reduction pinion gear.
6. Remove adjusting shim from reduction pinion gear.

  Fig 64: Disassembly (64 Of 67)
  Courtesy of NISSAN MOTOR CO., U.S.A.

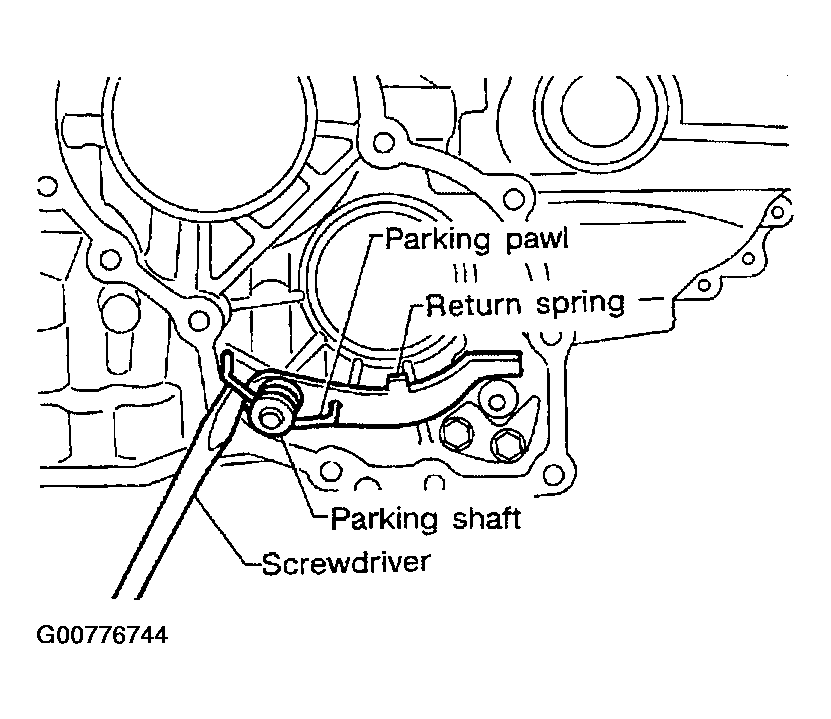

Remove return spring from parking shaft with screwdriver.
Draw out parking shaft and remove parking pawl from transmission case.
Check parking pawl and shaft for damage or wear.

Fig 65: Disassembly (65 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking actuator support from transmission case.
Check parking actuator support for damage or wear.

Fig 66: Disassembly (66 Of 67)
Courtesy of NISSAN MOTOR CO., U.S.A.

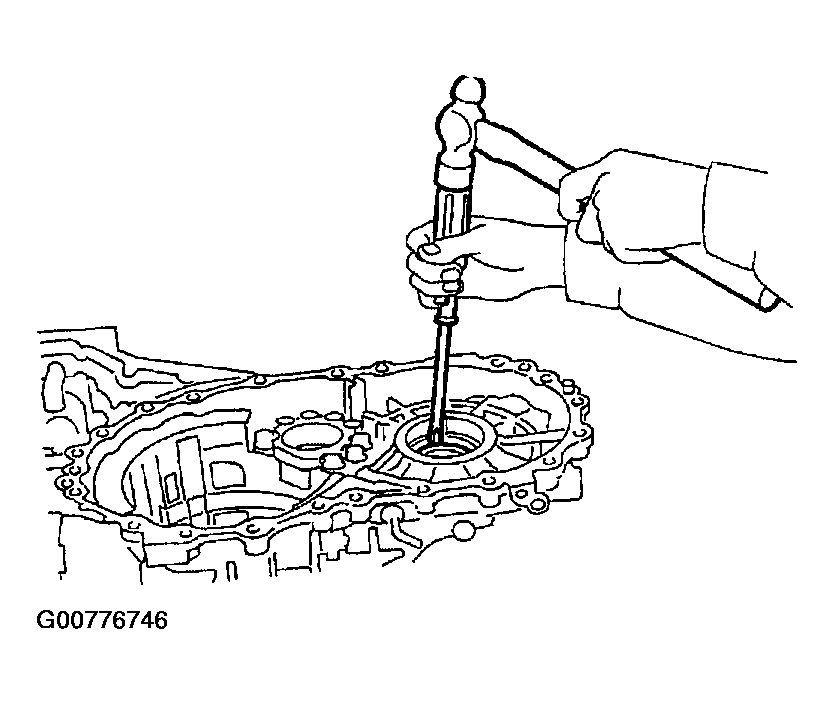

Remove side oil seal with screwdriver from transmission case.

Fig 67: Disassembly (67 Of 67)
