Function Of Control Valves

WARNING: This page is about a different variant/trim than selected.

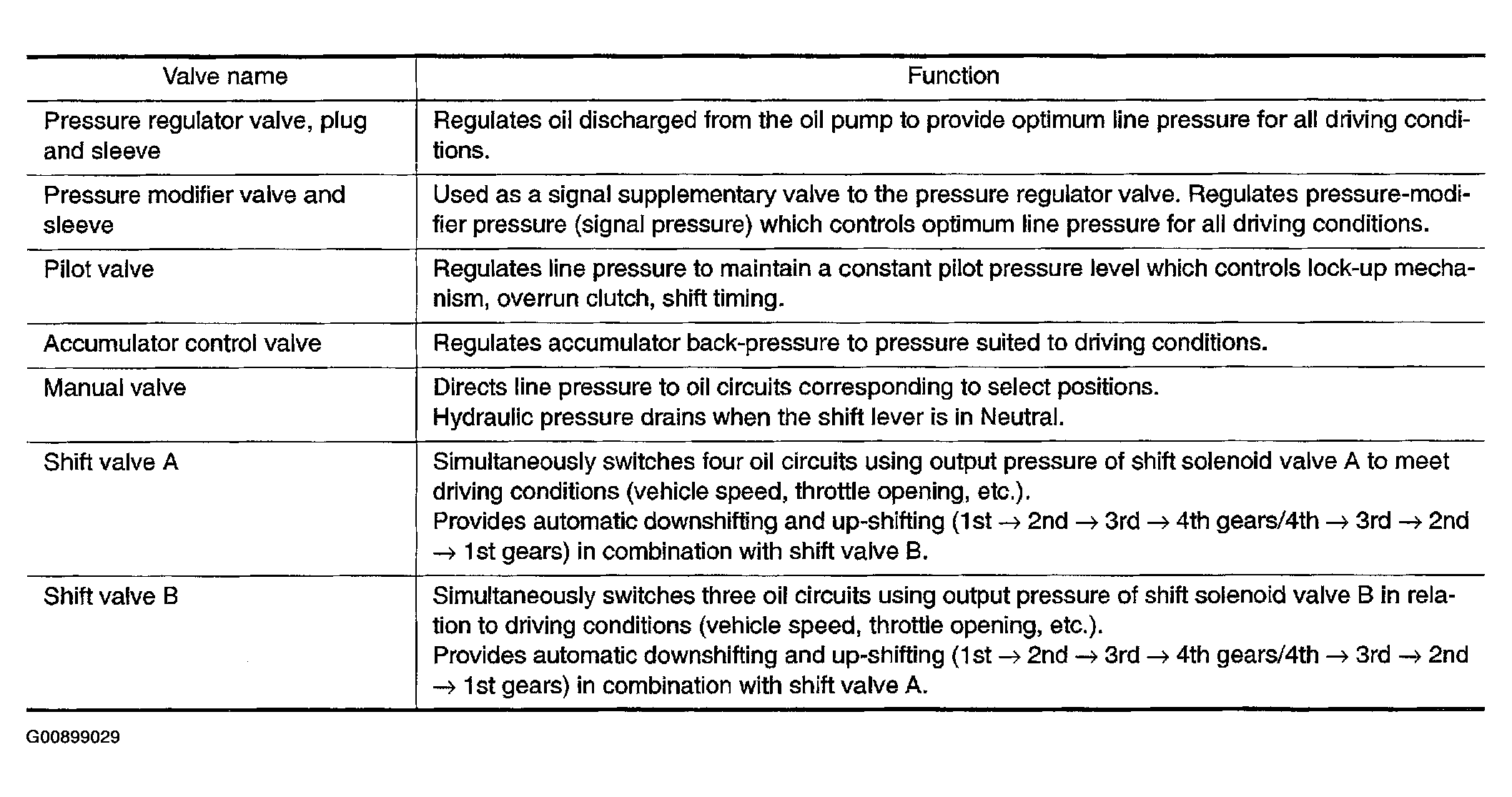

Fig 1: Control Valve Function Chart (1 Of 2)
G00899029Courtesy of NISSAN MOTOR CO., U.S.A.

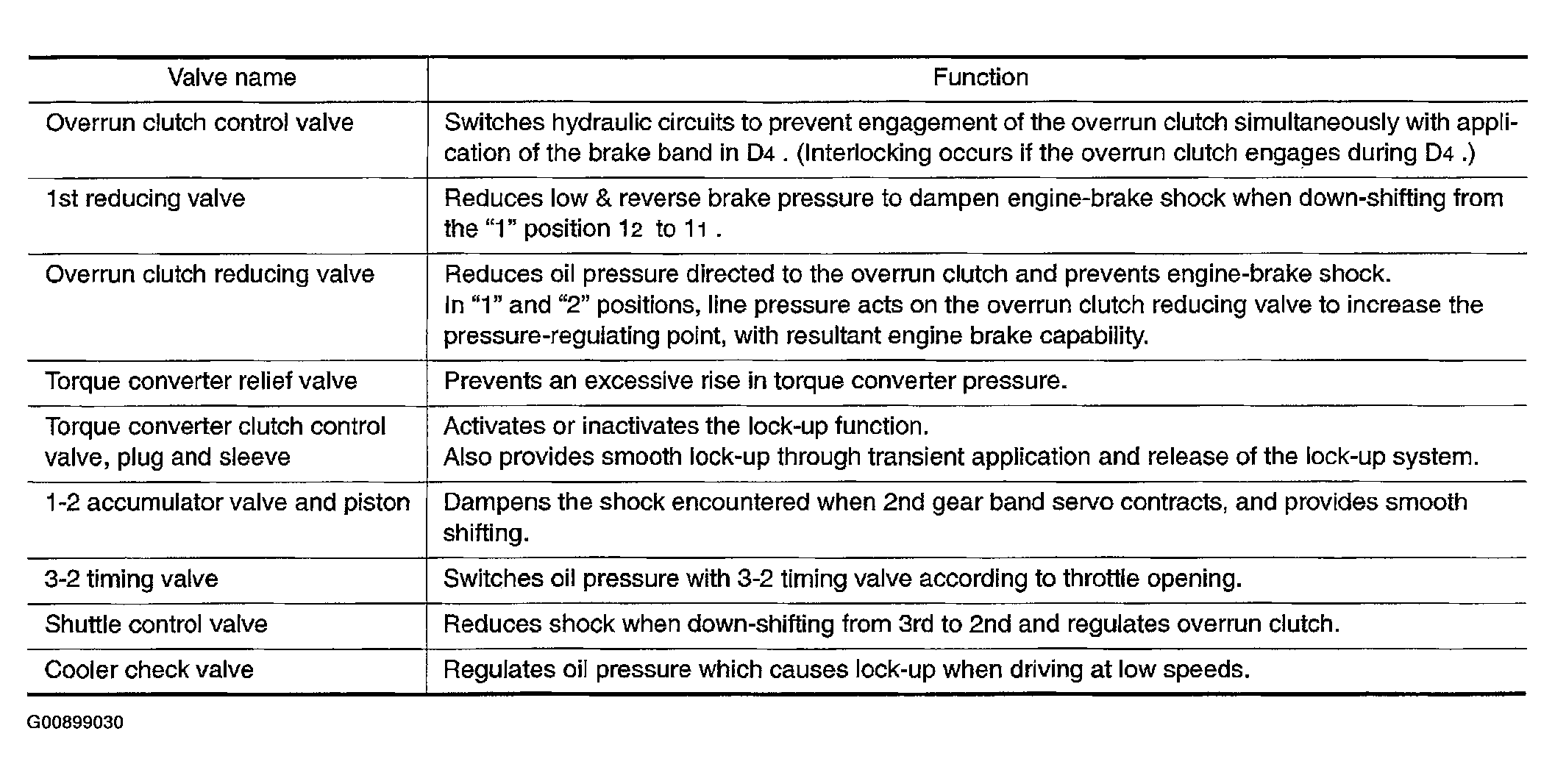

Fig 2: Control Valve Function Chart (2 Of 2)
G00899030Courtesy of NISSAN MOTOR CO., U.S.A.
