Section 8 (Automatic Transaxle - Re4F03B)
›
Overall System
›
Cross-sectional View
Cross-sectional View
WARNING:
This page is about a different variant/trim than selected.

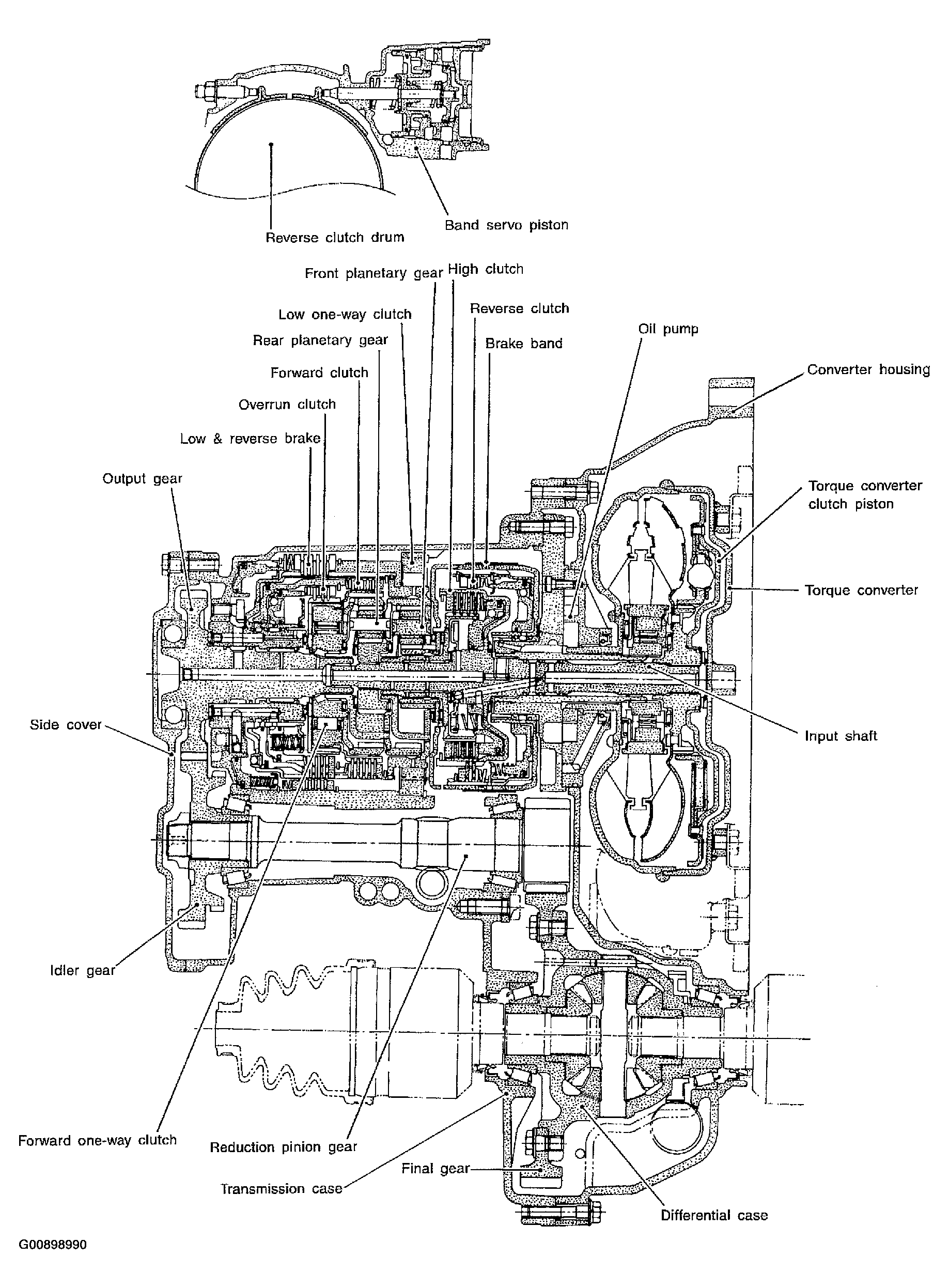

Fig 1: Cross-Sectional View Of A/T
Courtesy of NISSAN MOTOR CO., U.S.A.
