Shift Mechanism: Construction
WARNING:
This page is about a different variant/trim than selected.

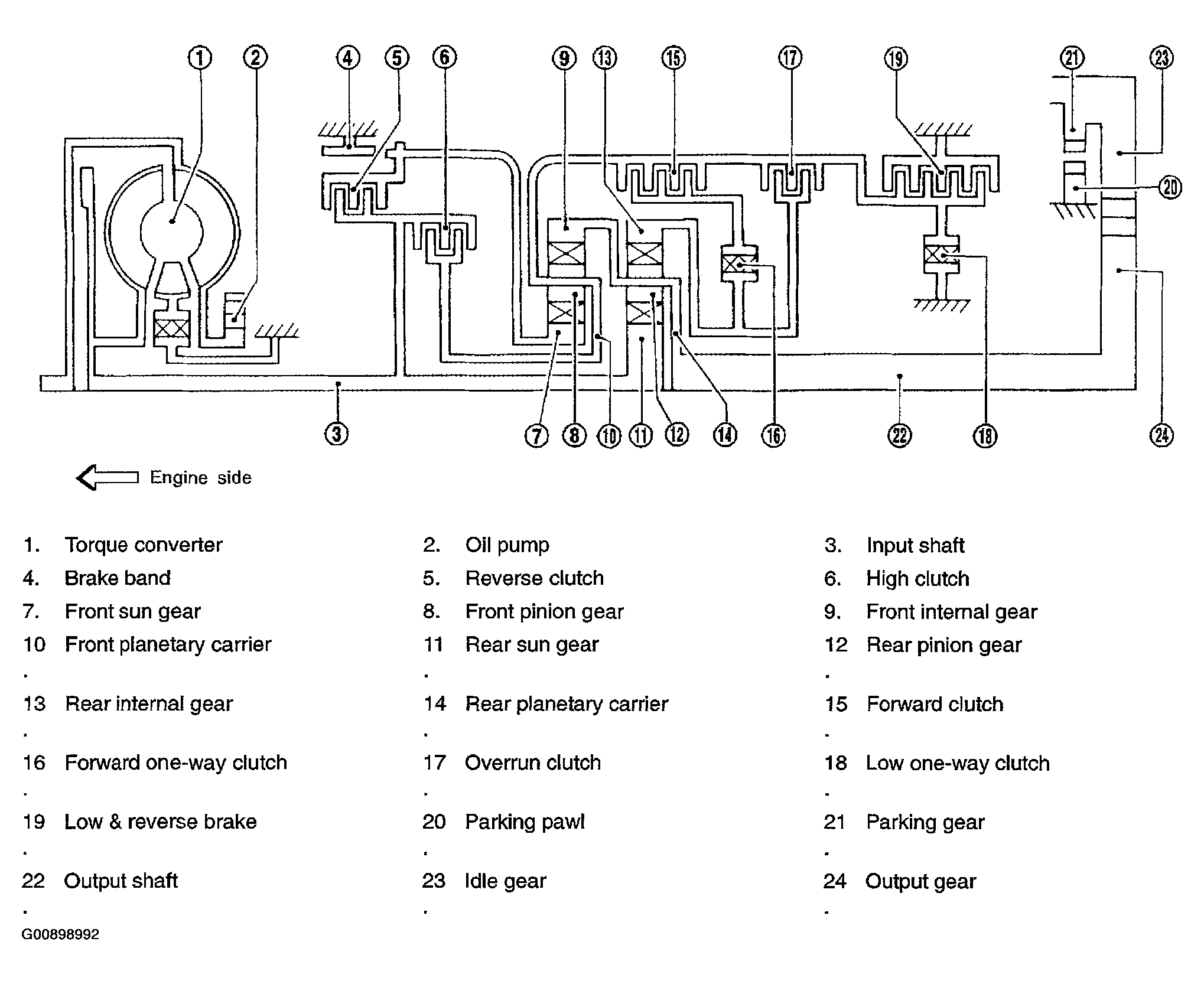

Fig 1: Identifying Shift Mechanism Construction
Courtesy of NISSAN MOTOR CO., U.S.A.
