Nissan-Datsun
›
2004
›
Sentra SE-R Spec V
›
Repair and Diagnosis
›
Transmission
›
Clutch System - RS6F51H
›
Operating Cylinder
›
Components
Operating Cylinder: Components

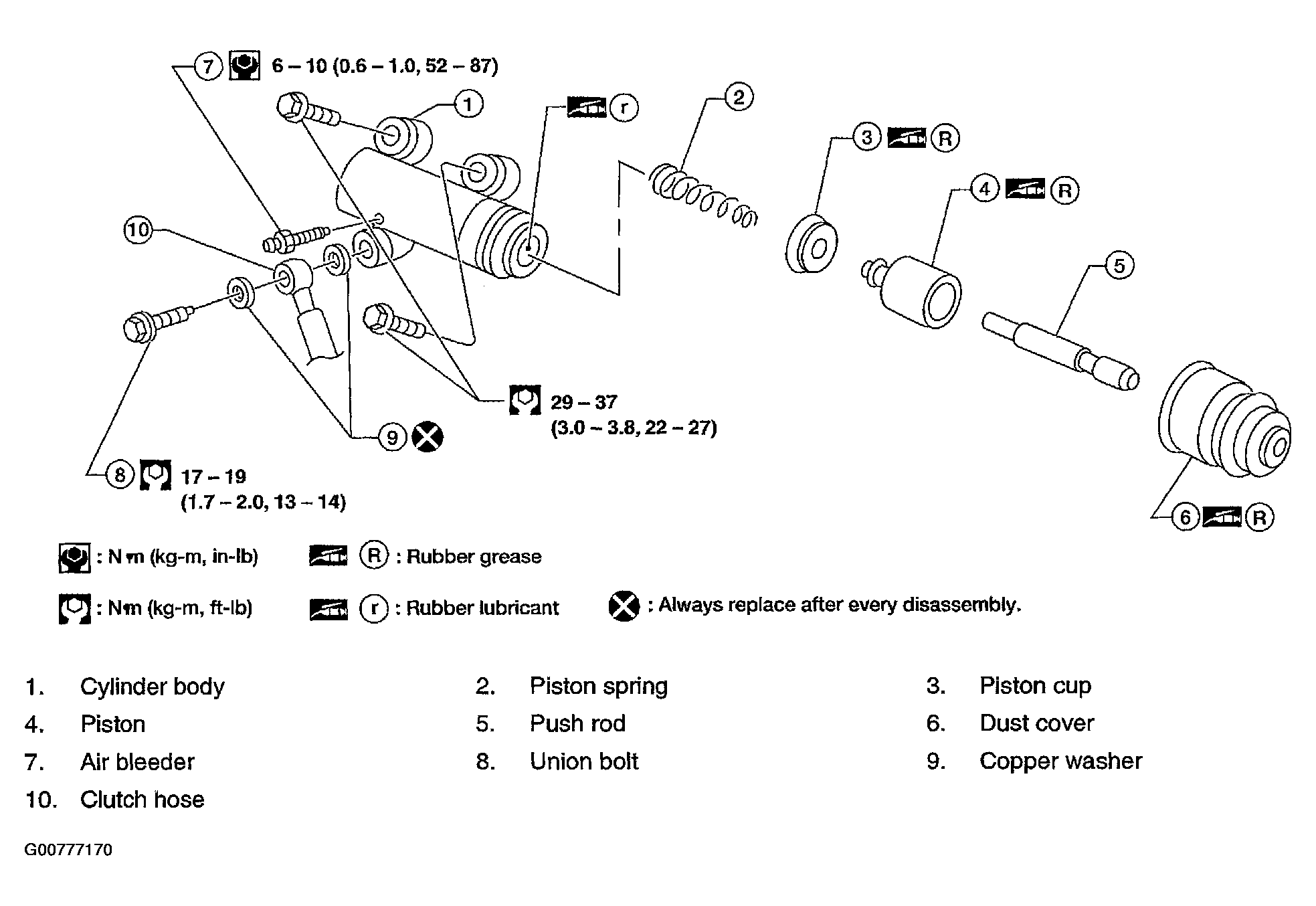

Fig 1: Identifying Operating Cylinder Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
