Shift Control Components
Shift Control Components

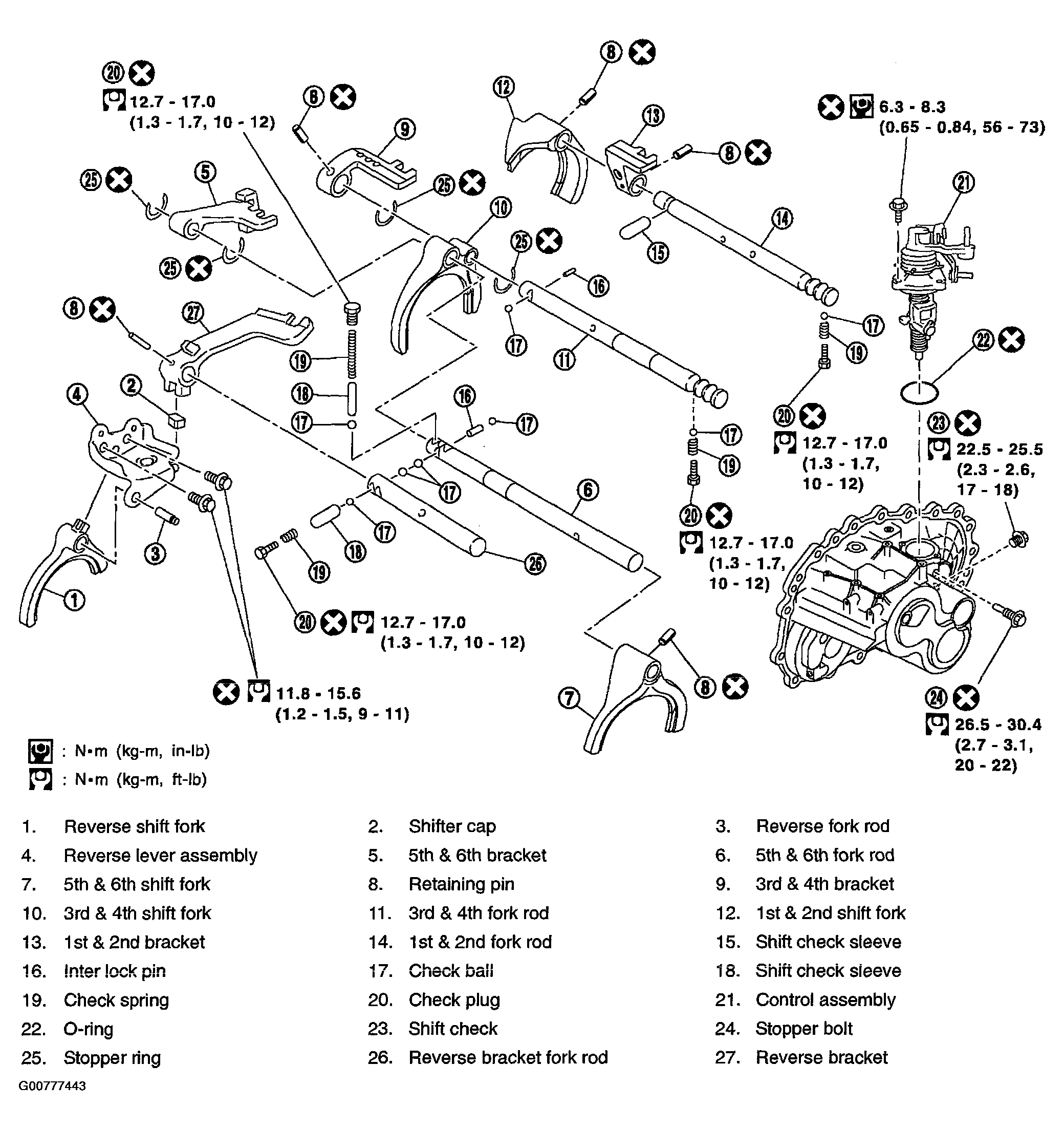

Fig 1: Identifying Shift Control Components And Tightening Torques
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
