Remote Keyless Entry System
›
Remote Keyless Entry System
›
Component Parts and Harness Connector Location
Component Parts and Harness Connector Location

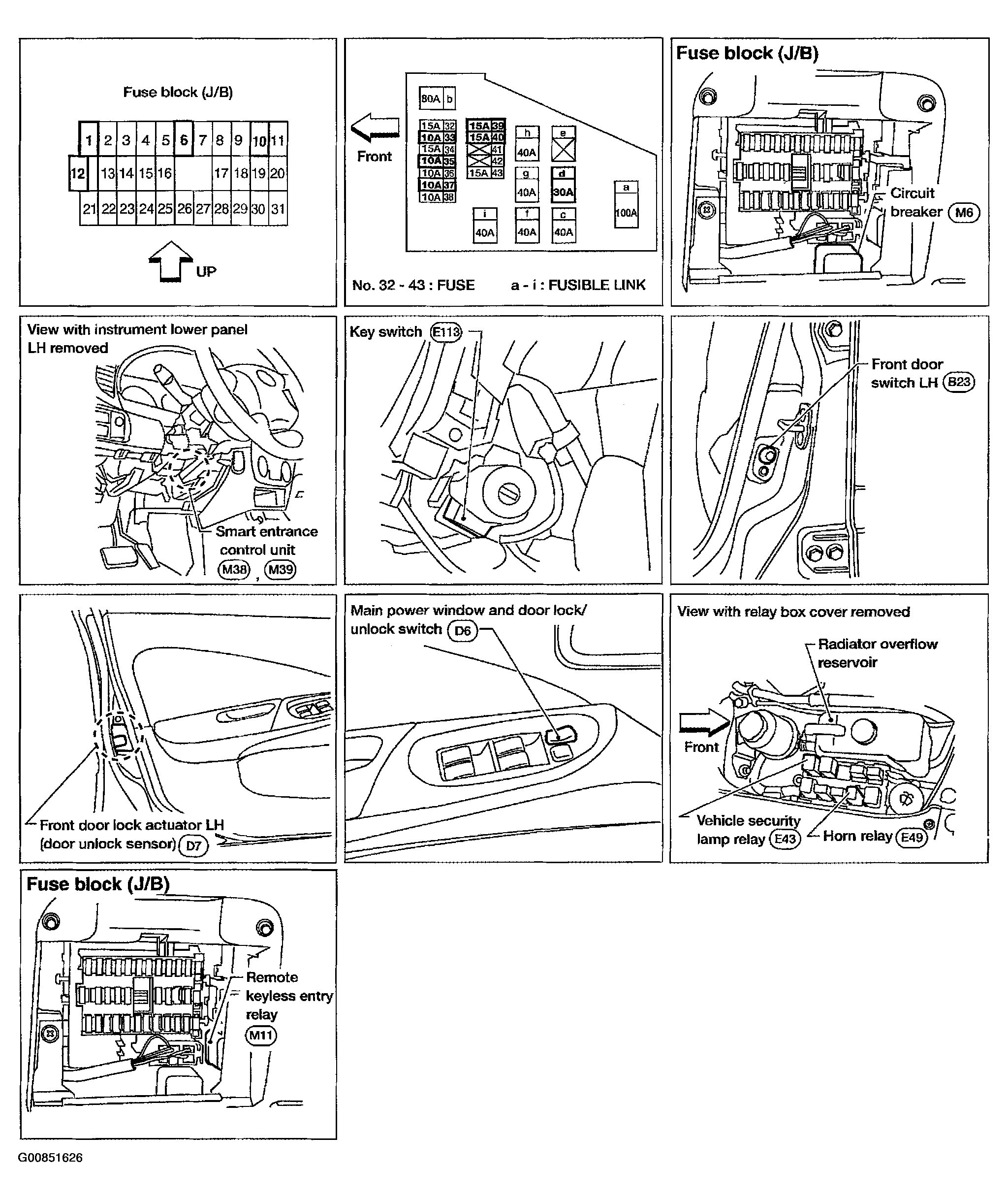

Fig 1: Locating Component Parts And Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
