Brake Control System - Abs & Abs/TCS
›
Trouble Diagnosis-General Description
›
Malfunction Code/Symptom Chart
Malfunction Code/Symptom Chart

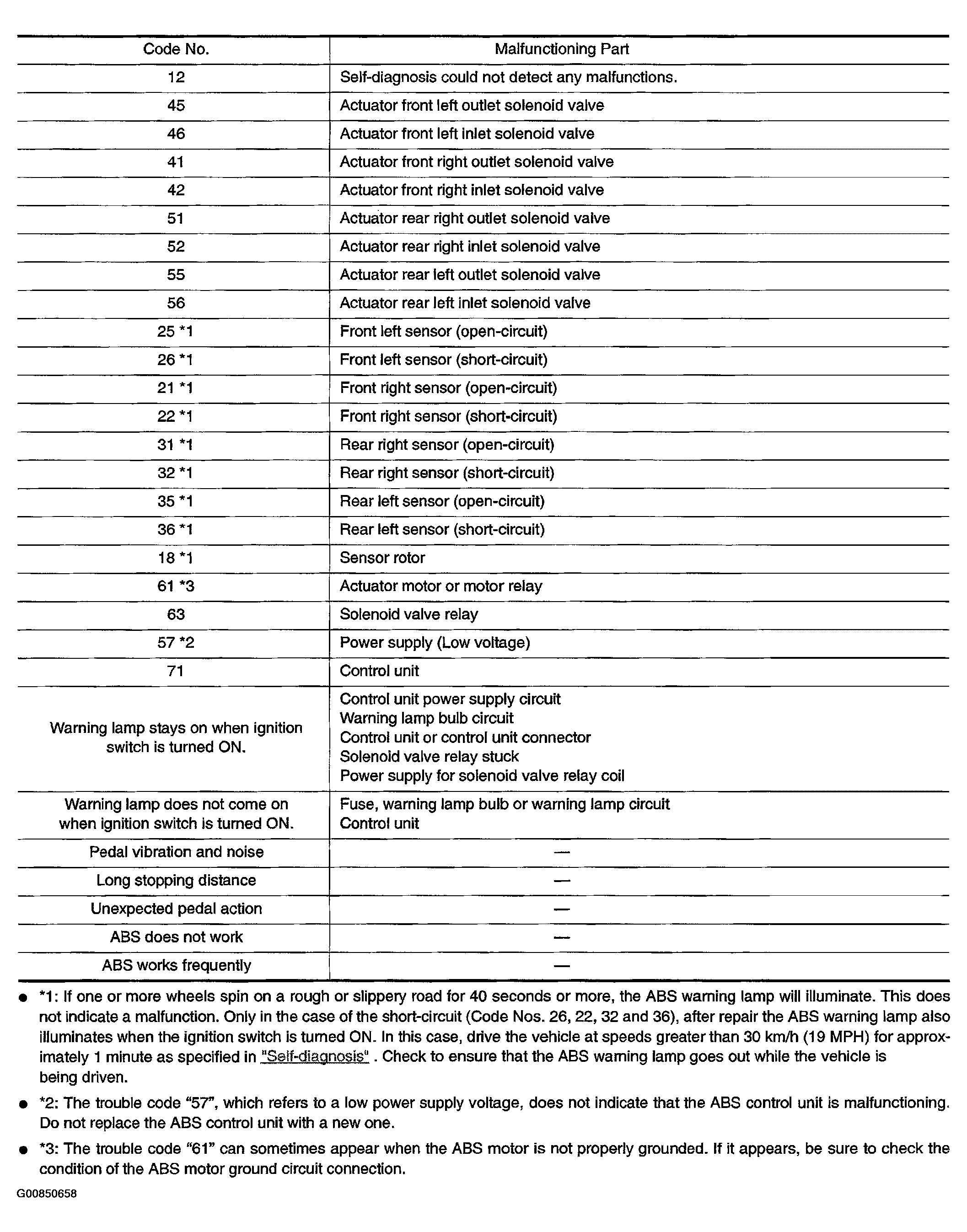

Fig 1: Identifying Malfunction Code/Symptom Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
