Home › Nissan-Datsun › 2004 › Sentra SE-R › Repair and Diagnosis › Drivelines & Axles › Axle Shafts › Front Axle › Wheel Hub And Knuckle › Components

Wheel Hub And Knuckle: Components

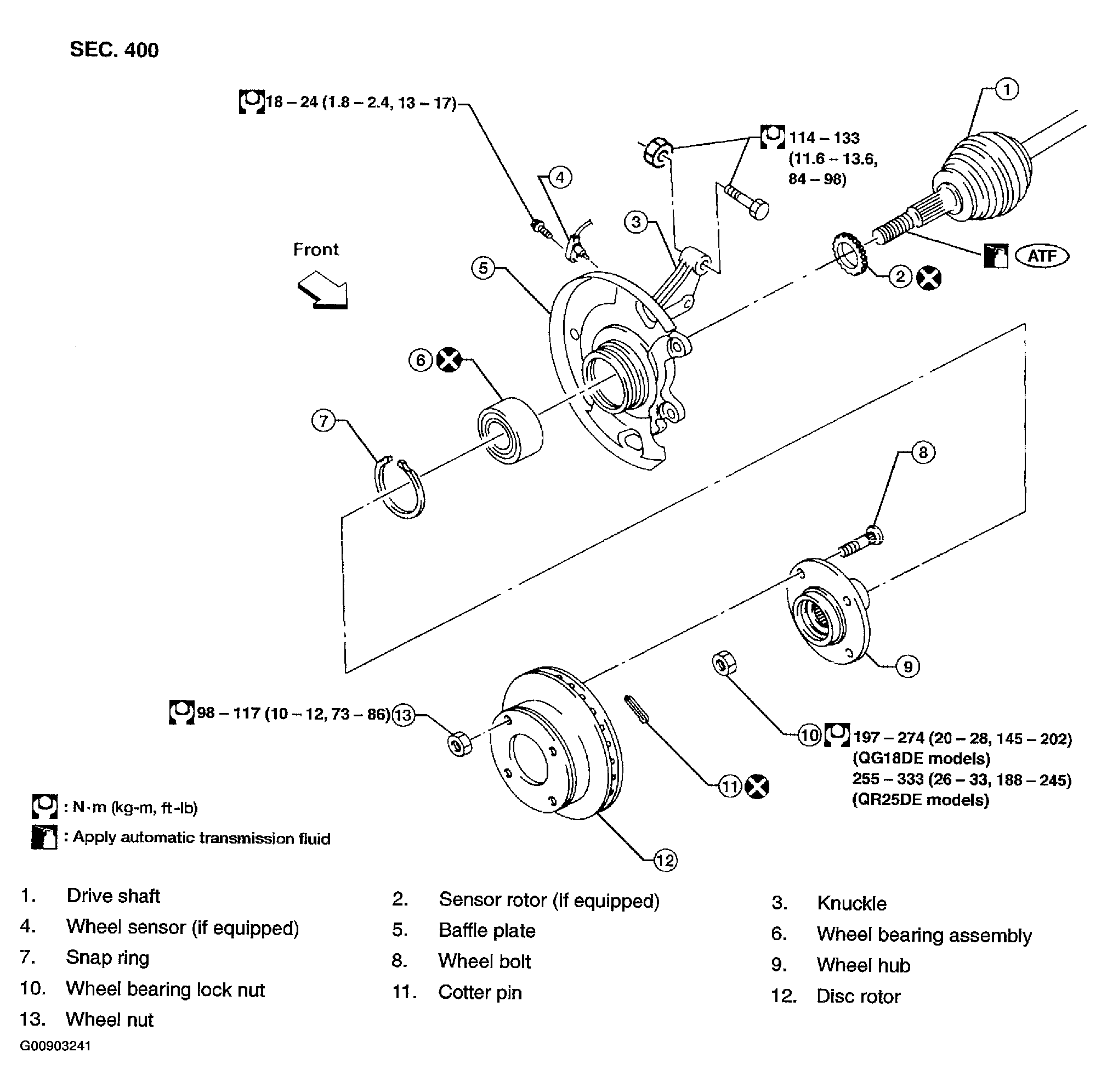

Fig 1: Identifying Wheel Hub And Knuckle Components
G00903241Courtesy of NISSAN MOTOR CO., U.S.A.
