Support Bearing

  1. Install bearing into retainer.
    Fig 1: Installing Bearing Into Retainer
    G00903281Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install dust shield.
  3. Install snap ring.
  4. Press drive shaft into bearing.
    Fig 2: Pressing Drive Shaft Into Bearing
    G00903282Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install snap ring.
  6. Install new dust shield.

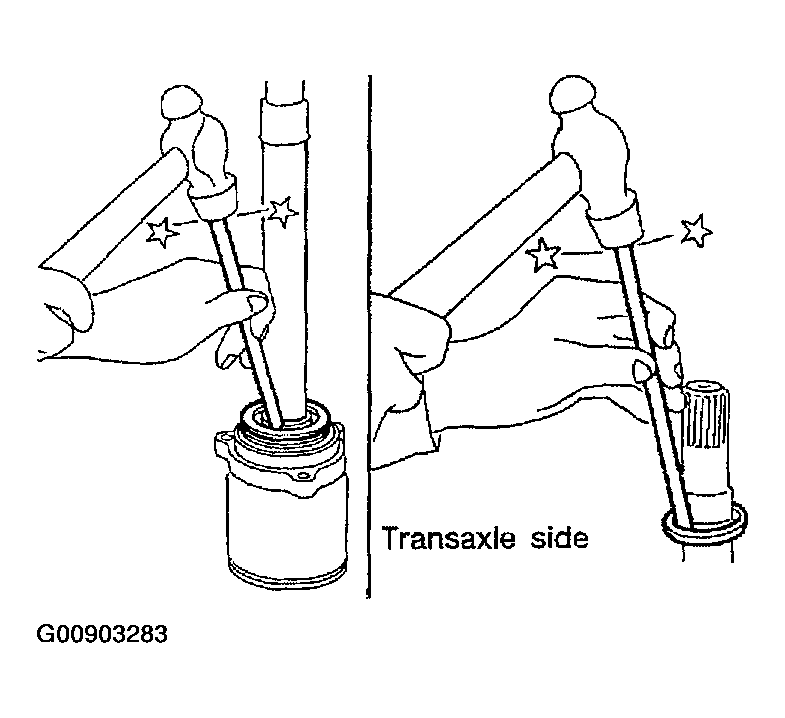

    Fig 3: Installing New Dust Shield
    G00903283Courtesy of NISSAN MOTOR CO., U.S.A.
