Diagnostic Result Item

NOTE: For work flow, see WORK FLOW , and for trouble diagnoses with Battery/Starting/Charging System Tester, see TROUBLE DIAGNOSES WITH BATTERY/STARTING/CHARGING SYSTEM TESTER .

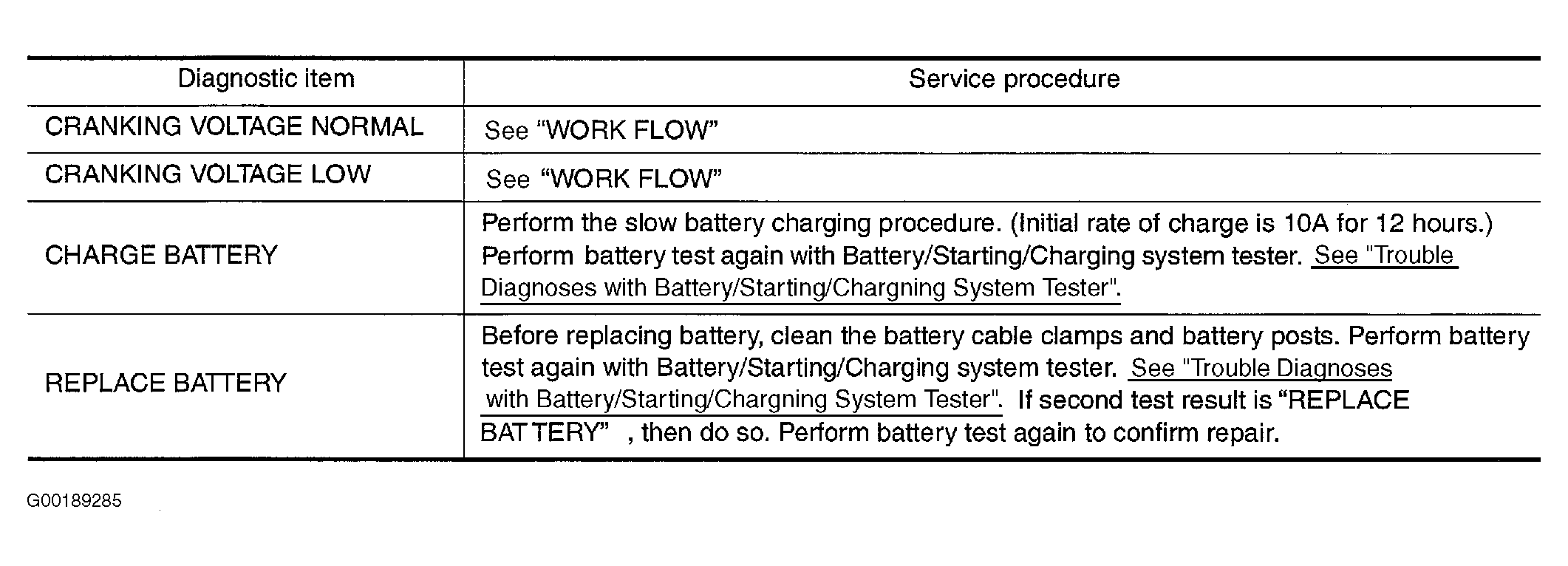

Fig 1: Identifying Diagnostic Result Item

G00189285

Courtesy of NISSAN MOTOR CO., U.S.A.
