Drive Belt Routing: Notes

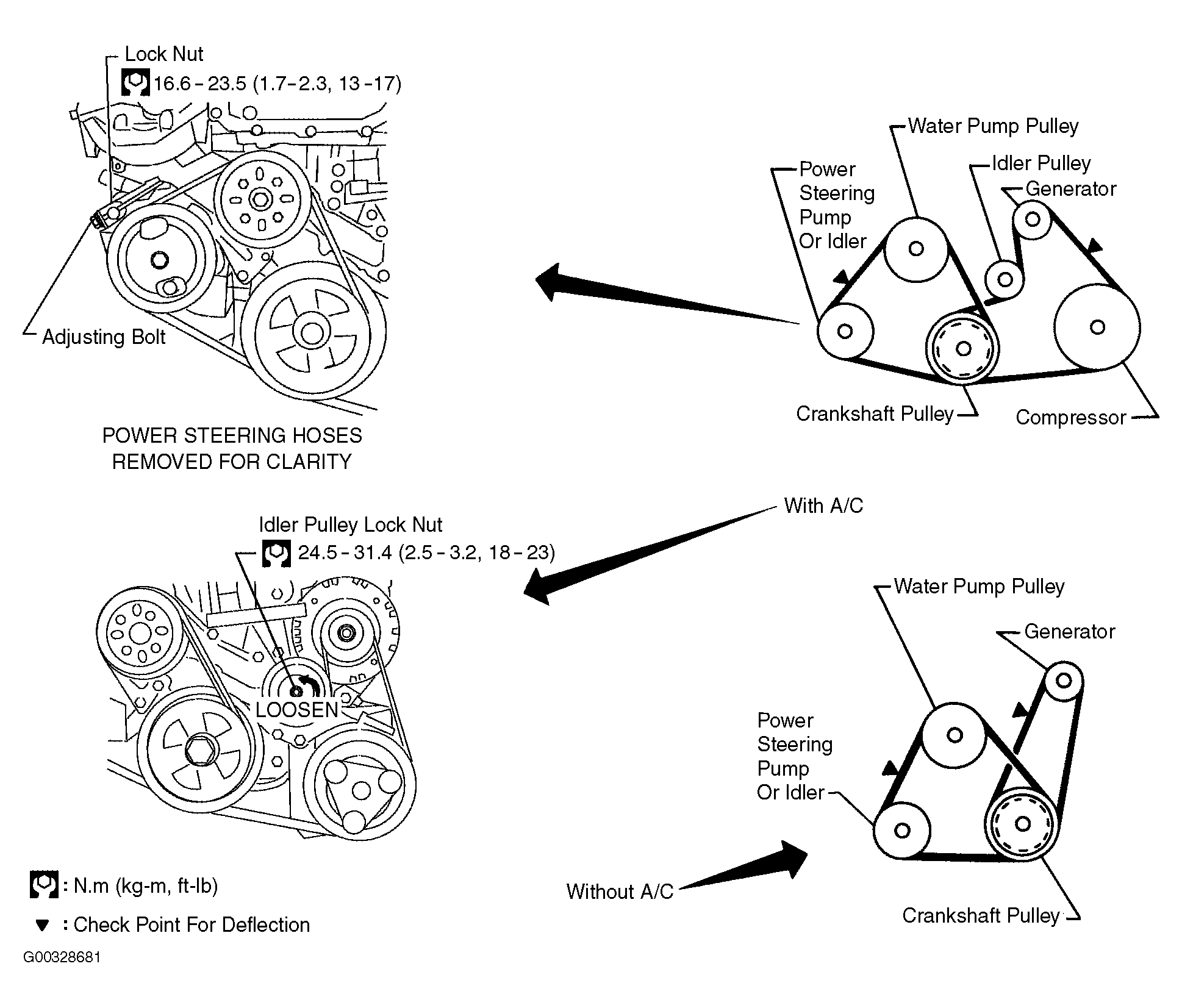

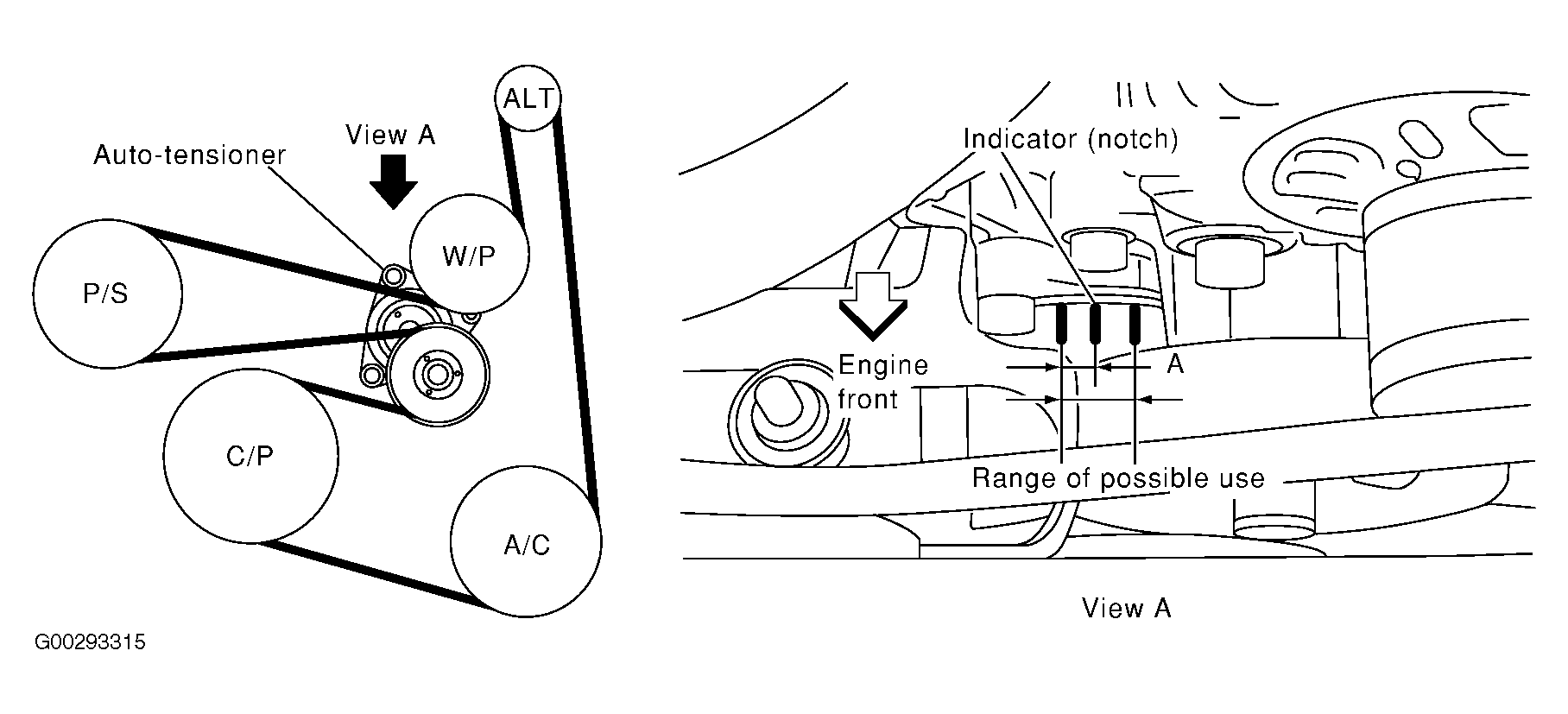

NOTE: Use illustrations to identify drive belt routing. See Figure and Figure .
