Wiring Diagrams

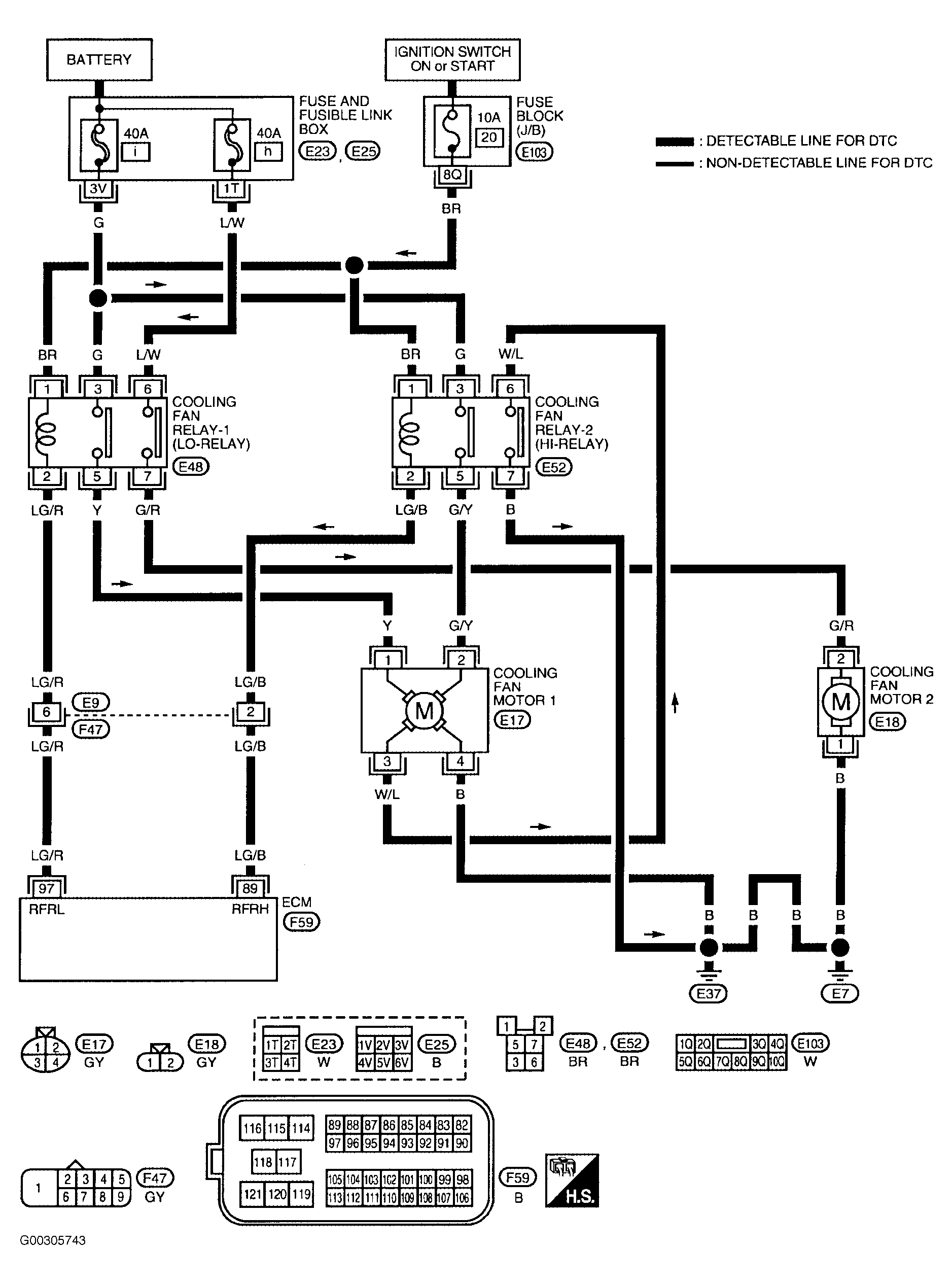

Fig 1: Cooling Fan Circuit Wiring Diagram (2002 1.8L - 1 Of 2)

Fig 2: Cooling Fan Circuit Wiring Diagram (2002 1.8L - 2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

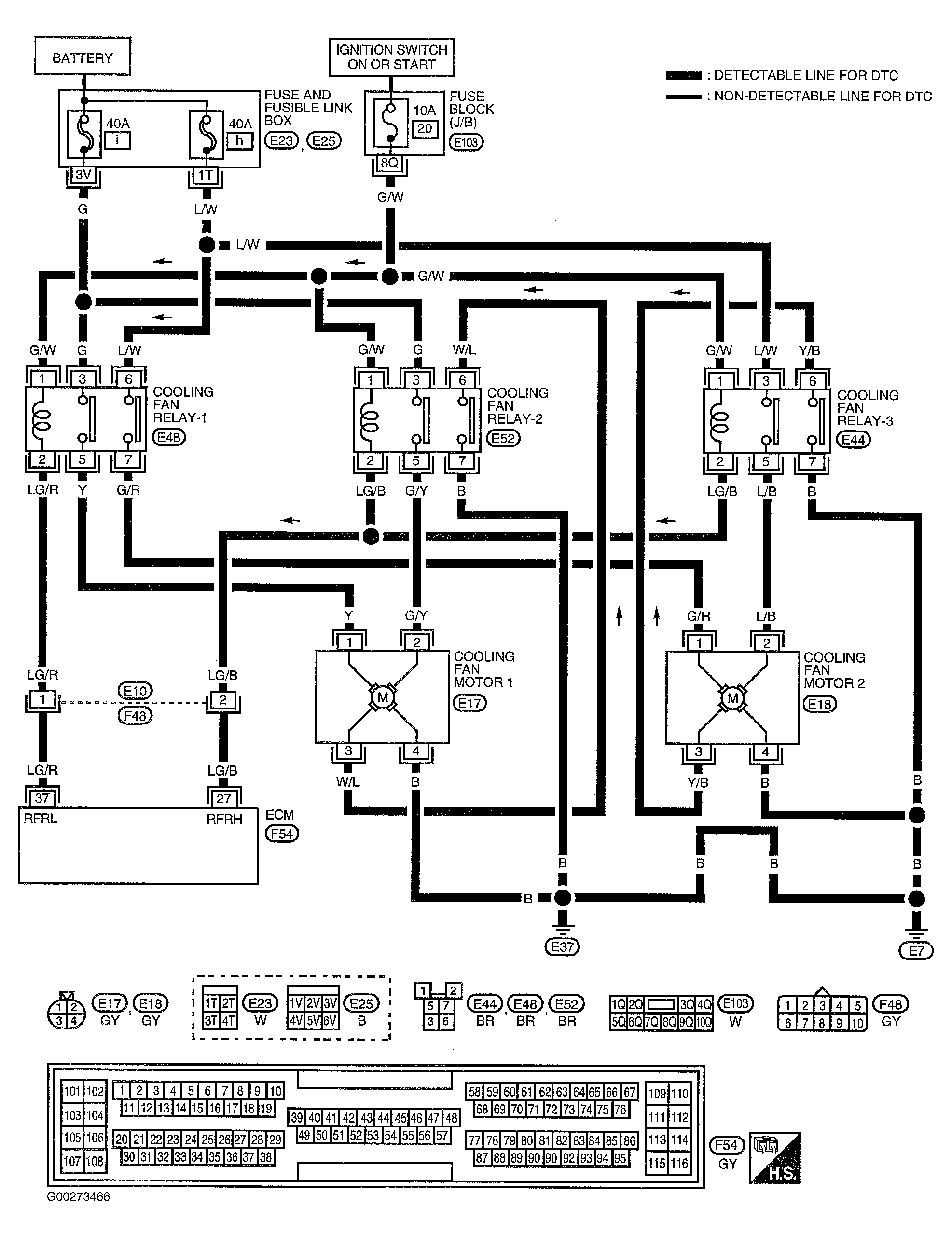

Fig 3: Cooling Fan Circuit Wiring Diagram (2002 2.5L)

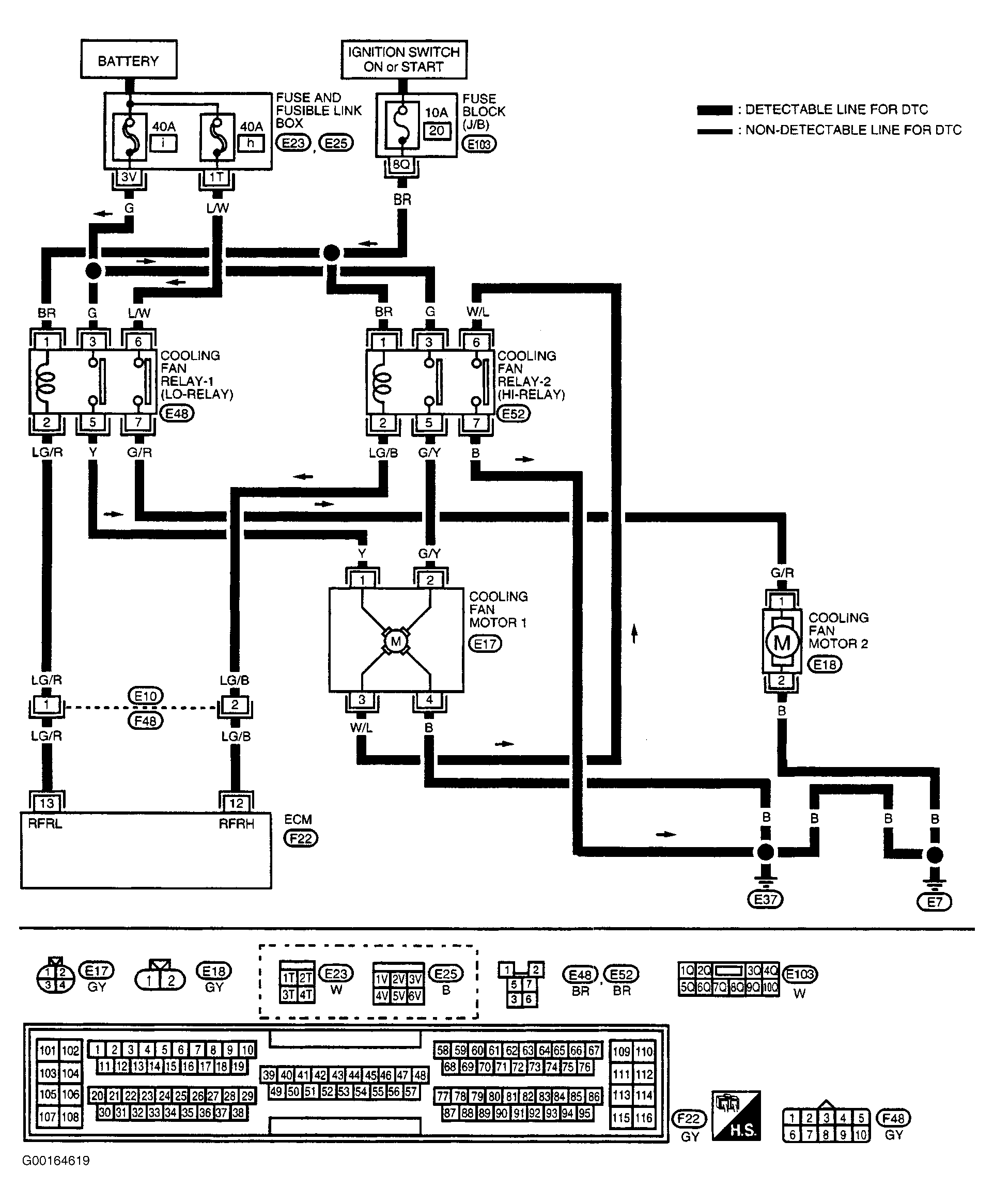

Fig 4: Cooling Fan Circuit Wiring Diagram (2003 1.8L - 1 Of 2)

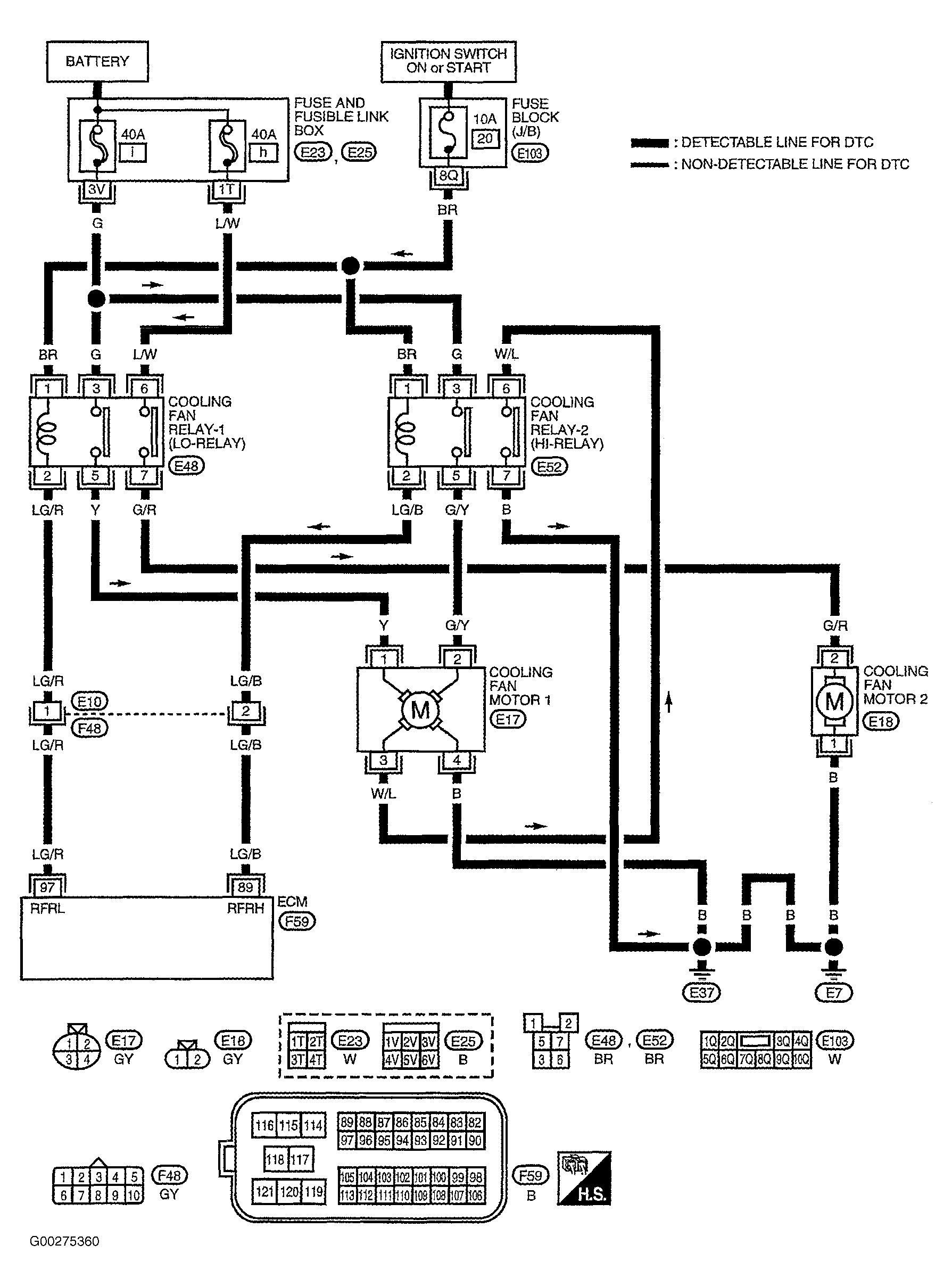

Fig 5: Cooling Fan Circuit Wiring Diagram (2003 1.8L - 2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

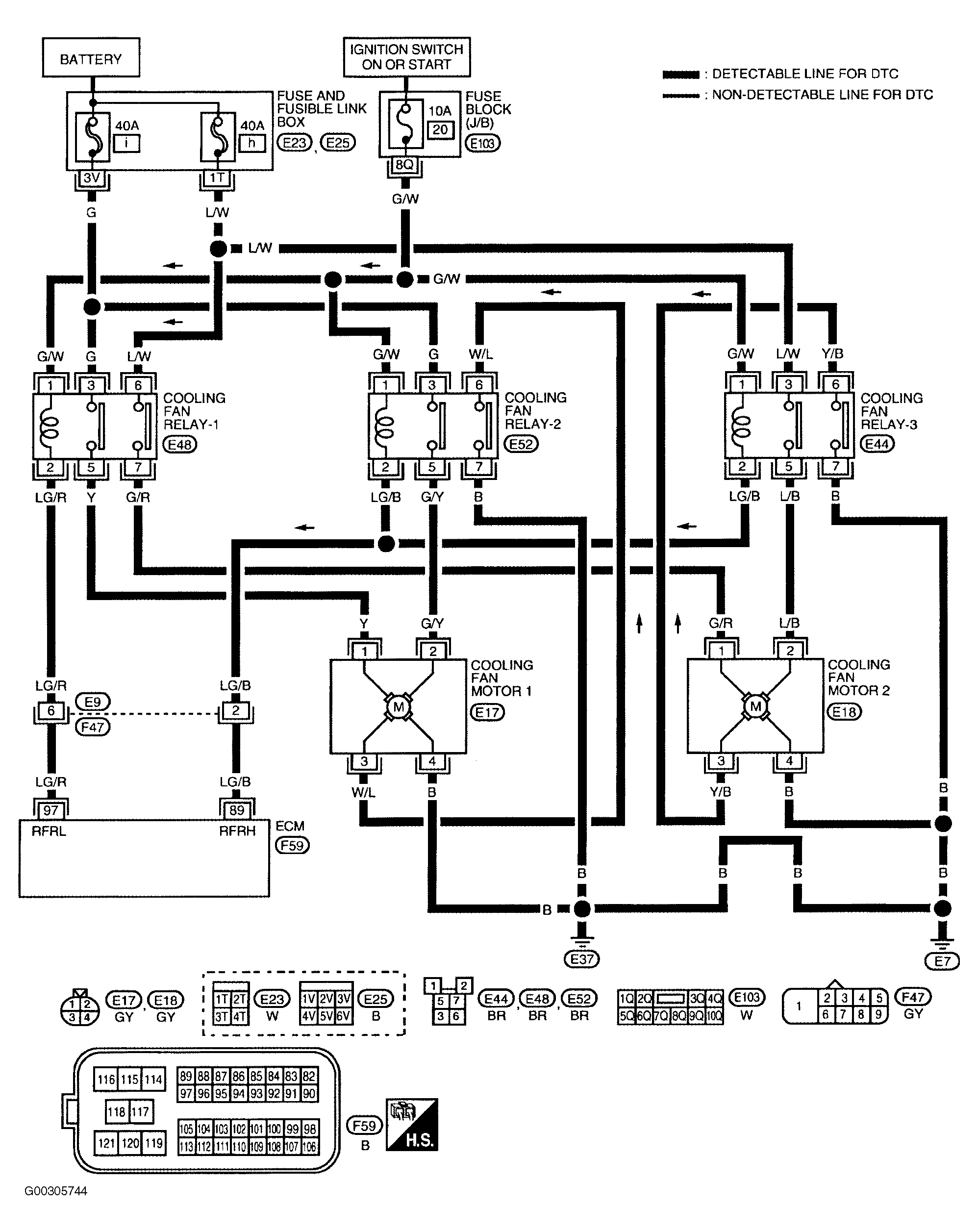

Fig 6: Cooling Fan Circuit Wiring Diagram (2003 2.5L - 1 Of 2)

Fig 7: Cooling Fan Circuit Wiring Diagram (2003 2.5L - 2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Cooling Fan Circuit Wiring Diagram (2004 1.8L)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Cooling Fan Circuit Wiring Diagram (2004 2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.
