Disassembly and Assembly: Notes

NOTE: Flywheel removal may require use of special tool J-46531 (TP55 Torx Plus driver) for M/T flywheel bolts. See ESSENTIAL TOOL: TORX DRIVER FOR FLYWHEEL BOLTS for more information.

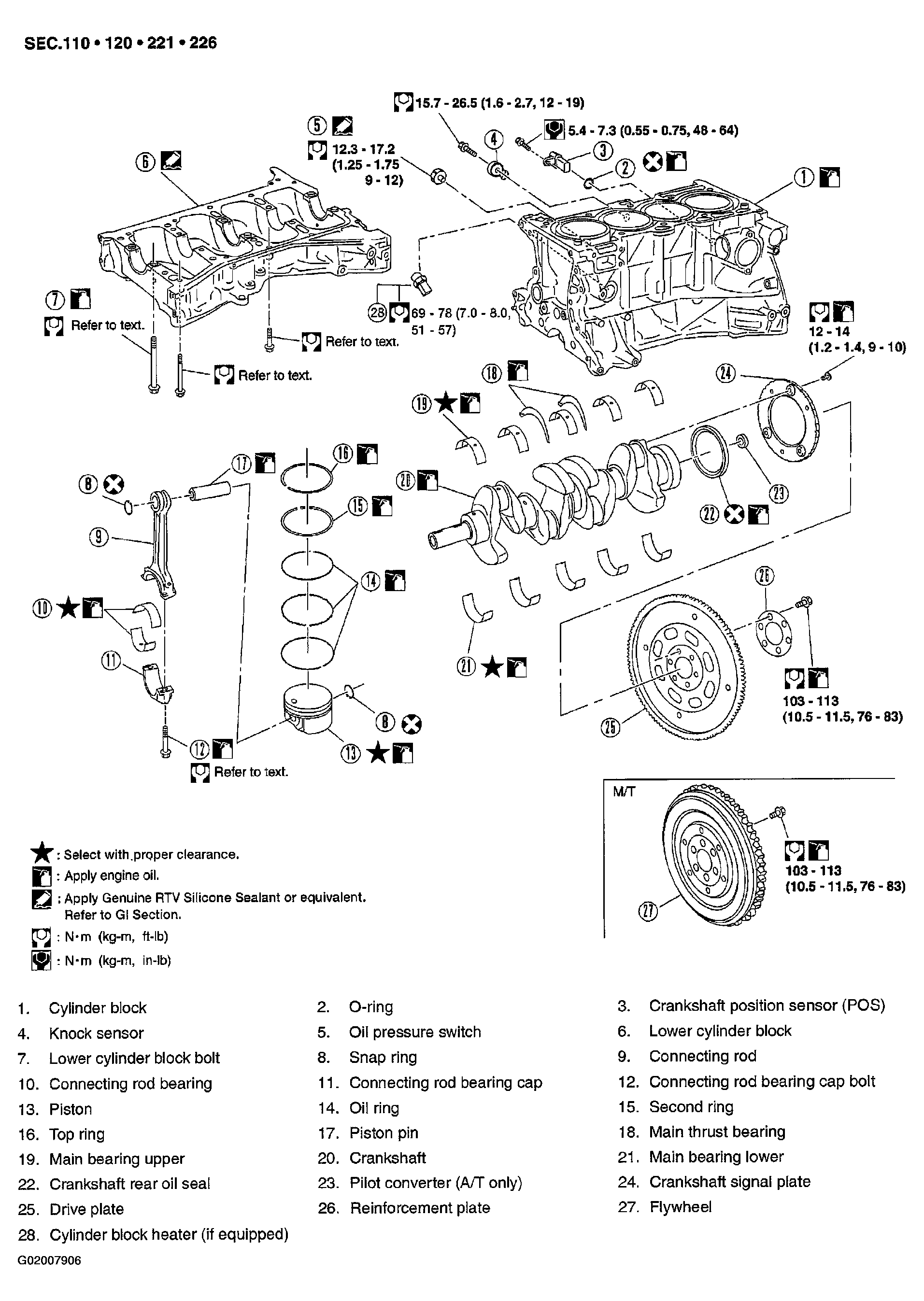

Fig 1: Exploded View Of Cylinder Block

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Apply new engine oil to parts marked in illustration before installation.
