Removal and Installation: Notes

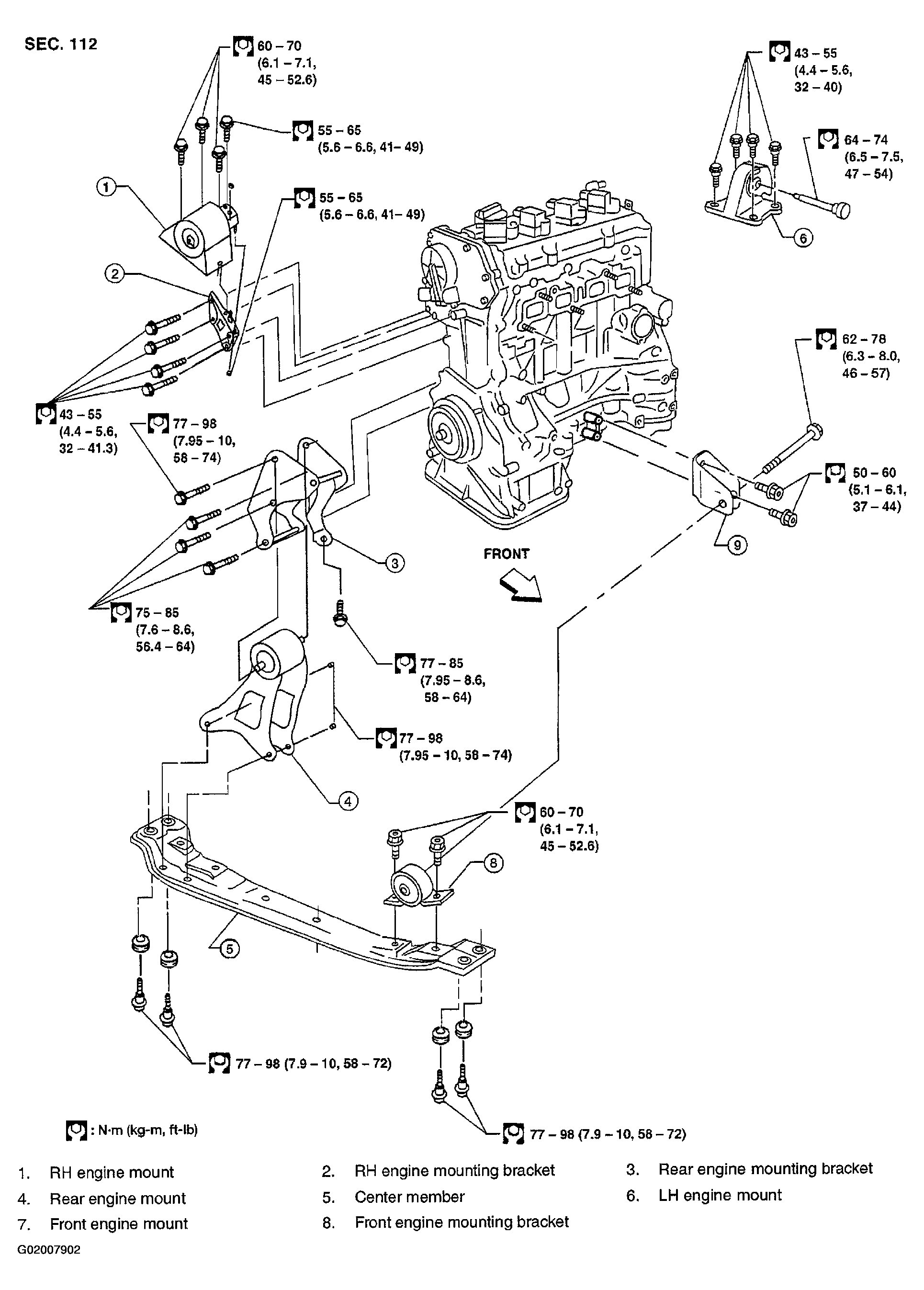

Fig 1: Exploded View Of Engine Mounts & Transmission Mounts With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING:

• Place chocks at the front and back of the rear wheels.
• For engines not equipped with slingers, attach proper slingers and bolts as described in the parts catalog.

CAUTION:

• Do not start working until the exhaust system and coolant are cool.
• If items or work required are not covered by the engine main body section, refer to the applicable sections.
• Use the correct supporting points for lifting and jacking. Refer to LIFTING POINT & TOW TRUCK TOWING .
• In removing the drive shaft, be careful not to damage the grease seals on the transaxle.
• Before separating the engine and transaxle, remove the crankshaft position sensor (POS) from the assembly.
• Be sure not to damage the edge of the crankshaft position sensor (POS) or the ring gear teeth.
