Removal and Installation: Notes

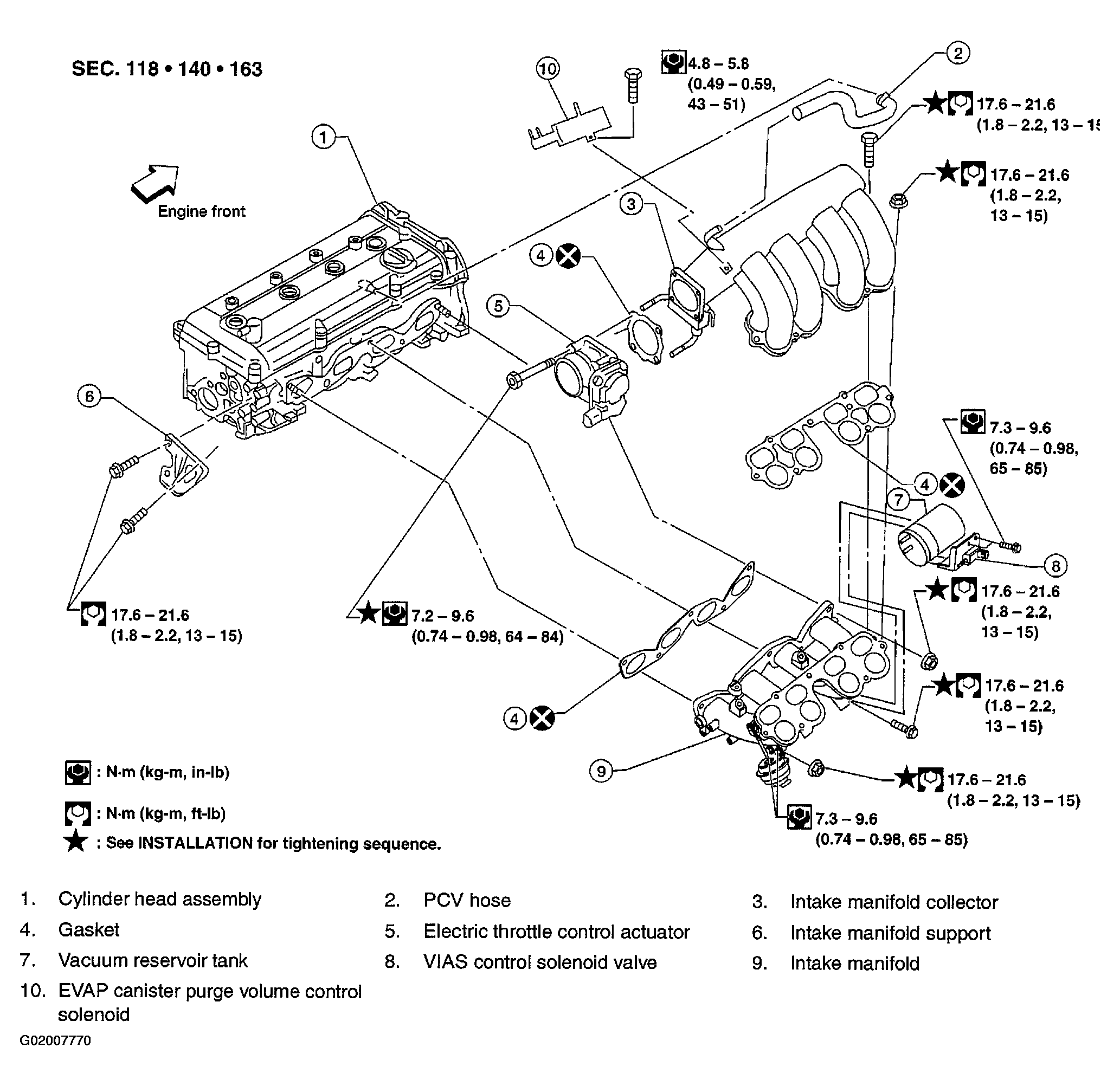

Fig 1: Removing & Installing Intake Manifold
G02007770Courtesy of NISSAN MOTOR CO., U.S.A.
