Engine Mechanical - Qr25DE
›
Service Data And Specifications (SDS)
›
Standard And Limit
›
Connecting Rod
Connecting Rod

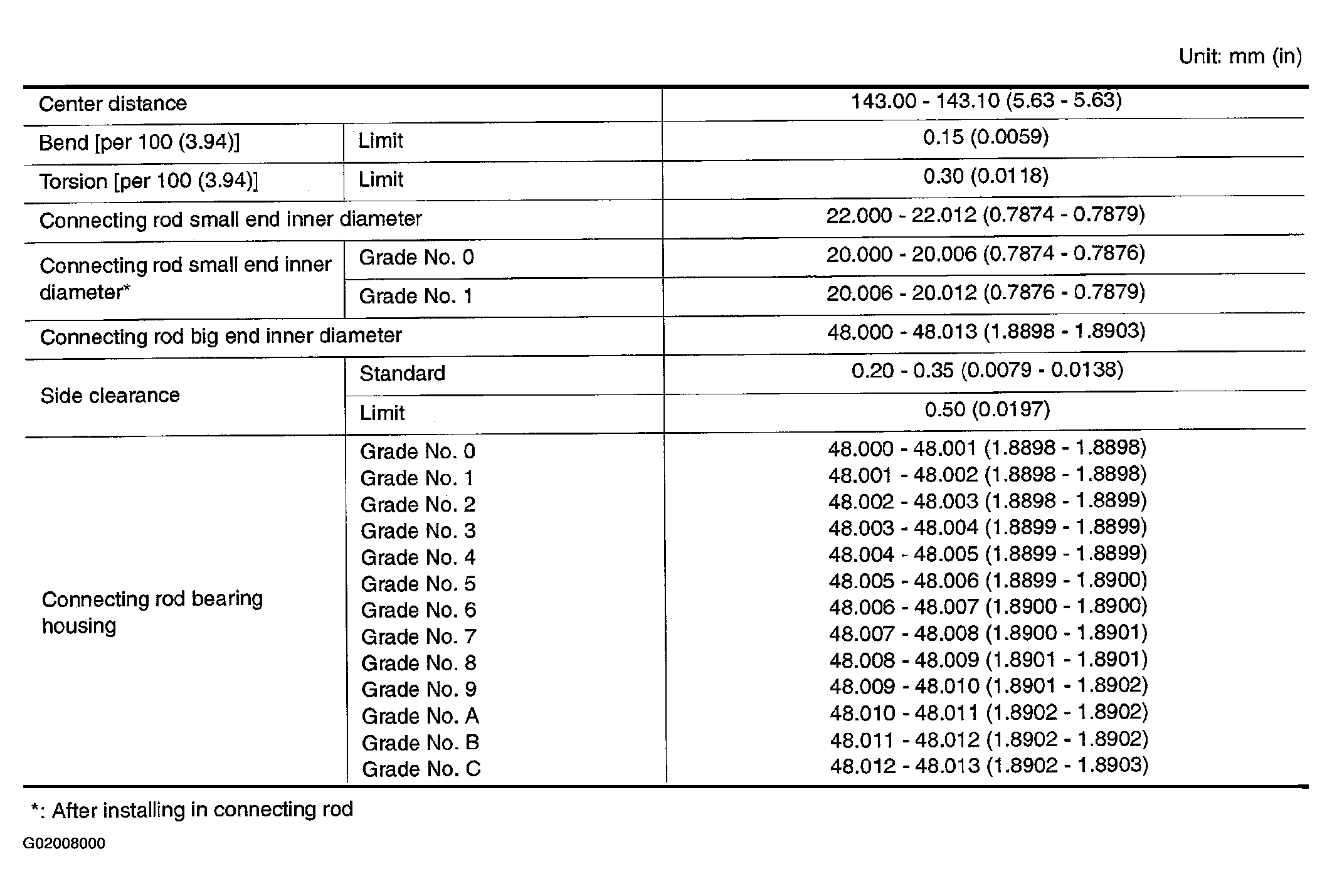

Fig 1: Connecting Rod Specification Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
