Method A

  1. Slide the harness protector of ignition coil No. 1 to clear the wires.
  2. Attach timing light to the wires as shown in the figure.
  3. Check ignition timing.

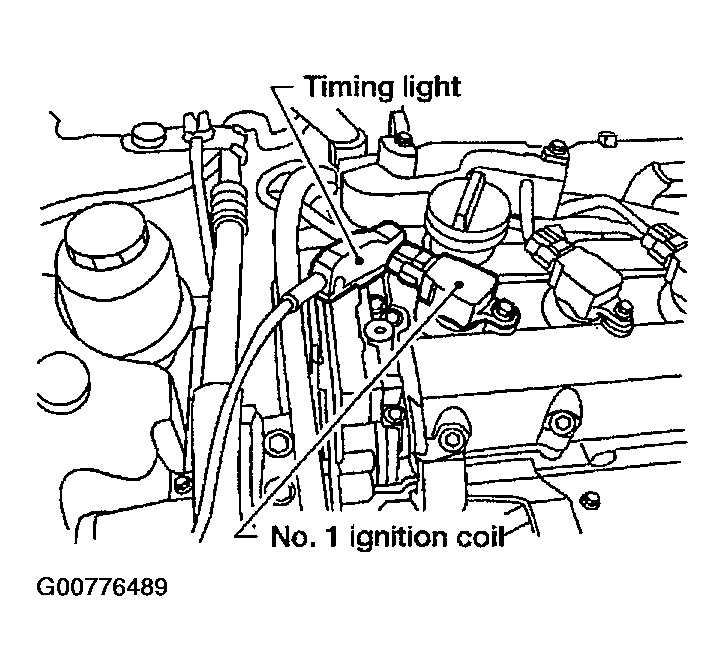

    Fig 1: Attaching Timing Light To Ignition Coil No. 1 Wires
    G00776489Courtesy of NISSAN MOTOR CO., U.S.A.
