Engine Control System - Qr25DE
›
DTC P0171: Fuel Injection System Function
›
Wiring Diagram
›
A/T Models Except ULEV
A/T Models Except ULEV

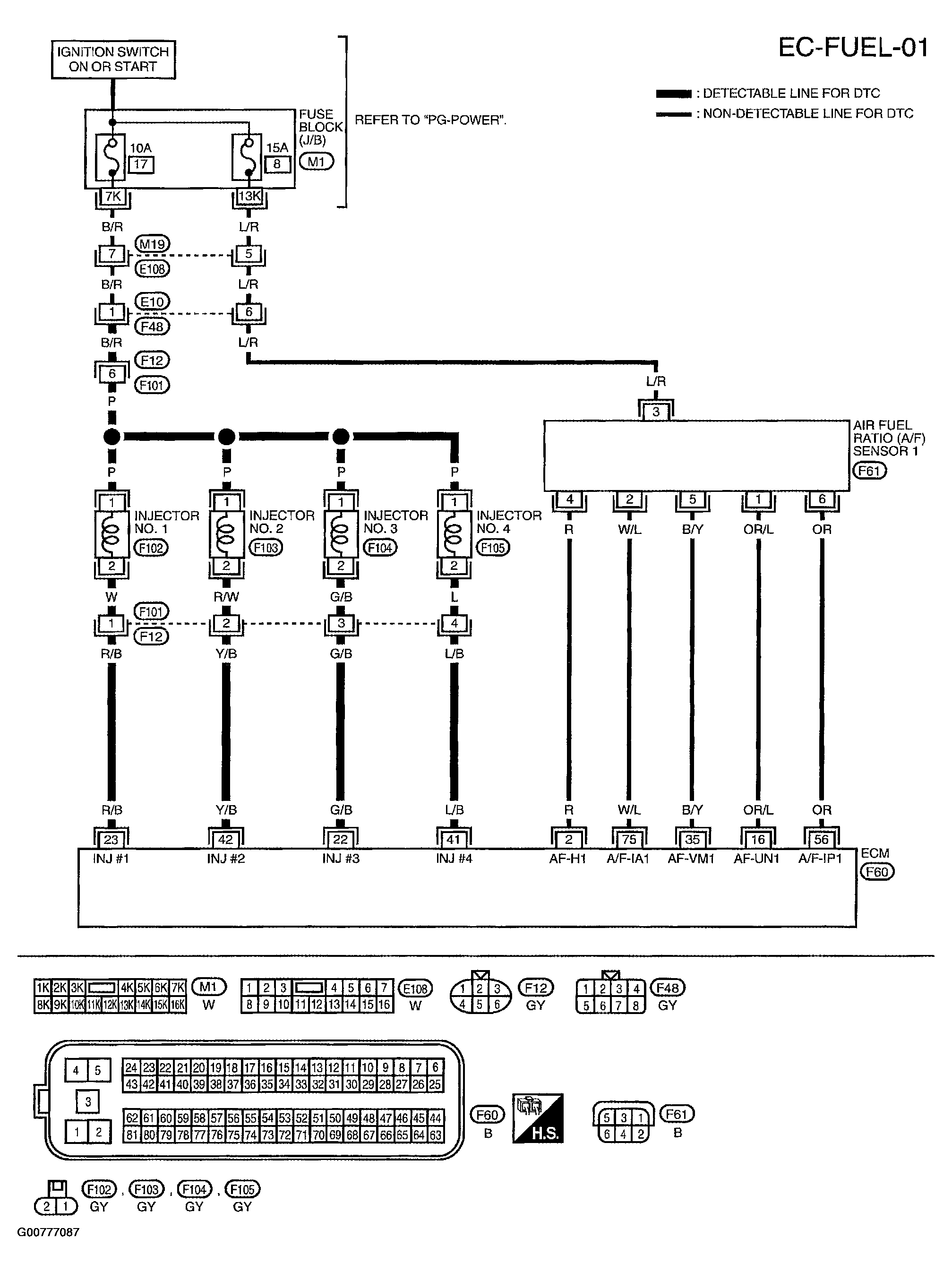

Fig 1: Fuel Injection System Wiring Diagram (A/T Models Except ULEV)
Courtesy of NISSAN MOTOR CO., U.S.A.
