DTC P0171: Fuel Injection System Function
›
Wiring Diagram
›
A/T Models ULEV And M/T Models
A/T Models ULEV And M/T Models

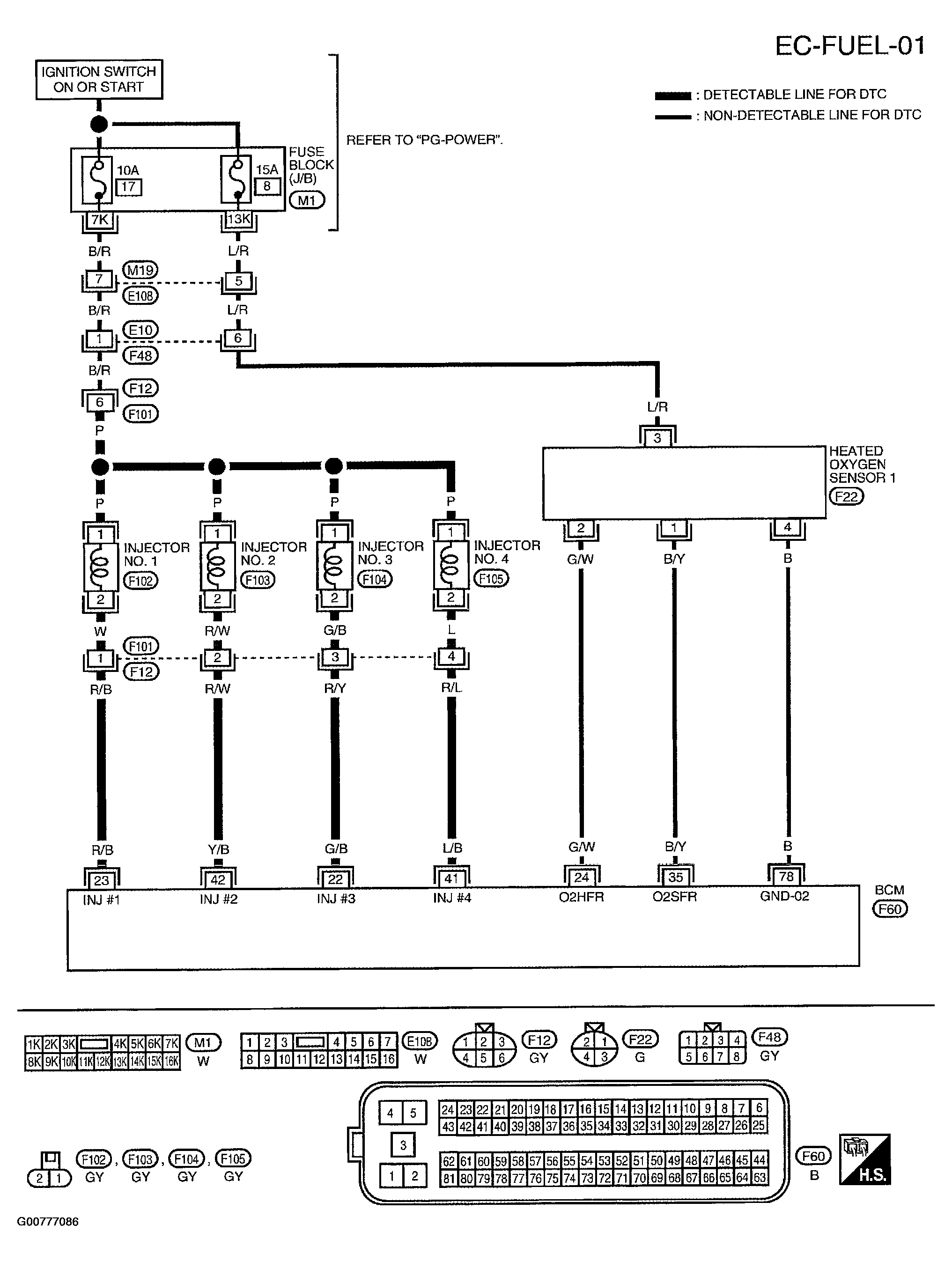

Fig 1: Fuel Injection System Wiring Diagram (A/T Models ULEV & M/T Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
