DTC P0507: ISC System
›
On Board Diagnosis Logic
On Board Diagnosis Logic

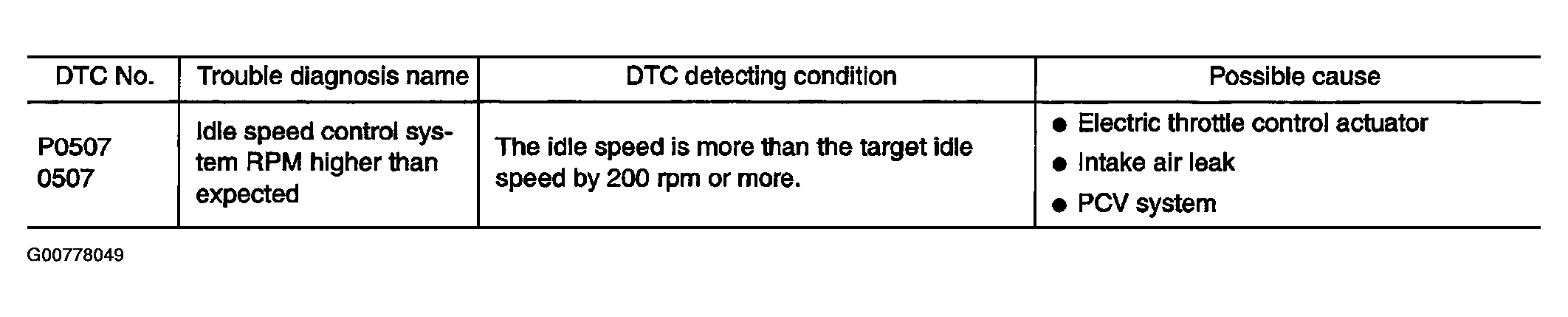

Fig 1: On Board Diagnosis Logic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
